Description
Product Overview
HIMatrix F35 (Part No. 982200416) is a compact all-in-one safety-related controller manufactured by HIMA Paul Hildebrandt GmbH under the HIMatrix series.
This unit integrates CPU processing unit and native I/O interfaces, executing safety interlock logic, trip protection, sequence control and condition monitoring. It supports SafeEthernet for networking with other safety controllers and communicates with plant DCS, SCADA and operator panels. Certified for hazardous area deployment, it is widely used in ESD, turbomachinery protection, burner management and chemical process safety systems.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | HIMatrix F35, 982200416 |
| Module Type | Compact Safety-Related Controller |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Applicable Platform | HIMatrix Distributed Safety System |
| Built-in I/O | 24 Digital Inputs, 8 Analog Inputs, 8 Digital Outputs, 2 high-speed counter channels |
| Communication Interfaces | Integrated Ethernet switch (10/100Base-T), serial communication terminals |
| Supported Protocols | SafeEthernet, Modbus TCP, Modbus RTU |
| Control Power | 24 VDC, 19.2 ~ 28.8 VDC wide range |
| Power Consumption | Max 12 W |
| Mounting | 35 mm DIN rail mounting |
| Safety Certification | IEC 61508 SIL3, IEC 61511, EN ISO 13849-1 PL e, Cat.4 |
| Hazardous Approval | ATEX Zone 2 / IECEx Zone 2 compliant |
| Operating Temperature | 0 ℃ ~ +60 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Grade | Housing IP20 |
| Engineering Software | SILworX / ELOP II Factory |
| Spare Part Status | OEM production discontinued; new surplus and refurbished units available |

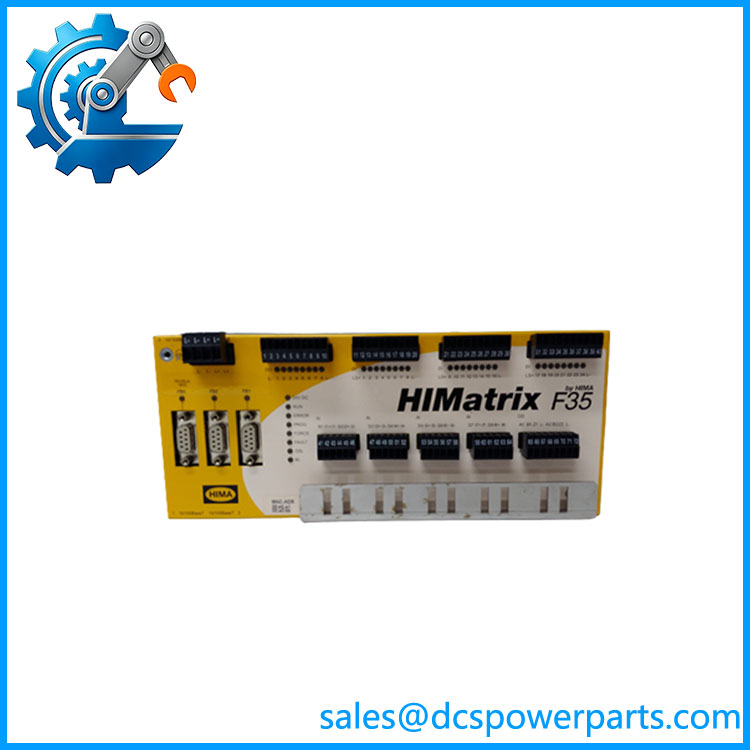

F35
Key Features
- Integrated CPU and multi-type I/O design, saving cabinet space for small and medium safety control cabinets
- High-speed safety logic execution to meet fast trip requirements of process safety systems
- Supports distributed safety network via SafeEthernet for multi-controller coordination
- Comprehensive hardware self-diagnosis for CPU, memory, I/O channel and communication faults
- Built-in event logging function for alarm and sequence-of-event storage after power failure
- Rugged metal housing, suitable for installation in petrochemical, power generation and offshore cabinets
- Multiple F35 controllers can be networked to build distributed safety instrumented systems
Important Reminder: Different part number variants cannot be directly interchanged; replacement requires matching full part number and re-downloading control program.
Application Scope
Petrochemical plant ESD emergency shutdown systems, thermal power plant boiler auxiliary safety control cabinets, oil & gas compressor safety instrumented racks, offshore platform machinery protection equipment, burner management systems, waste treatment safety interlock control, and maintenance & retrofit projects of legacy HIMA HIMatrix safety control systems.
