Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA |
| Model | F3237 |
| Order Number | 984323702 |
| Product Type | Safety Digital Input Module |
| Number of Inputs | 16 |
| Input Type | Digital / Discrete |
| Nominal Input Voltage | 24 VDC |
| Application | Safety-related control and monitoring |
| System Family | HIMA F-series / HIQUAD-era safety systems |
| Input Isolation | Group/channel isolation according to module architecture |
| Field Signals | E-stop, permissive, limit switch, trip, status contacts |
| Installation | HIMA safety-system rack |
| Condition | New Surplus or Fully Tested Refurbished |
Procurement caution: Publicly available references for older HIMA modules can contain inconsistent channel and electrical descriptions. For F3237 984323702, the complete nameplate, original HIMA system documentation, and installed rack configuration should be treated as the final authority before approving a replacement.
Application Scenarios & Pain Points
Safety digital inputs live in the part of the cabinet where wiring mistakes are expensive. A swapped pair of trip contacts may not show up as an obvious hardware fault; the logic can simply receive the wrong process state.
- Emergency shutdown systems: Digital signals from E-stop stations and shutdown contacts can be monitored by the safety controller.
- Process interlocks: Used for discrete permissives, valve-position feedback, motor status, and equipment interlocking.
- Turbomachinery protection: Suitable for discrete trip and equipment-status signals where the input participates in a safety function.
- Legacy HIMA system maintenance: A practical spare for plants maintaining installed F-series safety hardware instead of immediately migrating the entire system.
Field note: Before blaming the F3237, check the field voltage at the module terminals. A corroded terminal, blown loop fuse, or bad 0 V reference can make a healthy input channel look dead.

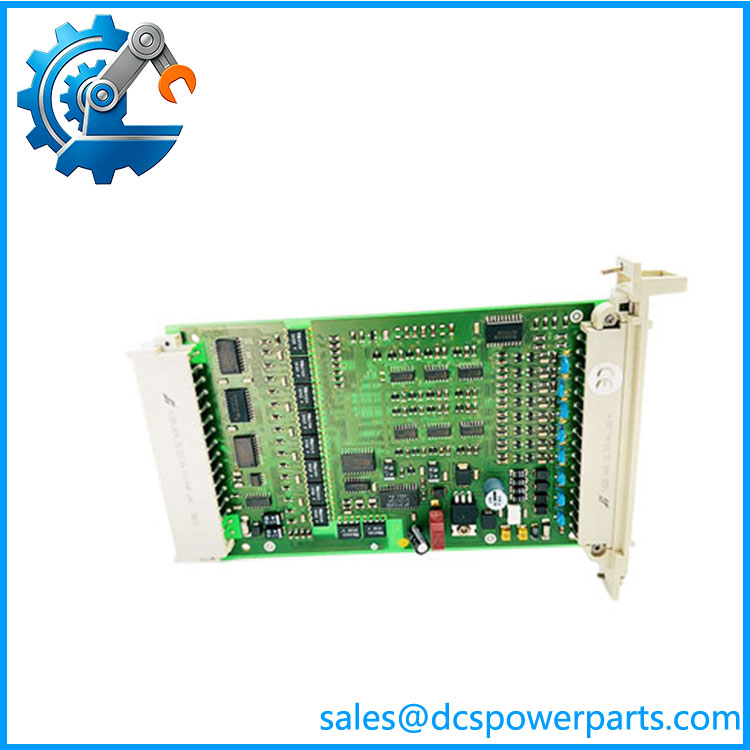

F3237
Related Products
- HIMA F3237 / 984323702 — Subject 16-channel digital input module for HIMA safety-system applications.
- HIMA F3236 — Related HIMA F-series digital I/O hardware. It may occupy a similar system position, but channel function and electrical characteristics must be verified before substitution.
- HIMA F3238 — Related F-series I/O designation. Treat it as a separate hardware configuration rather than assuming sequential models are interchangeable.
- HIMA F6217 / 984621702 — Safety-related analog input module. It complements F3237 when a safety application needs 4–20 mA or voltage transmitter signals instead of discrete contacts.
- HIMA F3330 — Related HIMA safety I/O module used for field signal interfacing. Its specific I/O function differs from the F3237.
- HIMA F7553 — HIMA communication/interface hardware supporting the safety-system architecture. It handles system communication rather than direct field digital input acquisition.
- HIMA F8652X — Safety controller hardware. It operates at the logic-solving level and is complementary to the field-input function.
- HIMA F8650X — Another HIMA safety-controller platform used in safety automation systems; not a direct replacement for the .
- HIMA F7126 — Related HIMA safety-system hardware that may appear in older installations. Functional compatibility must be confirmed from the system drawings and rack configuration.
The Engineer’s Guide: Field Pitfalls to Avoid
WARNING 1 — Do not assume every 24 VDC input card is interchangeable.
The nominal voltage is only one compatibility point. Input thresholds, isolation, diagnostics, terminal allocation, and safety architecture can differ.
How to avoid it: Match / 984323702 against the installed system documentation and verify the exact rack and terminal assignment before replacement.
WARNING 2 — Check field polarity and the 0 V reference.
A 24 VDC indication at the cabinet power supply does not prove that 24 VDC is actually reaching each input.
How to avoid it: Measure directly at the module termination points. Check both the positive signal and its associated 0 V return, then operate the field device while monitoring the corresponding channel.
WARNING 3 — Do not treat a safety input replacement as ordinary PLC I/O work.
A replacement card can physically fit while still having an incompatible hardware revision or application configuration.
How to avoid it: Record the existing module’s order number, hardware revision, rack position, terminal assignment, and controller diagnostics before removing it. Preserve the existing safety application/configuration whenever possible.
Frequently Asked Questions (FAQ)
What is HIMA 984323702?
HIMA 984323702 is a safety-system digital input module used for discrete field signal acquisition. The module is associated with HIMA’s older F-series safety automation hardware and is identified by the complete order number 984323702.
Typical signals include shutdown contacts, permissives, limit switches, equipment status, and other discrete safety-related inputs.
How many inputs does the have?
The is identified as a 16-channel digital input module.
The actual wiring arrangement should still be checked against the installed terminal documentation. Older HIMA systems can have cabinet-specific termination schemes, and a channel number on the engineering drawing should not be assumed from physical connector position alone.
Is a safety-rated module?
It is intended for use within HIMA safety-system architectures, but the safety rating of an installed function depends on the complete system configuration—not the module alone.
For a SIL-related application, verify the applicable HIMA safety manual, module revision, system architecture, proof-test requirements, and SIF documentation.
Can I replace 984323702 with another HIMA digital input card?
Not automatically.
Before approving an alternative, compare:
- Complete HIMA order number
- Hardware revision
- Input voltage and threshold
- Number of channels
- Isolation arrangement
- Diagnostics
- Terminal assignment
- Rack compatibility
- Safety certification
- Existing application configuration
A physically compatible card can still be electrically or functionally unsuitable.
What should I test on a refurbished ?
For a plant spare, I would request a channel-by-channel test rather than a simple power-up check:
- Verify / 984323702 identification.
- Inspect the PCB and connectors.
- Verify power consumption.
- Apply controlled 24 VDC input signals.
- Test all 16 channels.
- Confirm input-state indication.
- Check diagnostic behavior.
- Verify backplane/controller communication.
- Perform an extended operating test.
- Record hardware revision and test results.
That test history becomes especially valuable when the module is destined for a shutdown or emergency-trip circuit.
What are the main replacement risks for ?
The biggest risks are usually wrong hardware variant, incorrect field wiring, incompatible rack configuration, and unverified safety-system configuration.
Before installation, photograph the old module and terminal wiring, record every channel assignment, and verify the replacement’s complete order number. For a critical safety application, I would also perform a controlled functional test before returning the system to service.
