Foxboro FCP270 P0917YZ | 100 Mbps Controller | Foxboro DCS Upgrade

Description

Foxboro FCP270 P0917YZ | Field Control Processor | I/A Series DCS

Key Technical Specifications

Schneider Electric’s current FCP270 specification identifies the processor as an AMD Elan 520 running at 100 MHz, with 16 MB SDRAM and 32 MB flash. It supports 200 Series FBMs over a 2 Mbps HDLC fieldbus and 100 Series FBMs at 268 kbps.

Product Introduction

The Foxboro FCP270 P0917YZ is a distributed Field Control Processor for Foxboro I/A Series and Foxboro Evo DCS architectures. It executes regulatory, logic, timing, and sequential control while handling data acquisition and alarm processing for connected Fieldbus Modules. The controller communicates with the Foxboro control network through 100 Mbps Ethernet and with field I/O through the local HDLC fieldbus.

The FCP270 can operate as a simplex controller or as part of a fault-tolerant pair. In the redundant arrangement, two modules occupy adjacent positions on a supported baseplate and communicate with each other through the dedicated high-speed connection.

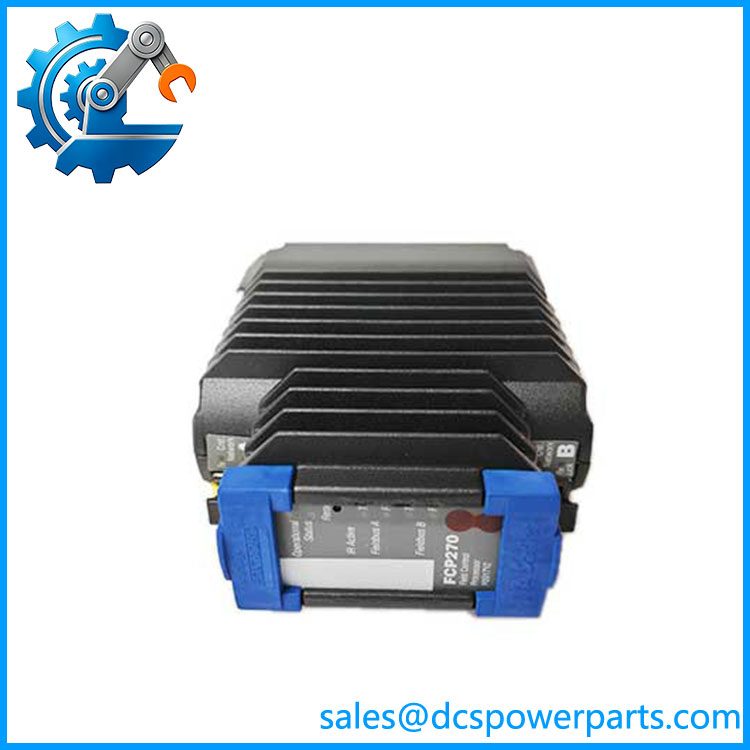

FCP270 P0917YZ

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

The is a controller-level component, so a failure can affect an entire group of process I/O rather than a single measurement point. A replacement must therefore be checked against the installed FBM architecture, control strategy, software revision, Letterbug configuration, fieldbus arrangement, and redundancy scheme.

Typical Applications

• Foxboro I/A Series DCS process-control cabinets
• Foxboro Evo distributed control systems
• Process plants using 200 Series Fieldbus Modules
• Legacy installations requiring fault-tolerant controller pairs
• DCS migration systems incorporating existing 100/200 Series FBMs

Technical Pitfalls to Avoid

1. Do not confuse the with an I/O module.
   P0917YZ is the Field Control Processor, while FBM modules provide the actual field I/O interfaces. Schneider documentation specifically states that there are no direct customer field-circuit connections to the FCP; field connections are made through the associated termination assemblies.
2. Do not assume every P0917YZ can immediately form a redundant pair.
   Fault-tolerant operation requires two processor modules installed in supported adjacent positions, together with the appropriate baseplate and system configuration. The control software and hardware revisions should also be checked before pairing a replacement with an existing controller.
3. Check the actual I/O loading before changing controller hardware.
   The supports different capacities depending on whether the installation uses 100 Series or 200 Series FBMs, scan periods, and FEM100 fieldbus expansion. Schneider specifies up to 32 200 Series FBMs in one basic configuration, while other arrangements have higher theoretical capacity subject to sizing constraints.

Related Products

• Foxboro FCP280 — Newer Field Control Processor generation; migration requires checking software and system compatibility rather than assuming a drop-in replacement.
• Foxboro ZCP270 — Control Processor 270 used in architectures where control processing is separated from fieldbus interfaces.
• Foxboro FEM100 — Fieldbus Expansion Module used to expand the fieldbus capacity of installations.
• Foxboro FCM100Et — Fiber-optic communications module used in certain extended fieldbus architectures.
• Foxboro FCM100E — Ethernet/fiber fieldbus communication interface for distributed FBM architectures.
• Foxboro FBM201 — 200 Series analog input interface module.
• Foxboro FBM204 — 200 Series 0–20 mA I/O interface module.
• Foxboro FBM205 — Redundant 0–20 mA I/O interface module.
• Foxboro FBM206 — Pulse input interface module.
• Foxboro P0926HF / P0926HJ / P0926HZ — /FBM modular baseplate variants; exact baseplate selection depends on the installed controller and I/O arrangement.

Procurement Check

Before approving a Foxboro P0917YZ replacement, verify:

• Exact processor designation:
• Part number:
• Existing I/A Series or Foxboro Evo system generation
• hardware revision
• Control software and firmware revision
• Letterbug configuration
• Simplex or fault-tolerant architecture
• baseplate model
• 100 Mbps Ethernet/fiber network arrangement
• 100 Series versus 200 Series FBM configuration
• 2 Mbps or 268 kbps fieldbus requirements
• FEM100 expansion, if installed
• Existing control strategy and database
• Power-supply redundancy
• Hazardous-area certification requirements

Recommended procurement description:

Foxboro Field Control Processor, I/A Series / Foxboro Evo DCS, AMD Elan 520 100 MHz Processor, 16 MB SDRAM, 32 MB Flash, 100 Mbps Ethernet Control Network, 2 Mbps HDLC Fieldbus.

The key point is that is a DCS field controller, not a field I/O card. The controller’s compatibility is determined by the complete Foxboro architecture around it—baseplate, FBMs, fieldbus speed, control software, Letterbug, and redundancy configuration—not by the part number alone. Schneider Electric still identifies specifically as the in its current product specification and certification documentation.
