Foxboro P0914SV FBM203 | Platinum Nickel RTD Input Module with Channel Isolation

Description

Key Technical Specifications

Product Introduction

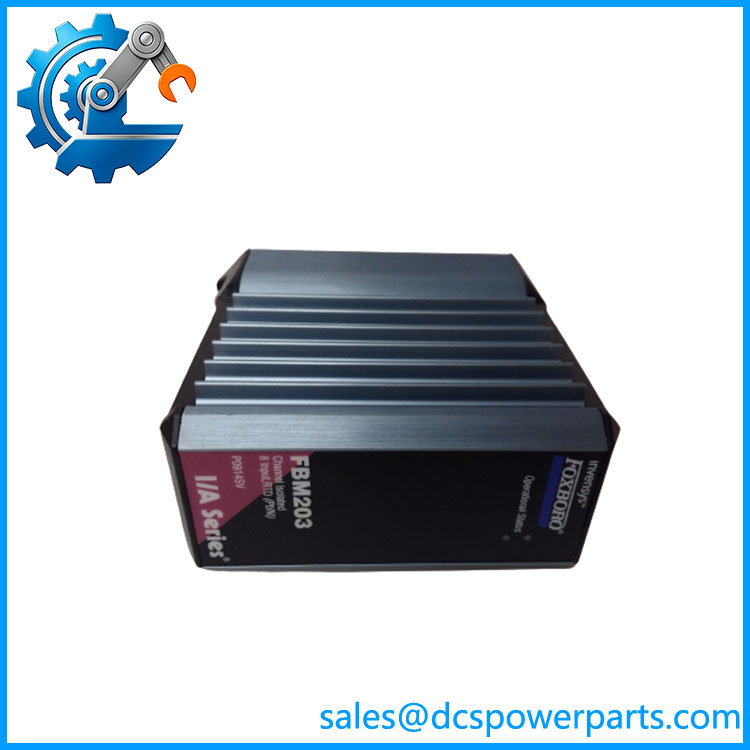

Foxboro FBM203 P0914SV Overview

The Foxboro FBM203 P0914SV is an 8-channel isolated RTD input module designed for Foxboro I/A Series distributed control systems. It receives resistance temperature detector signals from field sensors and performs signal conversion before transferring temperature data through the redundant fieldbus network.

The Foxboro FBM203 P0914SV is used in process plants where accurate temperature monitoring is required across multiple measurement points. Independent channel isolation, sigma-delta conversion, and support for common RTD sensor types make it suitable for continuous process applications, but replacement requires checking termination assemblies, field wiring, and I/A Series database configuration.

FBM203–P0914SV

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A reactor temperature loop begins showing unstable readings after years of operation. The RTD sensor tests correctly. The transmitter is not the issue. The problem may be inside the DCS input path.

RTD modules are often exposed to long cable runs, grounding differences, cabinet temperature changes, and maintenance activity. A failed input channel can look like a sensor problem if the entire measurement chain is not checked.

The FBM203 P0914SV handles the interface between field temperature sensors and the I/A Series control system. Accurate installation matters.

Typical Applications

• Chemical Processing Plants – Reactor temperature monitoring, jacket temperature control, and process safety measurement.
• Oil & Gas Facilities – Compressor temperature monitoring, pump bearing temperature measurement, and process equipment supervision.
• Power Generation – Turbine auxiliary temperature monitoring, cooling system measurement, and equipment protection inputs.
• Pharmaceutical Manufacturing – Batch process temperature monitoring and environmental process control.

Technical Pitfalls to Avoid

1. Verify RTD Type and Resistance Range

   The standard FBM203 supports a 0 to 320Ω input range. Confirm the installed RTD type before replacement. A mismatch between sensor characteristics and module configuration will produce incorrect temperature values.

2. Check Termination Assembly Compatibility

   The uses dedicated termination assemblies and cables. Confirm the existing TA type and cable connection before removing the original module.

3. Inspect RTD Wiring Configuration

   Two-wire and three-wire RTD connections have different lead resistance effects. Incorrect wiring can introduce measurement errors even when the input module is operating normally.

Related Products

• Foxboro FBM203b P0922UA
  Higher resistance-range RTD input variant supporting 0 to 640Ω sensors. Used for applications requiring extended RTD measurement range.
• Foxboro FBM203c P0922UD
  RTD input variant designed for lower resistance sensors, supporting 0 to 30Ω copper RTD applications.
• Foxboro FBM203d P0927AM
  Four-wire RTD input version designed for improved lead resistance compensation in precision temperature measurement applications.
• Foxboro FBM202 P0914ST
  Thermocouple and millivolt input module used for temperature measurement applications where thermocouples are installed instead of RTDs.
• Foxboro FBM201 P0914SQ
  Analog input module for standard process signals such as voltage and current measurement.
• Foxboro FBM204 P0916AA
  Analog output module used for sending control signals from the I/A Series system to field devices.
• Foxboro FCM10E Fieldbus Communication Module
  Communication interface module connecting I/A Series Fieldbus Modules with system controllers.
• Foxboro I/A Series 200 Fieldbus Baseplate
  Hardware platform that houses FBM modules and provides power and fieldbus connections.
