Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Foxboro |
| Model | FBM207B |
| Part Number | P0914WH |
| Product Type | Discrete Contact Input Module |
| System Platform | Foxboro I/A Series DCS |
| Input Channels | 16 isolated inputs |
| Input Function | 24VDC contact sensing |
| Contact Input Voltage | 24VDC ±15% |
| Input Current | Approx. 3.2mA short-circuit current |
| Logic ON Resistance | Maximum 1kΩ |
| Logic OFF Resistance | Minimum 100kΩ |
| Channel Isolation | Galvanic isolation between channels and ground |
| Communication Interface | Redundant 2Mbps Module Fieldbus |
| Power Supply | 24VDC (+5% / -10%) |
| Power Consumption | Approx. 5W maximum |
| Filtering | Configurable 4ms, 8ms, 16ms, 32ms |
| Pulse Detection | Up to 250Hz |
| Mounting | I/A Series modular baseplate |
| Operating Temperature | -20°C to +70°C |
| Humidity | 5–95% RH non-condensing |
Product Introduction
Foxboro FBM207B P0914WH Overview
The Foxboro FBM207B P0914WH is a 16-channel isolated contact input module designed for Foxboro I/A Series distributed control systems. It receives discrete signals from field switches, motor status contacts, alarms, and equipment interlocks, then communicates the processed input states through the module Fieldbus network.
The Foxboro FBM207B P0914WH is commonly used in process plants requiring reliable digital status monitoring. Its isolated input channels reduce the impact of field wiring faults and electrical interference, while its support for redundant installation helps maintain availability in critical control applications. Replacement requires checking the termination assembly and existing I/A Series configuration before commissioning.

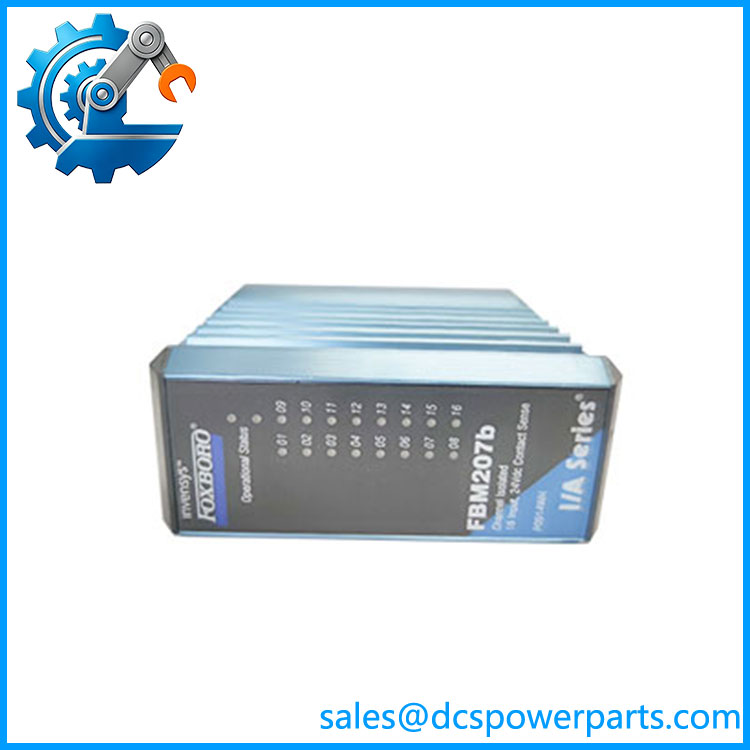

FBM207B P0914WH
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A compressor package trips unexpectedly. The controller is running, but several permissive signals appear incorrect at the operator station.
This is a common field situation with older DCS installations. Digital input problems are not always caused by the input card itself. Loose terminal connections, incorrect contact voltage, failed field switches, and mismatched termination assemblies can all create the same symptom.
The FBM207B P0914WH is the point where physical equipment status becomes a DCS signal. Small installation details matter.
Typical Applications
- Oil & Gas Facilities – Motor running feedback, valve limit switches, shutdown permissives, and equipment alarms.
- Chemical Processing Plants – Pump status monitoring, process interlocks, and safety-related discrete signals.
- Power Generation Plants – Breaker status, auxiliary equipment monitoring, and turbine package indications.
- Water Treatment Systems – Pump operation feedback, level switches, and remote equipment status monitoring.
Technical Pitfalls to Avoid
- Verify Contact Voltage Compatibility
The FBM207B is designed for 24VDC contact sensing. Do not assume compatibility with 48VDC or AC field devices without confirming the correct module and termination assembly.
- Confirm Termination Assembly Selection
The termination assembly defines the field connection method. Replacing only the module without checking the installed TA can lead to wiring or signal problems.
- Check Input Filtering Settings
Fast-changing signals and mechanical contacts may require proper debounce filtering. Incorrect settings can create false alarms or missed status changes.
Related Products
- Foxboro FBM207 P0914TD
Original FBM207 voltage monitor input module. Designed for 15–60VDC switch monitoring applications rather than dedicated 24VDC contact sensing. - Foxboro FBM207C P0917GY
48VDC contact sense version of the FBM207 family. Used where field devices operate at higher DC voltage levels. - Foxboro FBM216
Discrete input module family for I/A Series systems. Used for different digital signal acquisition requirements. - Foxboro FBM217 RH914TR
Higher-density discrete input module with 32 channels for applications requiring more digital status points. - Foxboro FBM203 P0914SV
RTD input module for temperature measurement applications. Used when analog resistance signals are required instead of discrete contacts. - Foxboro FBM201 P0914SQ
Analog input module for standard process signals such as current and voltage transmitters. - Foxboro FCM10E
Fieldbus communication module that connects FBM modules to Foxboro control processors. - Foxboro I/A Series 200 Baseplate Assembly
Hardware platform providing module mounting, power distribution, and Fieldbus connections for FBM modules.
