Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | FOXBORO |
| Model | FBMSVL |
| Product Type | Valve Position Control Card / Servo Valve Controller |
| Control Application | Closed-loop pneumatic or hydraulic servo-valve control |
| Command Input | 4–20 mA or 0–10 VDC |
| Feedback Input | LVDT 0–10 V signal or pressure transmitter 4–20 mA |
| Servo-Valve Output | Up to 0–350 mA |
| Valve Position Output | 4–20 mA or 0–20 mA |
| Position Output Impedance | 50 Ω |
| External Supply | ±15 VDC |
| LVDT Function | Integrated LVDT modulation/demodulation |
| Drive Current Reference | 50 mA stated for the LVDT-related circuitry |
| Adjustment | Zero/full-scale adjustment; P adjustment for feedback loop |
| Input Selection | S2 switch selects current or voltage command |
| Typical Role | DEH/servo-valve position control |
The detailed published description supports these control and signal characteristics.
Important: I would not use the frequently published claims of FOUNDATION Fieldbus H1, four ports, or 31.25 Mbps as specifications for this FBMSVL without further documentation. Those descriptions conflict with the much more specific valve-control electrical description.
Application Scenarios & Pain Points
A valve-position controller sits in an unforgiving part of the plant. If its command, feedback, or servo-current loop is wrong, the resulting symptom can look like a governor fault, actuator problem, or hydraulic issue.

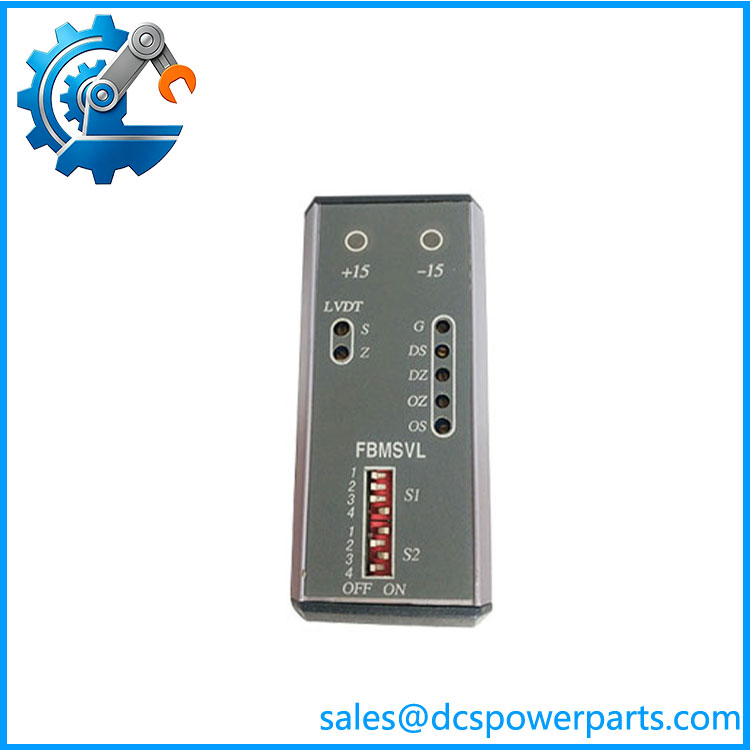

FBMSVL
Typical Applications
- Steam Turbine Control: FBMSVL can be used in closed-loop valve positioning where a DEH command is compared with LVDT or pressure feedback and converted into servo-valve drive current.
- Hydraulic Servo Systems: Suitable for applications where the controller must regulate a hydraulic actuator through a proportional servo valve.
- Pneumatic Valve Positioning: The same control concept applies to pneumatic actuators where feedback is available for closed-loop positioning.
- Legacy Turbine Automation: A useful maintenance spare where an existing control cabinet still relies on this dedicated valve-position loop rather than a modern integrated controller.
Field Case:
A turbine may show unstable valve position even though the DEH command remains steady. Before replacing the governor, an engineer should compare the command signal, feedback signal, and FBMSVL servo output. If the command and feedback are correct but the drive current is abnormal, the FBMSVL becomes a much more credible suspect.
Related Products
- FOXBORO FBMSVH — Related Foxboro valve-control hardware frequently listed alongside FBMSVL. It belongs to the same general valve-control application family, but the exact electrical function and compatibility should be confirmed from the installed cabinet documentation.
- FOXBORO FBM230 P0926GU — Foxboro I/O module used for process-control signal handling. Unlike FBMSVL, it should not be treated as a dedicated servo-valve position controller.
- FOXBORO FCP270 P0917YZ — Foxboro control processor used in I/A Series systems. It provides higher-level control processing rather than directly supplying the FBMSVL servo-valve drive current.
- FOXBORO DCM10E P0926DJ — Fieldbus communication module. Its communication role is fundamentally different from FBMSVL’s closed-loop valve-control function.
- FOXBORO 3700A — Analog-input hardware used for process measurement. It can complement a valve-control system by providing process measurements, but it is not a substitute for FBMSVL.
- FOXBORO 3706A — Thermocouple input module for temperature measurement. Useful upstream in a temperature-control loop, while FBMSVL handles the final servo-valve interface.
- FOXBORO P0914 — Supporting baseplate reference associated with FBMSVL/FBMSVH listings. Verify the exact mechanical and electrical base arrangement before ordering.
