Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Foxboro (Schneider Electric) |
| Model | FBM217 |
| Part Number | RH914TR |
| Product Type | Discrete Input Module |
| System Platform | Foxboro I/A Series / Foxboro Evo DCS |
| Input Channels | 32 discrete inputs |
| Input Type | Voltage monitoring / contact sensing |
| Supported Input Levels | 15–60VDC, 120VAC/125VDC, 240VAC (depending on termination assembly) |
| Communication Interface | 2 Mbps Module Fieldbus |
| Fieldbus Connection | Redundant A/B communication paths |
| Input Current | Approx. 2.2mA at 30VDC input |
| Input Filtering | Configurable: 0, 4, 8, 16, 32ms |
| Pulse Counting | Up to 250Hz |
| Power Supply | 24VDC (+5% / -10%) |
| Power Consumption | Approx. 3W maximum |
| Mounting | 200 Series modular baseplate |
| Redundancy Support | Yes, with appropriate redundancy adapter |
| Operating Temperature | -20°C to +70°C |
| Humidity | 5–95% RH non-condensing |
Product Introduction
Foxboro FBM217 RH914TR Overview
The Foxboro FBM217 RH914TR is a 32-channel discrete input module designed for Foxboro I/A Series distributed control systems. It collects digital signals from field devices such as limit switches, motor status contacts, alarms, and interlock signals, then communicates the input status through the DCS fieldbus network.
The Foxboro FBM217 RH914TR is commonly installed in process plants where high-density digital monitoring is required. The module supports single or redundant configurations and works with multiple termination assemblies to match different field voltage requirements. Replacement requires checking the existing termination assembly because the module alone does not define the final field input voltage range.

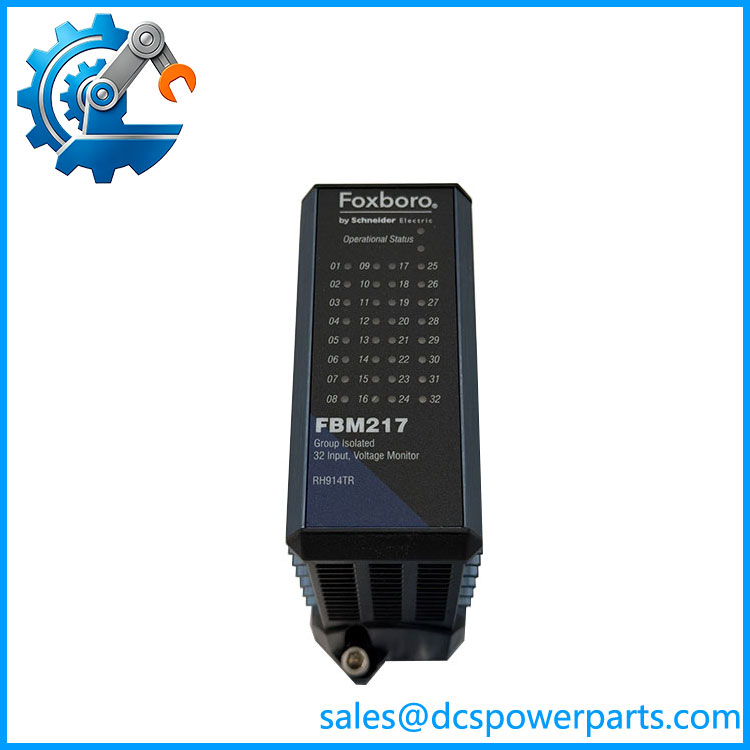

FBM217 RH914TR
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A compressor package trips unexpectedly, but the controller diagnostics show no obvious failure. The motor starter feedback, emergency shutdown contacts, and permissive signals all appear inconsistent.
This type of issue often leads engineers toward logic troubleshooting first. In reality, a failed digital input channel, incorrect termination assembly, or degraded field wiring can create misleading symptoms inside the DCS.
The FBM217 RH914TR is responsible for bringing real-world switching signals into the control system. Small wiring mistakes can become large operational problems.
Typical Applications
- Oil & Gas Facilities – Motor running feedback, shutdown permissives, valve limit switches, and equipment alarms.
- Chemical Processing Plants – Reactor interlocks, pump status monitoring, and safety system signal collection.
- Power Generation – Breaker status, auxiliary equipment monitoring, and turbine package digital inputs.
- Water Treatment Plants – Pump operation feedback, level switch monitoring, and remote equipment status.
Technical Pitfalls to Avoid
- Verify Termination Assembly Before Replacement
The FBM217 supports different field signal ranges through dedicated termination assemblies. Replacing the module without confirming the TA can result in incorrect voltage compatibility.
- Check Input Logic Levels
Confirm the field device switching voltage and expected logic thresholds. A contact that appears electrically closed may not provide the required input level.
- Review Redundancy Configuration
In redundant installations, adjacent module positions and the correct redundancy adapter must be maintained. Incorrect placement can prevent proper failover operation.
