Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | FOXBORO |
| Model | 873EC-JIPFGZ |
| Product Type | Electrodeless Conductivity Analyzer |
| Series | 873EC |
| Measurement Method | Toroidal / Inductive conductivity measurement |
| Measured Variables | Conductivity, solution concentration, temperature compensation |
| Sensor Type | Electrodeless conductivity sensor |
| Power Supply | 100 VAC, 50/60 Hz |
| Output Signal | Isolated 4–20 mA DC |
| Display Units | μS/cm, mS/cm, % concentration |
| Temperature Compensation | Automatic temperature compensation |
| Enclosure | Plastic panel mounting |
| Certification | FM ordinary locations |
| Installation Type | Panel mounting |
| Communication | Analog process output |
| Application | Process analysis and DCS monitoring |
Product Introduction

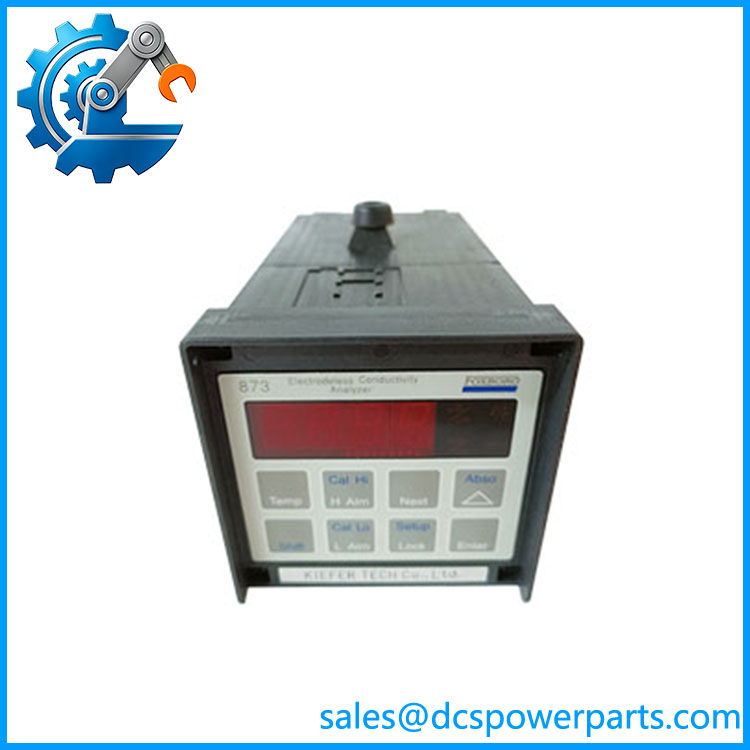

FOXBORO 873EC-JIPFGZ Overview
The FOXBORO 873EC-JIPFGZ is an electrodeless conductivity analyzer designed for industrial process measurement applications where reliable conductivity monitoring is required. It belongs to the FOXBORO 873EC analyzer family and is used to measure the conductivity of aqueous solutions while providing a proportional isolated output signal for integration with control systems.
The FOXBORO 873EC-JIPFGZ uses toroidal conductivity measurement technology, where the sensor detects the electrical characteristics of the process liquid without direct electrode contact. This design is suitable for applications involving aggressive chemicals, high conductivity solutions, or fluids where conventional contacting electrodes may experience fouling or maintenance issues.
The FOXBORO 873EC-JIPFGZ provides a 4–20 mA isolated output signal, allowing connection to industrial PLC, DCS, and process monitoring systems. The analyzer also measures solution temperature and applies automatic temperature compensation to improve measurement consistency across changing process conditions.
The FOXBORO 873EC-JIPFGZ is configured with a 100 VAC power supply option, isolated current output, plastic panel enclosure, and FM ordinary location certification. These configuration details are important when replacing existing analyzer equipment because similar 873EC models may differ in power supply, enclosure type, output format, and certification options.
The FOXBORO 873EC-JIPFGZ is commonly installed in chemical processing plants, water treatment facilities, and industrial utility systems where conductivity measurement is used for concentration control, contamination detection, or process quality monitoring.
When replacing a FOXBORO 873EC-JIPFGZ, engineers should verify the sensor type, cell constant configuration, power supply rating, analog output scaling, panel dimensions, and existing DCS input configuration. Conductivity analyzers depend on both transmitter configuration and sensor characteristics, so matching only the model number may not be sufficient.
873EC-JIPFGZ
Application Scenarios & Field Considerations
Engineering Pain Point
A conductivity monitoring loop reports:
- Incorrect conductivity readings
- Unstable analog output
- Temperature compensation errors
- Sensor communication issues
- Process concentration deviation
The analyzer may be involved, but other possible causes include:
- Contaminated sensor
- Incorrect sensor installation
- Damaged cable
- Wrong cell configuration
- Incorrect DCS scaling
Recommended troubleshooting steps:
- Verify sensor condition
- Check analyzer configuration
- Confirm 4–20 mA scaling
- Inspect wiring connections
- Verify temperature input
- Compare readings with a reference instrument
The FOXBORO 873EC-JIPFGZ provides the measurement interface, but final process accuracy depends on the complete analyzer and sensor installation.
Typical Applications
Chemical Processing
Used for:
- Acid and caustic concentration monitoring
- Chemical solution control
- Process quality measurement
Water Treatment Systems
Applied for:
- Purity monitoring
- Conductivity control
- Treatment process verification
Pharmaceutical Manufacturing
Used for:
- Cleaning solution monitoring
- Utility water analysis
- Process validation support
Industrial Utilities
Applied for:
- Boiler water monitoring
- Cooling water analysis
- Contamination detection
Technical Pitfalls to Avoid
1. Verify Sensor Compatibility
Before replacement, confirm:
- Toroidal sensor model
- Sensor cable type
- Installation arrangement
- Measurement range
The transmitter and sensor must be correctly matched.
2. Check Output Configuration
Verify:
- 4–20 mA scaling
- Output isolation
- DCS analog input range
- Alarm settings
Incorrect scaling can produce incorrect process values.
3. Confirm Power Supply Version
Check:
- 100 VAC requirement
- Existing panel wiring
- Replacement analyzer configuration
Different 873EC variants may use different power options.
4. Review Calibration Parameters
Before commissioning:
- Record existing settings
- Verify conductivity range
- Check temperature compensation parameters
- Confirm process concentration curves
