Description
Product Features
The FBM242 (IRA242) is a high-reliability isolated relay output module developed by Foxboro, serving as a core distributed I/O control component for the I/A Series industrial automation system. Designed for safe switching, alarm output and equipment interlock control in process industries, it provides isolated contact output signals for field actuators, alarm devices and safety interlock loops. With excellent electrical isolation performance and industrial-grade stability, it ensures safe and reliable logic switching control in complex and harsh industrial process environments.
1. Full-channel Electrical Isolation Design: Adopts independent electrical isolation for each output channel, which effectively eliminates signal crosstalk, ground interference and surge impact between channels. It provides reliable electrical isolation between the control system side and the field equipment side to protect system circuits.
2. High-reliability Relay Switching Performance: Equipped with high-quality industrial-grade relay contacts, featuring strong load capacity, stable switching action and long service life. It supports frequent logic switching output and can adapt to long-term continuous operation requirements of industrial interlock and alarm loops.
3. Flexible Logic Output Configuration: Supports customizable output logic states, delay parameters and linkage modes. It can flexibly match process control interlock, fault alarm, equipment start-stop linkage and other working scenarios to meet diversified industrial control logic requirements.
4. Complete Intelligent Self-diagnosis Function: Built-in module hardware self-check, relay state monitoring and circuit fault diagnosis mechanism. It can automatically detect abnormal working conditions such as circuit overload, relay failure and signal abnormality, and upload fault information to the upper control system in real time for rapid troubleshooting.
5. Excellent Industrial Environmental Adaptability: Adopts reinforced industrial circuit design and anti-interference shielding technology, with strong resistance to electromagnetic interference, temperature fluctuation and humid and dusty environments. It supports 24/7 stable operation in chemical, power and petrochemical industrial sites.
6. Seamless System Compatibility: Perfectly compatible with Foxboro I/A Series DCS systems, realizing stable data communication and logic control docking. It supports unified configuration and management through upper configuration software, with simple debugging and convenient operation and maintenance.
7. Standard Modular Installation: Adopts standard modular rail installation structure, with compact size and easy layout. It supports fast on-site installation and replacement, effectively reducing system construction and maintenance costs.

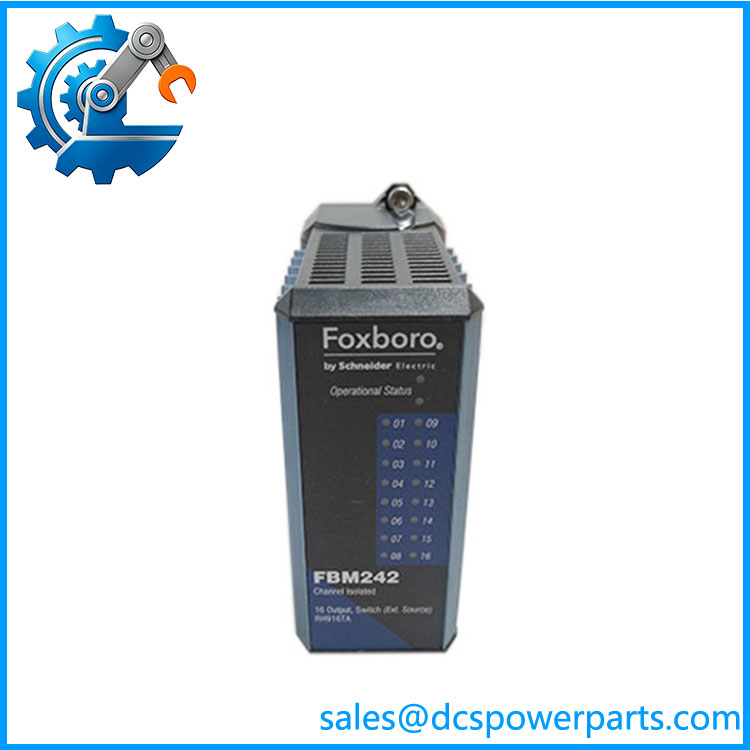

FBM242
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
FBM242 / IRA242
|
|
Brand
|
Foxboro
|
|
Product Type
|
Isolated Relay Output Module
|
|
Applicable System
|
Foxboro I/A Series DCS System
|
|
Channel Characteristics
|
Multi-channel isolated relay output, independent channel control
|
|
Output Type
|
Dry contact relay switching output
|
|
Contact Load Capacity
|
Industrial standard relay contact load, suitable for field alarm and interlock loop
|
|
Isolation Performance
|
Channel-to-channel isolation, system-to-field electrical isolation
|
|
Core Functions
|
Logic switching output, field alarm drive, equipment safety interlock, state signal feedback
|
|
Communication Mode
|
DCS system bus communication, supporting upper computer configuration management
|
|
Power Supply
|
24VDC Industrial Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Installation Method
|
Standard Industrial Rail Mounting
|
|
Self-diagnosis Function
|
Module hardware self-check, relay state monitoring, circuit fault alarm feedback
|
|
Industrial Standard
|
Compliant with industrial EMC anti-interference and process automation safety standards
|
Product Usage Method
1. Pre-installation Inspection: Inspect the FBM242 (IRA242) module appearance, terminal ports and internal circuit structure to confirm no damage, oxidation or loose components. Verify the compatibility with Foxboro I/A Series DCS system and on-site interlock equipment to meet industrial logic control requirements.
2. Static Protection Operation: Complete installation in a dry, dust-free and static-proof industrial environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging internal precision circuits and relay components of the module.
3. Module Installation & Fixation: Install the module on the standard industrial guide rail stably, adjust the fixed buckle to ensure firm installation and no looseness. Avoid module displacement and signal abnormality caused by on-site equipment vibration.
4. Field Wiring Connection: Connect 24VDC power supply cables, DCS system communication cables and field equipment interlock output cables in strict accordance with official wiring specifications. Distinguish power terminals, signal terminals and relay output terminals to prevent wrong wiring and short-circuit faults.
5. System Parameter Configuration: After confirming correct wiring, log in to the Foxboro dedicated configuration software. Set channel output logic, trigger conditions, delay parameters and interlock linkage rules according to on-site process control requirements, then download and save all configuration data.
6. Function Debugging & Verification: Start the system self-diagnosis program to check module communication status, power supply state and relay working state. Simulate control trigger signals to verify the accuracy and stability of relay switching output and interlock action.
7. Online Operation & Daily Maintenance: After passing debugging and testing, put the module into long-term online operation. Regularly check module operating temperature, wiring tightness and relay action state, clean dust periodically, and back up configuration files to ensure stable and reliable operation of the process interlock control system.
Product Application Fields
1. Petroleum & Chemical Industry: Widely used in petrochemical, chemical fertilizer and refining process control systems. It is responsible for process parameter over-limit alarm output, pipeline pump and valve equipment interlock protection, ensuring safe and stable operation of chemical production processes.
2. Power Industry: Applied in thermal power and new energy power plant DCS control systems, undertaking equipment fault alarm signal output, auxiliary unit start-stop linkage and safety interlock switching control of power generation units.
3. Metallurgy & Building Materials Industry: Suitable for process control and safety interlock systems of steel, cement and building material production lines, realizing alarm prompt and equipment protection linkage for abnormal production parameters.
4. Water Treatment & Environmental Protection Industry: Used for logic control and alarm output of sewage treatment equipment, dosing system and environmental protection monitoring equipment, supporting automatic operation and fault early warning of environmental protection systems.
5. Industrial Intelligent Process Control System: As an important isolated relay output component of Foxboro DCS system, it is widely used in various industrial automated production sites, providing stable and safe logic switching guarantee for process automation control and equipment safety protection.
