Foxboro L0130AD L0130AE-0H | 2-Channel Isolated Signal Module

Description

Product Overview

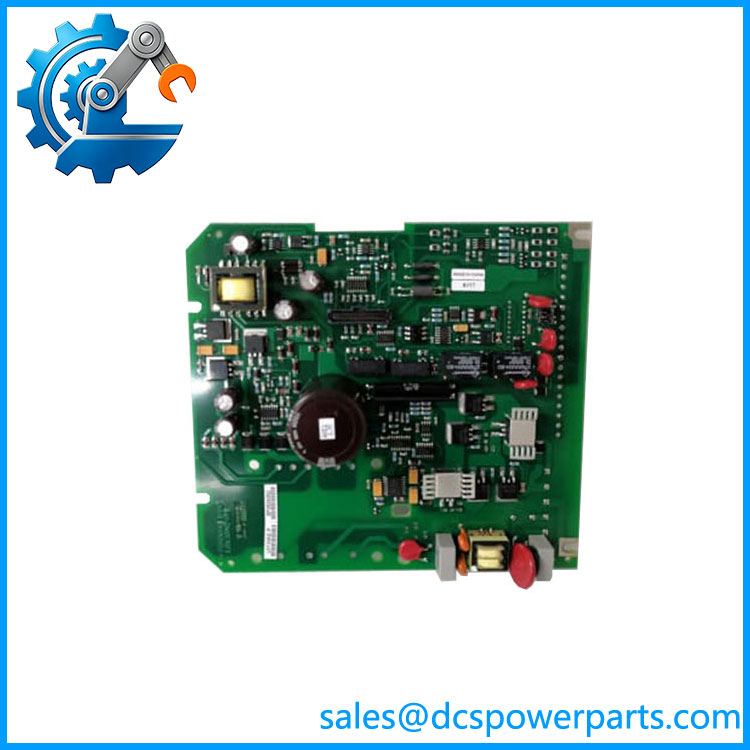

The Foxboro L0130AD L0130AE-0H is an analog input interface module designed for Foxboro I/A Series distributed control systems. The module provides field signal acquisition by converting analog process measurements into digital information used by the DCS control application. The Foxboro L0130AD L0130AE-0H is typically installed in compact control cabinets, remote measurement locations, and specialized process skids where reliable field signal collection is required without expanding a traditional I/O rack configuration.

The Foxboro L0130AD L0130AE-0H family supports isolated analog measurement functions for industrial process variables such as pressure, flow, temperature, and level. The L0130AD configuration is commonly associated with current loop measurement applications, while the L0130AE-0H variant is used for voltage-based measurement requirements. Depending on the installed application, these modules provide signal conditioning, electrical isolation, and diagnostic capability for maintaining accurate process data acquisition.

The Foxboro L0130AD L0130AE-0H remains useful for plants maintaining existing Foxboro I/A Series installations where replacing the complete DCS infrastructure is not practical. Typical applications include chemical processing, power generation, water treatment, oil and gas facilities, and manufacturing systems. Before replacement, engineers should verify the exact I/A Series node configuration, signal type, wiring method, module revision, and stored control database settings. To be completely transparent, field interface modules are tightly linked to the DCS engineering database; installing the correct hardware without matching configuration parameters can still result in incorrect scaling, alarms, or invalid process values.

Product Introduction (Non-Templated)

A failed analog input channel can create misleading process values long before operators notice a control issue. The Foxboro L0130AD L0130AE-0H restores the signal path between field transmitters and the I/A Series control environment.

Designed for compact DCS installations, this module supports isolated analog acquisition for legacy process control upgrades, remote cabinet repairs, and long-service Foxboro system maintenance.

Key Technical Specifications

L0130AD

Related Products

• Foxboro FBM201 — Analog input interface module for traditional I/A Series fieldbus modules. Used in rack-based I/O applications requiring higher channel density.
• Foxboro FBM214 — Analog input module designed for process measurement applications with additional signal handling capabilities.
• Foxboro FBM231 — High-density analog input module used when larger numbers of field signals must be integrated into an I/A Series system.
• Foxboro FCP280 — Control processor platform for modern Foxboro control architectures. Used when upgrading beyond legacy I/A Series processing hardware.
• Foxboro FCM10E — Fieldbus communication module supporting distributed field device integration.
• Foxboro NCM10 — Network communication module used with compact I/A Series node architectures where distributed signal acquisition is required.
• Foxboro L0130 Series Modules — Related compact I/O products designed for distributed analog measurement applications.
• Foxboro I/A Series Control Stations — Operator and engineering interface components used with compatible DCS configurations.

Frequently Asked Questions (FAQ)

1. Is the Foxboro compatible with my existing I/A Series DCS?

Compatibility depends on the installed Foxboro node architecture.

Verify:

• I/A Series node model
• Module revision
• Signal type requirement
• Engineering database configuration
• Field wiring arrangement

The hardware model must match the existing DCS configuration.

2. Can I hot-swap this?

Hot replacement depends on the specific Foxboro I/A Series node design and operating procedure.

Recommended steps:

1. Save current DCS configuration
2. Confirm module location
3. Place the affected loop into maintenance condition
4. Replace the module
5. Restore configuration
6. Perform loop verification

Process measurement modules should be changed under controlled conditions.

3. Does the support firmware v3.1?

The module does not operate like a modern programmable controller with independently managed firmware.

Verification should focus on:

• I/A Series software version
• Node compatibility
• Module revision
• Database configuration

The module must operate within the supported Foxboro control environment.

4. Will I lose my DCS logic when replacing the ?

No. The module does not store the main control strategy.

Before replacement:

• Backup I/A Series database
• Record channel assignments
• Document scaling parameters
• Save alarm settings

After installation, reload and verify the engineering configuration.

5. How can I verify a New Surplus Foxboro is authentic?

Recommended checks:

• Confirm Foxboro identification label
• Verify model numbers
• Inspect terminal condition
• Check module housing and connectors
• Review testing records

For DCS I/O hardware, revision matching is critical.

6. Can the support a legacy DCS upgrade?

Yes, when the existing installation uses compatible Foxboro I/A Series architecture.

Common applications:

• Replacing failed analog input channels
• Maintaining remote process cabinets
• Supporting plant lifecycle extensions
• Restoring field signal acquisition

The existing node configuration should be confirmed before installation.

7. What should engineers check before commissioning this module?

Key verification steps:

1. Confirm correct module type
2. Verify field signal wiring
3. Check input scaling
4. Validate channel diagnostics
5. Perform loop calibration
6. Confirm DCS display values

These checks help ensure accurate process measurement after replacement.
