Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | FOXBORO / Invensys |
| Model | A4H254-8F8T |
| Part Number | P0973JP |
| Product Type | Managed Layer 2 Ethernet Switch |
| Network Platform | A-Series / I/A Series Control Network |
| Copper Ports | 8 × 10/100Base-TX RJ45 |
| Fiber Ports | 8 × 100Base-FX MT-RJ |
| Uplink Ports | 2 × 10/100/1000Base-T RJ45 |
| SFP Interfaces | 2 × 1000Base-X Gigabit uplink slots |
| Communication Standard | IEEE 802.3 / 802.3u Ethernet |
| Switching Layer | Layer 2 |
| Management Interface | Console, SNMP, RMON |
| Network Features | VLAN, QoS, Port Mirroring, RSTP |
| Mounting | Rack, shelf, or desktop installation |
| Power Supply | AC input with optional redundant power support |
| Operating Temperature | 0°C to +50°C |
| Application | DCS control networks, industrial Ethernet infrastructure |
Product Introduction

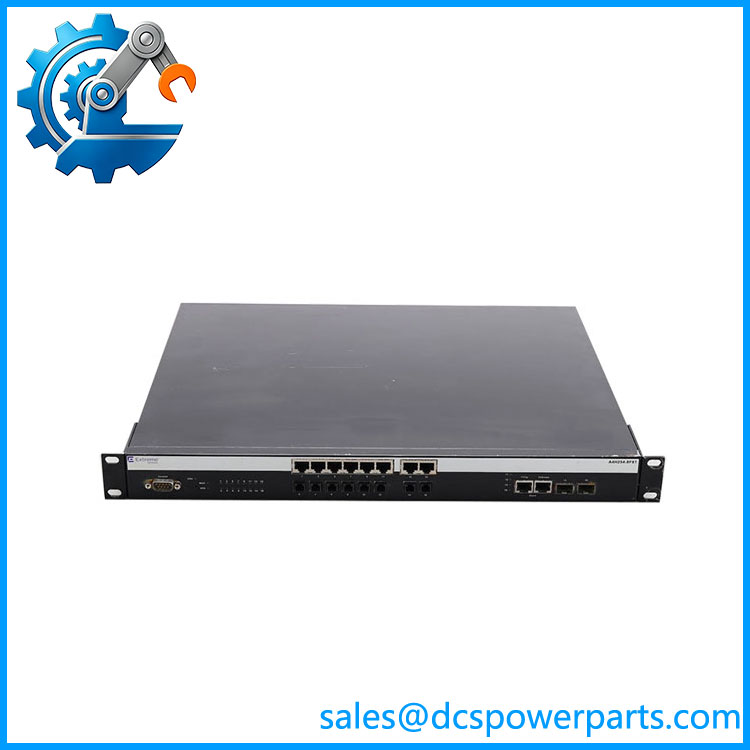

FOXBORO A4H254-8F8T P0973JP Overview
The FOXBORO A4H254-8F8T P0973JP is an A-Series managed Ethernet switch designed for FOXBORO I/A Series control network installations. It combines copper Ethernet and fiber optic connectivity, providing communication paths between controllers, operator stations, engineering workstations, and network devices.
The FOXBORO A4H254-8F8T P0973JP is commonly maintained in legacy DCS environments where the existing network architecture must remain unchanged. The mixed copper/fiber design is useful in industrial plants where fiber isolation and longer communication distances are required. Verify firmware qualification, network configuration files, and switch settings before replacement.
A4H254-8F8T
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A DCS network failure can create a difficult situation: controllers may still be running, but operators lose visibility of the process. In older process plants, Ethernet switches are often installed years after the original control system commissioning, and network documentation may not fully reflect later modifications.
The FOXBORO A4H254-8F8T P0973JP is a communication infrastructure component. It does not execute control logic, but a failure can affect multiple control stations and system nodes simultaneously.
Typical Applications
- Oil & Gas Facilities – I/A Series control networks connecting process controllers, operator stations, and engineering nodes.
- Power Generation Plants – Plant control communication networks for boiler, turbine auxiliary, and balance-of-plant systems.
- Chemical Processing Plants – DCS Ethernet infrastructure supporting process monitoring and control stations.
- Water Treatment Facilities – Industrial Ethernet networks linking PLC/DCS cabinets and supervisory systems.
Technical Pitfalls to Avoid
- Network Configuration Backup
Managed switches store important settings such as VLAN configuration, port assignments, and management parameters. Save the configuration before replacement.
- Fiber Port Identification
Fiber connections are easy to misidentify during maintenance. Label each fiber channel and verify transmit/receive orientation before removing the original unit.
- Firmware Compatibility
FOXBORO I/A Series control networks may require specific qualified switch firmware versions. Confirm the installed firmware revision before commissioning.
Field note: Before replacing a network switch in a running DCS, capture port status LEDs, cable locations, IP settings, VLAN information, and network drawings. Communication recovery is much faster when the original topology is documented.
