Description
Product Overview

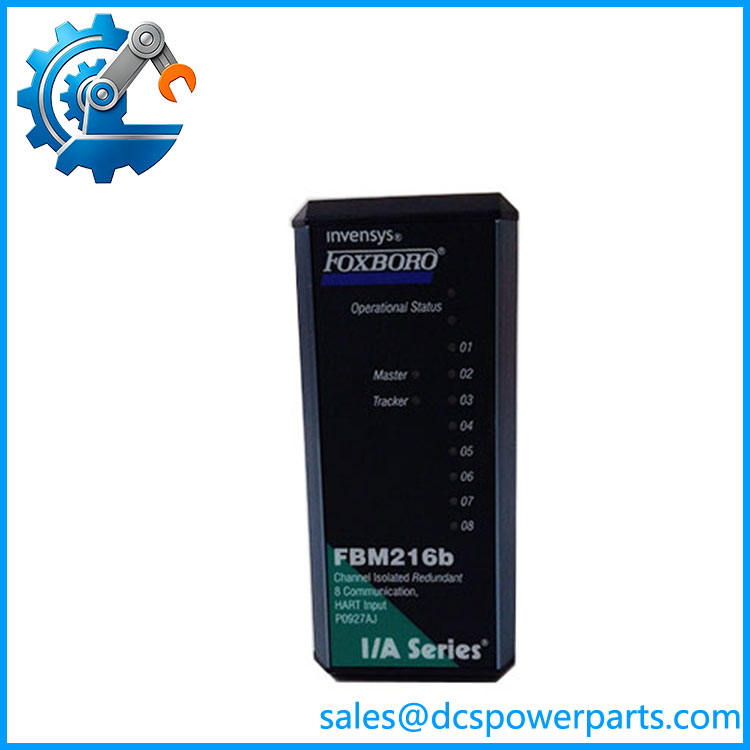

Foxboro FBM216B P0927AJ is a redundant HART communication input module designed for the Foxboro I/A Series® Distributed Control System (DCS). It is part of the Foxboro Fieldbus Module (FBM) family and provides an interface between HART-compatible field transmitters and the control system. The FBM216B P0927AJ enables reliable acquisition of analog process signals while simultaneously supporting HART digital communication for intelligent field device diagnostics and configuration.
The Foxboro FBM216B P0927AJ is designed for applications requiring high availability and continuous process monitoring. It provides isolated input channels for 4–20 mA signals with HART communication capability, allowing operators to obtain both primary process variables and additional device information such as sensor status, calibration data, and diagnostic information.
Foxboro FBM216B P0927AJ is widely used in oil & gas, chemical processing, power generation, and other continuous process industries. By combining analog signal acquisition and HART communication functions in a single module, the FBM216B P0927AJ improves operational visibility, simplifies maintenance, and enhances reliability of Foxboro I/A Series control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | FBM216B P0927AJ |
| Manufacturer | Foxboro (Schneider Electric / Invensys) |
| Product Type | Redundant HART Communication Input Module |
| System Platform | Foxboro I/A Series® DCS |
| Module Function | Analog input acquisition with HART communication |
| Input Channels | 8 channels |
| Input Signal | 4–20 mA analog input with HART communication |
| Communication Type | HART® protocol |
| Input Isolation | Channel and system isolation |
| Accuracy | Approx. 0.15% of full scale (application dependent) |
| Resolution | High-resolution analog conversion |
| Response Time | Less than 250 ms (typical) |
| Diagnostics | Sensor diagnostics, module health monitoring, communication status |
| Redundancy Function | Supported with redundant configuration |
| Fieldbus Interface | Foxboro high-speed fieldbus |
| Mounting | Modular baseplate / DIN rail or rack mounting |
| Power Supply | Supplied through I/A Series infrastructure |
| Operating Temperature | Industrial process environment (configuration dependent) |
| Configuration Software | Foxboro I/A Series engineering tools |
FBM216B
Main Features and Advantages
Foxboro FBM216B P0927AJ provides a high-reliability solution for integrating intelligent field instruments into the I/A Series DCS. Its combination of analog input measurement and HART communication allows control systems to receive both real-time process values and advanced device information.
One of the primary advantages of Foxboro FBM216B P0927AJ is its HART communication capability. Traditional analog input modules provide only the 4–20 mA process signal, while this module additionally allows access to digital information from smart transmitters. This enables remote configuration, calibration verification, and predictive maintenance without requiring technicians to access field devices.
The redundant design of Foxboro FBM216B P0927AJ improves system availability in critical industrial applications. Redundant operation helps maintain continuous process monitoring and reduces the impact of hardware failures in demanding environments where shutdowns are costly.
Foxboro FBM216B P0927AJ provides electrical isolation between field wiring and control electronics, improving signal integrity and protecting the control system from electrical interference, ground loops, and transient disturbances commonly found in industrial plants.
The module supports intelligent diagnostics, allowing maintenance personnel to identify problems such as transmitter faults, communication failures, wiring issues, or abnormal process conditions. These diagnostic capabilities reduce troubleshooting time and improve maintenance efficiency.
Foxboro FBM216B P0927AJ integrates directly into Foxboro I/A Series architectures, simplifying engineering configuration and reducing the need for additional communication interface equipment. The module can be installed in existing systems for expansion, replacement, or modernization projects.
The compact modular design of Foxboro FBM216B P0927AJ helps optimize cabinet space while providing multiple measurement channels. Its industrial-grade construction makes it suitable for continuous operation in harsh process environments.
Applications
Foxboro FBM216B P0927AJ is primarily used in process automation systems where intelligent analog field devices require reliable integration into a DCS platform.
In oil and gas facilities, Foxboro FBM216B P0927AJ is commonly used for monitoring pressure transmitters, flow transmitters, level transmitters, and temperature transmitters. HART communication allows operators to access transmitter diagnostics and improve field device management.
In chemical and petrochemical plants, the module supports process measurement applications where continuous monitoring and high reliability are required. It helps maintain accurate process control by providing stable analog measurement and intelligent device communication.
In power generation facilities, Foxboro FBM216B P0927AJ can be applied for monitoring auxiliary systems, boiler processes, turbine support systems, and plant instrumentation requiring reliable analog input acquisition.
Water treatment and industrial manufacturing facilities also use the FBM216B P0927AJ for integrating smart instruments into centralized monitoring and control systems.
Typical application areas include:
- Oil and gas processing
- Petrochemical plants
- Chemical production facilities
- Power generation systems
- Water treatment plants
- Industrial process automation
- Smart transmitter integration
- Foxboro I/A Series DCS upgrades
Related Products
Foxboro FBM216B P0927AJ — Redundant HART analog input fieldbus module.
Foxboro FBM214B — Analog input module for Foxboro I/A Series systems.
Foxboro FBM217 — Voltage monitoring input module.
Foxboro FBM218 — Output interface module for field control applications.
Foxboro FBM207B — Digital input/output interface module.
Foxboro FCM100ET — Fieldbus communication module for Foxboro systems.
Foxboro CP60 / CP270 Controllers — Control processors used in Foxboro I/A Series architectures.
Foxboro I/A Series Fieldbus Modules — Modular I/O components supporting process automation applications.
