Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | FOXBORO / Schneider Electric |
| Model | FBM227 |
| Part Number | P0927AC |
| Replacement Part | RH927AC |
| Product Type | Analog & Discrete I/O Fieldbus Module |
| System Platform | Foxboro I/A Series / Foxboro Evo |
| Analog Inputs | 4 channels, 0–10 VDC |
| Analog Outputs | 2 channels, 0–10 VDC |
| Discrete Inputs | 4 channels |
| Discrete Outputs | 4 channels |
| Analog Input Range | -0.2 to 10.2 VDC |
| Analog Input Accuracy | ±0.025% of span |
| Analog Output Range | -0.2 to 10.2 VDC |
| Analog Output Accuracy | ±0.05% of span |
| Input Impedance | 10 MΩ nominal |
| Resolution | 12-bit |
| Communication Interface | Redundant 2 Mbps Foxboro Module Fieldbus |
| Isolation | Analog channels individually isolated; digital channels isolated in pairs |
| Mounting | Compact 200 Series baseplate / DIN rail mounting |
| Operating Temperature | -20°C to +70°C |
| Application | Process control, position control, mixed I/O applications |
Product Introduction

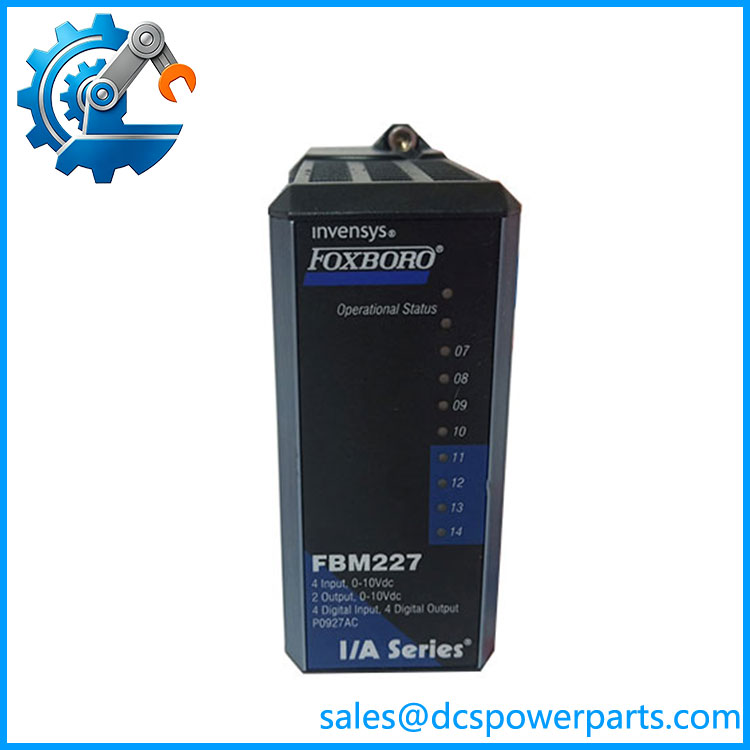

FOXBORO FBM227 P0927AC Overview
The FOXBORO FBM227 P0927AC is a mixed analog and discrete Fieldbus Module designed for Foxboro I/A Series distributed control systems. It provides a flexible interface between field instrumentation and the control processor by combining analog voltage measurement, analog output control, and digital signal handling within a single modular I/O unit.
The FOXBORO FBM227 P0927AC supports four 0–10 VDC analog input channels, two 0–10 VDC analog output channels, four discrete inputs, and four discrete outputs. The analog channels can be used for applications such as valve position feedback, position transmitter signals, and voltage-based instrumentation. The digital channels support contact monitoring and DC switching functions commonly required in industrial automation systems.
The FOXBORO FBM227 P0927AC communicates with Foxboro Field Control Processors through the redundant 2 Mbps Fieldbus architecture. Its modular design allows replacement without removing field termination wiring, reducing maintenance time during service activities.
This module is commonly found in process plants where Foxboro I/A Series systems remain operational for long service periods. Typical applications include control valve positioning, equipment status monitoring, actuator control, and packaged process systems. Before replacement, engineers should verify the FBM baseplate type, termination assembly, control database configuration, and application block assignments.
FBM227 P0927AC
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A control loop shows incorrect valve position, missing equipment feedback, or unexpected digital status changes. The field device may operate correctly, but the DCS receives incorrect information.
The troubleshooting path should include:
- Field wiring inspection
- Analog signal verification
- Discrete contact checking
- Termination assembly inspection
- FBM communication diagnostics
- I/A Series database verification
The FOXBORO FBM227 P0927AC is only one element in the complete I/O chain. A module fault can look similar to wiring, configuration, or field instrument problems.
Typical Applications
Process Valve Control
Used for:
- Valve position feedback
- Positioner control signals
- Actuator interface applications
Chemical Processing
Applied in:
- Batch equipment
- Process skid control
- Equipment interlocks
Oil and Gas
Used for:
- Pump status monitoring
- Remote actuator control
- Process package integration
Manufacturing Systems
Applied in:
- Machine auxiliary control
- Equipment feedback systems
- Distributed I/O panels
Technical Pitfalls to Avoid
1. Confirm Termination Assembly Compatibility
The operates with specific Foxboro termination assemblies.
Verify:
- Terminal assembly model
- Field wiring type
- Cable connection arrangement
A correct FBM module with an incorrect termination assembly can create channel faults.
2. Verify Analog Signal Type
Before installation, confirm:
- 0–10 VDC signal range
- Scaling parameters
- Engineering units
- Channel assignment
Incorrect scaling can produce incorrect process values.
3. Check Application Configuration
Backup:
- FBM configuration
- Control block assignments
- DPIDA/MDACT parameters
- Alarm settings
Hardware replacement alone does not restore the DCS application database.
4. Inspect Field Power and Wiring
Common causes of faults:
- Damaged field cables
- Incorrect grounding
- Missing loop power
- Failed position transmitters
- Incorrect DC supply wiring
Related Products
- FOXBORO FBM219 RH916RH
Discrete I/O Fieldbus Module for Foxboro I/A Series systems. - FOXBORO FBM217 RH914TR
Discrete input module used for process status monitoring. - FOXBORO FBM203 P0914SV
RTD input module for temperature measurement applications. - FOXBORO FBM211
Analog input module for 0–20 mA process signals. - FOXBORO FBM237
Analog output module for current-based control applications. - FOXBORO FCP270 / FCP280
Field Control Processors used with Foxboro I/A Series and Foxboro Evo systems. - Foxboro I/A Series DCS
Distributed control platform supporting modular FBM-based field interfaces.
