Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | XV-440-12TSB-1-10 |
| Catalog / Order Reference | 139911 / 4560820 |
| Manufacturer | Eaton / Moeller |
| Product Family | XV400 |
| Product Type | HMI-PLC / Operator Panel |
| Display | 12.1-inch color TFT |
| Resolution | SVGA, 800 × 600 pixels |
| Touch Technology | Infrared touch |
| Visible Area | Approx. 246 × 185 mm |
| Colors | 65,536 or 256 selectable |
| Brightness | Approx. 350 cd/m² |
| Contrast | Approx. 350:1 |
| Backlight | 2 × CCFL, software dimmable |
| Processor | 32-bit RISC CPU, 400 MHz |
| DRAM | 64 MB |
| Internal Interfaces | 1 × Ethernet, 1 × RS232, 1 × CAN |
| USB | 2 × USB Host, 1 × USB Device |
| Expansion | 2 × CompactFlash slots; 2 × communication-module slots |
| Supply Voltage | 24 VDC nominal |
| Permitted Supply | 20.4–28.8 VDC |
| Maximum Power | 32 W |
| Front Protection | IP65 |
| Rear Protection | IP20 |
| Mounting | Flush/panel mounting |
| Operating Temperature | 0 to +50°C |
| Storage/Transport | -20 to +60°C |
| Weight | Approx. 4.5 kg |
The published XV400 data identifies the XV-440-12TSB-1-10 as a 12.1-inch SVGA unit with an infrared touch interface, Ethernet, RS232, CAN, USB, CompactFlash storage, and expansion slots for communication modules. It uses a 400 MHz 32-bit RISC processor and 64 MB DRAM.
Product Introduction
The Eaton XV-440-12TSB-1-10 is a legacy XV400 industrial operator panel designed for machine and process visualization. Its 12.1-inch 800 × 600 TFT display provides the operator interface, while Ethernet, RS232, CAN/easyNet, USB, and optional communication modules allow integration with PLCs and other automation equipment. Eaton’s XV400 architecture also supported GALILEO visualization and XSOFT-CODESYS programming environments.
The important procurement issue is that this is not simply a touchscreen display. The XV-440 can operate as an HMI-PLC platform, but PLC functionality and additional communication capabilities depend on installed licenses, memory media, and hardware configuration. The exact -1-10 configuration should therefore be matched against the existing panel before replacement.

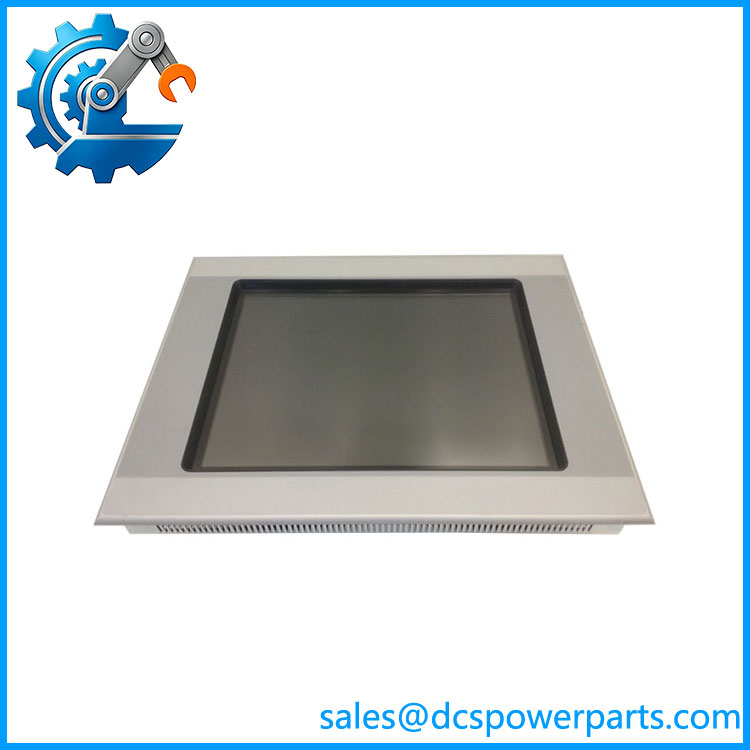

XV-440-12TSB-1-10
Application Scenarios & Field Pitfalls
Engineering Pain Point
The XV-440 belongs to an older HMI generation using Windows CE and CompactFlash-based storage. A replacement panel may have the same screen size but still fail to run the original application because of software-version, communication-driver, license, or memory-card differences.
Typical Applications
- Machine control panels for production equipment and automated machinery.
- PLC operator stations using Ethernet, RS232, or CAN/easyNet communications.
- Packaging and material-handling systems requiring graphical alarms, status displays, and operator commands.
- Legacy plant equipment where maintaining the original HMI architecture is preferable to immediately redesigning the control system.
Technical Pitfalls to Avoid
- Do not confuse XV-440 with XV-430. The XV-440-12TSB-1-10 uses infrared touch, while the related XV-430 12.1-inch model uses a resistive touch interface.
- Check the CompactFlash contents before powering down the original panel. The operating system, application, and data architecture depend on CompactFlash media in this generation.
- Verify installed communication options. The base unit provides Ethernet, RS232, and CAN, while additional communication modules can be installed through dedicated expansion slots. A replacement with a different configuration may not reproduce the original PLC network interface.
Related Products
- Eaton XV-440-12TSB-1-20 — Same basic 12.1-inch XV400 infrared-touch platform with a different configuration suffix; verify the complete order code before substitution.
- Eaton XV-440-12TSB-1-50 — Another 12.1-inch XV400 configuration with different option coding.
- Eaton XV-430-12TSB-1-10 — 12.1-inch variant with resistive touch rather than the XV-440 infrared interface.
- Eaton XV-440-10TVB-1-10 — 10.4-inch touch-panel configuration; smaller display and different mechanical dimensions.
- Eaton XV-460-15TXB-1-10 — 15-inch platform with XGA resolution; not a mechanical drop-in replacement.
- Eaton XV-440-10TVB-1-20 — 10.4-inch configuration with a different option suffix.
- Eaton XV-442 series — Smaller operator-panel family for applications where panel space is limited.
Procurement Check
For XV-440-12TSB-1-10, the key items to verify are 139911 / 4560820 identification, infrared touch technology, 12.1-inch SVGA display, CompactFlash contents, installed communication modules, PLC license, and the original GALILEO/CODESYS project. The model is reported as discontinued, so a surplus unit should be treated as a configuration-specific legacy replacement rather than assumed equivalent to any current Eaton HMI.
