MPB2-TP Eaton Communication Expansion Board for XV400 MICRO PANEL HMI

MPB2-TP Eaton Communication Expansion Board for XV400 MICRO PANEL HMI

Model: MPB2-TP

Brand: Eaton

Core Function:Communication Expansion Board for XV400 MICRO PANEL HMI

Condition: New Original (New Surplus) / Factory Sealed

Origin: USA

Delivery time: 3 days

Add To Quote
Category: SKU: MPB2-TP XV400 MICRO

Description

MPB2-TP

Eaton Communication Expansion Board for XV400 MICRO PANEL HMI

Product Summary

MPB2-TP is a plug-in serial communication board developed by Eaton (Moeller), exclusively designed for XV400 series MICRO PANEL human-machine interfaces. Compared with MPB1-TP, it adds dedicated MPI interface support for Siemens S7 PLCs. The board provides dual DB9 ports: MPI and multi-functional COM PORT, enabling the HMI to establish stable data connection with various automation controllers. It supports multiple electrical signal standards and industrial protocols, widely used for HMI retrofits and system integration projects.

Core Capabilities

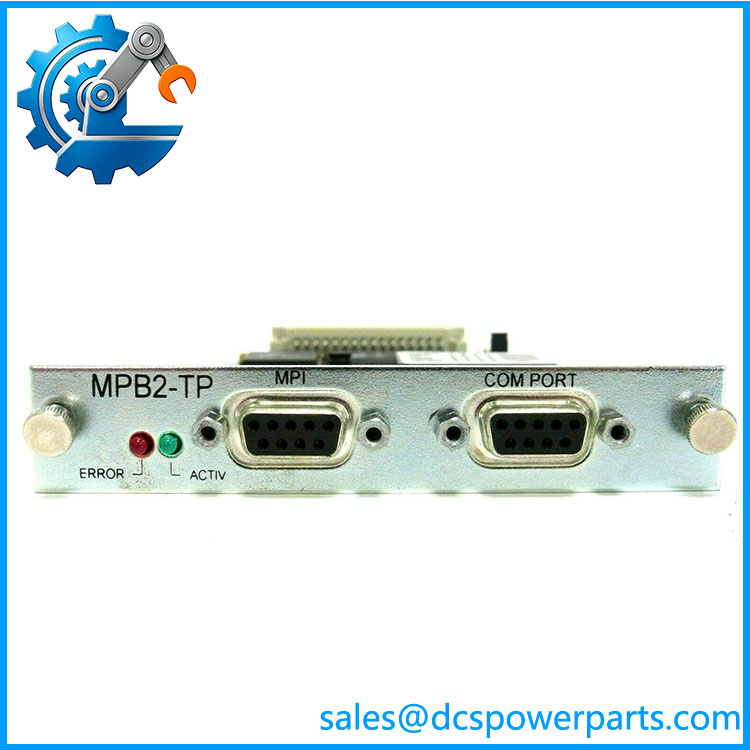

✔ Dual DB9 interface layout: MPI channel and configurable COM PORT

✔ Native Siemens MPI protocol support, compatible with S7-300 / S7-400 controllers

✔ COM PORT configurable via jumpers: RS232, RS422, RS485 and TTY signal levels

✔ Supports Modbus RTU, SUCONET and mainstream PLC communication drivers

✔ Built-in galvanic isolation circuit to suppress ground loop interference

✔ Front panel LED indicators: ACTIV (green) for data activity, ERROR (red) for communication faults

✔ Onboard switchable bus terminating resistor for RS485/MPI network topology

✔ Powered directly by XV400 HMI backplane, no extra external power supply

✔ Standard slot-mounted structure, easy hot plug operation with power disconnected

MPB2-TP

Technical Specification

Item Parameters
Model MPB2-TP
Manufacturer Eaton (Moeller)
Applicable Unit XV400 MICRO PANEL HMI
Interfaces MPI Port, COM PORT (DB9)
Supported Physical Signals MPI, RS232, RS422, RS485, TTY
Main Protocols Siemens MPI, Modbus RTU, SUCONET
Max Baud Rate Up to 375 kbps
Isolation Galvanic signal isolation
Termination Resistor Configurable onboard
Operating Temperature 0 ℃ ~ +60 ℃
Storage Temperature -40 ℃ ~ +85 ℃
Relative Humidity 5% – 95% RH, non-condensing
Installation Internal expansion slot of XV400 HMI
Remark MPI and COM PORT cannot work simultaneously

Installation & Commissioning Guide

Power off the XV400 touch screen before mounting or removing the module. Wear anti-static equipment to avoid damaging sensitive circuit chips. Open the HMI expansion slot cover, insert MPB2-TP and lock securely.
Set internal jumpers according to the target communication standard. Use shielded cables for long-distance wiring and separate signal cables from high-power lines to reduce interference. Complete single-point shielding grounding as required.
After wiring, power on the HMI and enter communication parameter settings. Select the matching driver, station address and baud rate. Verify data read/write between HMI and PLC. Observe ACTIV and ERROR LEDs to judge communication status.
Conduct periodic inspection during long-term operation. Check connector tightness and clear accumulated dust to maintain consistent communication stability.

Typical Application Areas

Mechanical Equipment Automation

HMI connection with Siemens S7 PLC for printing, packaging, textile and plastic machinery.

Water Treatment & HVAC Systems

On-site monitoring panels communicating with distributed controllers and frequency converters.

Energy & Power Auxiliary Control Cabinets

Local operation panel data interaction with generator auxiliary control PLC.

Factory Production Line Retrofit Projects

Upgrade legacy HMI systems to realize communication with Siemens S7 series controllers.

Industrial Automation System Integration

Flexible communication expansion for Eaton XV400 HMI in mixed-brand control systems.
