Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Eaton |
| Part Number | XV-430-12TSB-1-10 |
| Catalog Number | 139909 |
| Product Series | XV400 |
| Display | 12.1-inch TFT color |
| Resolution | 800 × 600 SVGA |
| Touch | 4-wire resistive |
| Nominal Supply | 24 VDC SELV |
| Permitted Supply | 20.4–28.8 VDC |
| Maximum Supply Range | 19.2–30.0 VDC with ripple |
| Typical Power Consumption | 14 W |
| Maximum Power Consumption | 32 W |
| Ethernet | 10/100Base-TX |
| RS232 | 1 ×, 9-pin SUB-D, non-isolated |
| CAN | 1 ×, galvanically isolated |
| USB | 2 × USB Host + 1 × USB Device |
| CPU | 32-bit RISC, 400 MHz |
| DRAM | 64 MB |
| NVRAM | Approx. 32 KB |
| Storage | 2 × CompactFlash Type I/II |
| Operating System | Windows CE |
| Engineering Software | GALILEO; XSOFT-CODESYS-2/3 |
| Operating Temperature | 0 to +50 °C |
| Front Protection | IP65 |
| Rear Protection | IP20 |
| Front Dimensions | 361 × 279 mm |
| Built-in Depth | 88 mm |
| Weight | 4.5 kg |
The electrical and mechanical values above are taken primarily from Eaton’s product datasheet.
Product Introduction

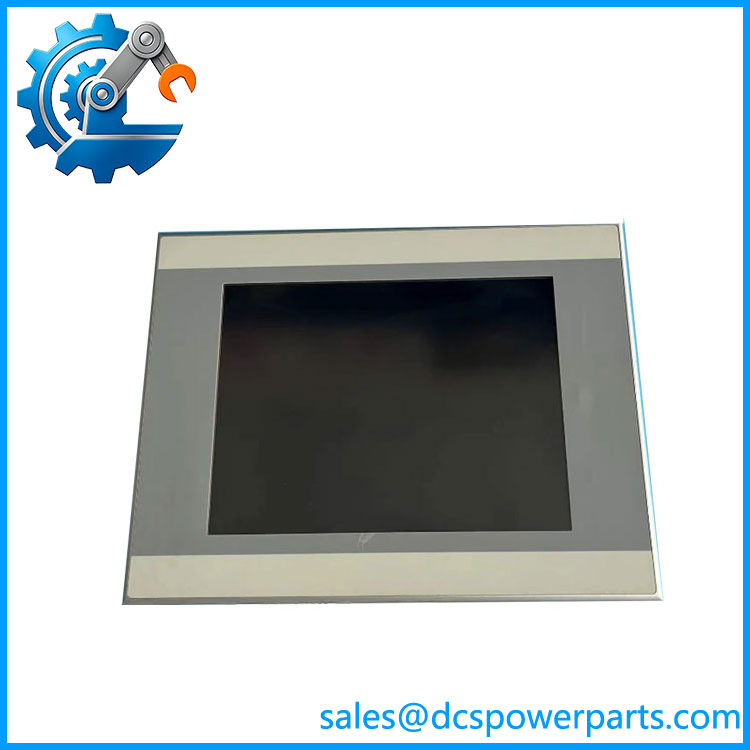

Eaton XV-430-12TSB-1-10 Industrial HMI
The Eaton XV-430-12TSB-1-10 is a 12.1-inch XV400 operator panel designed for machine and plant visualization. Its 800 × 600 TFT display, 4-wire resistive touch interface, Ethernet, RS232, CAN, and USB interfaces provide the communication layer between the operator and the control system.
The unit can also be configured for HMI-PLC operation through the appropriate licensing. That matters on legacy machines where the existing panel may be doing more than visualization. Replacing it with a display-only device can create an unexpected controls-engineering problem.
XV-430-12TSB-1-10
Application Scenarios & Field Pitfalls
Engineering Pain Point
A common replacement problem with older HMI panels is assuming that screen size and connector compatibility equal functional compatibility. They do not.
The XV-430-12TSB-1-10 belongs to the XV400 family and supports optional communication modules and software licensing. The PLC capability is also license-dependent. Before approving a replacement, the installed project’s communication configuration and software environment need to be checked.
Typical Applications
- Machine automation: Operator control, status indication, alarm handling and recipe entry.
- Process equipment: Local visualization of process values and machine states.
- Control cabinets: Flush-mounted HMI for PLC-based automation systems.
- Legacy XV400 installations: Direct replacement where the existing application, communications and mechanical cutout are compatible.
Technical Pitfalls to Avoid
- Do not assume a similar XV400 model is electrically identical.
XV-430 and XV-440 variants differ in touch technology. The XV-430-12TSB-1-10 uses a 4-wire resistive touch system. - Check the PLC license before replacing the panel.
Eaton specifies that the PLC function can be fitted by the user and identifies license 140390 LIC-PLC-MXP-MEDIUM for this model. A replacement panel without the required licensing/configuration may not reproduce the original machine functionality. - Check the power supply and cabinet heat load.
The nominal supply is 24 VDC, with a normal consumption of approximately 14 W and maximum specified consumption of 32 W. Eaton also specifies a 0–50 °C operating ambient range. - Do not overlook the communication layer.
Ethernet, RS232 and CAN are built in, while additional communication functions can depend on optional modules and licenses. Confirm the actual protocol used by the machine before ordering.
Related Products
- XV-440-12TSB-1-10 — 12.1-inch XV400 panel in the same general product family; verify the touch technology and application configuration before treating it as a replacement.
- XV-440-12TSB-1-20 — Related 12.1-inch variant; front/interface configuration should be checked against the installed unit.
- XV-430-10TVB-1-10 — Smaller 10.4-inch HMI; useful where the application can accommodate a different display and mounting arrangement.
- XV-450-57TQB-1-10 — Smaller operator-panel variant; not a dimensional drop-in replacement for the 12.1-inch unit.
- XV-460-15TXB-1-10 — 15-inch panel; provides a larger display but requires mechanical and project-level compatibility checks.
- XVS-430-12MPI-1-10 — Related XV family HMI-PLC platform with different product architecture and communication configuration; do not substitute based on display size alone.
- communication modules — Optional communication hardware can extend the interface capability of the platform, but module availability and supported protocols must be checked against the specific application.
Procurement note: For a replacement request, specify Eaton XV-430-12TSB-1-10 / Catalog No. 139909 rather than simply “12-inch Eaton HMI.” Confirm the existing software project, PLC license, communication modules, CompactFlash configuration, mounting dimensions, and firmware/software requirements before approving the substitute.
