Eaton DPM-MC2 | PROFIBUS-DP Master Module | Legacy HMI/PLC Communication

Description

Key Technical Specifications

The Eaton manual explicitly states that the can only be used in MICRO PANEL MC2-series devices equipped with the appropriate slot and that the card functions as a PROFIBUS master based on EN 50170.

Product Introduction

The is a dedicated PROFIBUS-DP master communication card for compatible MICRO PANEL MC2-series devices. It provides the MC2 platform with a PROFIBUS master interface for exchanging cyclic process data with distributed PROFIBUS field devices, allowing the panel/controller system to operate as the master station on the fieldbus. Eaton documentation identifies the card specifically as a PROFIBUS master rather than a general-purpose serial or Ethernet communication module.

The hardware uses a PROFIBUS-standard connector arrangement and provides front-panel status indication for communication and fault conditions. Older Eaton/Moeller documentation also identifies in the PLC configuration environment as a DP-V1 master associated with PROFIBUS DP/FMS and MPI applications, depending on the host platform and software configuration.

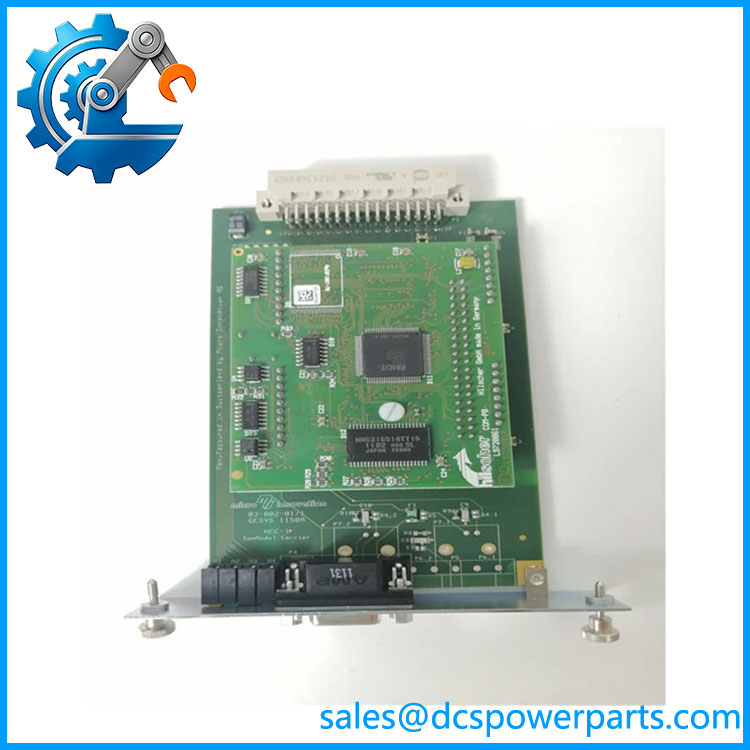

DPM-MC2

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

The main issue with a replacement is host compatibility, not simply PROFIBUS compatibility. This card is designed for a specific MICRO PANEL MC2 architecture, and Eaton explicitly states that it must only be installed in an MC2 device equipped with the appropriate slot. Installing it in an unrelated Eaton PLC or HMI platform because both systems use PROFIBUS is not a valid substitution.

The PROFIBUS network configuration also has to match the existing master and slave architecture. Station addresses, GSD configuration, baud rate, termination, process-data mapping, and diagnostic behavior all need to be retained or deliberately reconfigured when replacing a failed communication card.

Typical Applications

• MICRO PANEL MC2 control systems: Adds PROFIBUS-DP master functionality to compatible MC2-series devices.
• Distributed I/O networks: Provides the master interface for PROFIBUS field I/O and peripheral devices.
• Machine automation: Connects MC2-based operator/control platforms with PROFIBUS-compatible drives, I/O, and other field devices.
• Legacy PLC/HMI installations: Maintains an existing PROFIBUS architecture without immediately replacing the host control platform.
• Process and equipment control: Supports cyclic fieldbus data exchange between the MC2 host and distributed PROFIBUS devices.

Technical Pitfalls to Avoid

1. Do not confuse with COM-.
Eaton documentation also lists , article number 139853, as a PROFIBUS-DP master communication module for the XV400 family. That is a related but different product designation and should not be substituted based on the PROFIBUS function alone.

2. Verify the host panel before procurement.
The Eaton manual states that the card can only be used in MICRO PANEL MC2-series devices with the corresponding slot. Check the exact MC2 hardware designation and existing communication-card configuration before ordering.

3. Preserve the PROFIBUS termination arrangement.
The manual specifies that bus segments must be terminated at both ends and warns against activating more than two terminations on a segment. Incorrect termination is a common cause of intermittent communication failures after maintenance work.

4. Never remove or install the card under power.
Eaton explicitly requires the equipment to be de-energized before installing or removing the . This is particularly important in older MC2 hardware where the communication-card slot is directly integrated into the host assembly.

5. Check the PROFIBUS configuration, not only the hardware.
A physically correct replacement card can still leave the network offline if the master configuration, GSD files, station addresses, or process-data mapping do not match the original project.

Related Products

• Eaton MICRO PANEL MC2 — Host platform for which the was specifically designed. The card requires the appropriate communication slot.
• Moeller XT- — Earlier/related designation for a PROFIBUS-DP master communication assembly documented by Moeller. Verify the complete host-system configuration before treating it as a replacement.
• COM- — 139853 — PROFIBUS-DP Master communication module used with the Eaton XV400 family; functionally related but not a direct replacement for every installation.
• COM-PDP-TP — 139849 — PROFIBUS-DP Slave communication module for Eaton XV400 systems; appropriate where the application requires slave rather than master functionality.
• COM-MPB2-TP — 139847 — Eaton multiple-protocol communication board used in compatible XV-series HMI systems.
• COM-MPB1-TP — 139850 — Another Eaton multiple-protocol communication option for compatible HMI architectures.
• XV400 — Eaton HMI/HMI-PLC platform family with dedicated communication-module slots; relevant when evaluating the broader Eaton communication architecture.
• PROFIBUS-DP field I/O — Distributed slave devices connected to the master through the PROFIBUS network.
• HIL_1662.GSD — Configuration reference associated with in documented Eaton/Moeller PLC configuration environments.

Procurement Note

For an replacement, verify the exact MC2 host model, communication-card slot, existing PROFIBUS configuration, board labeling, and software project before purchase. The most important distinction is that is a dedicated PROFIBUS-DP master card for compatible MICRO PANEL MC2 equipment, not a generic Eaton communication module.

Also verify whether the installed system uses the older Moeller documentation/designation or an Eaton-labeled assembly. The platform lineage matters when matching hardware revisions and configuration software.
