Bently Nevada 3500/15 125840-01 | 120 VAC Machinery Protection Power Supply

Description

Key Technical Specifications

The 3500/15 family uses different input-voltage versions. 125840-01 is the 120 VAC version, while other part numbers are assigned to different AC or DC input configurations. Confirm the actual cabinet supply before ordering.

Product Introduction

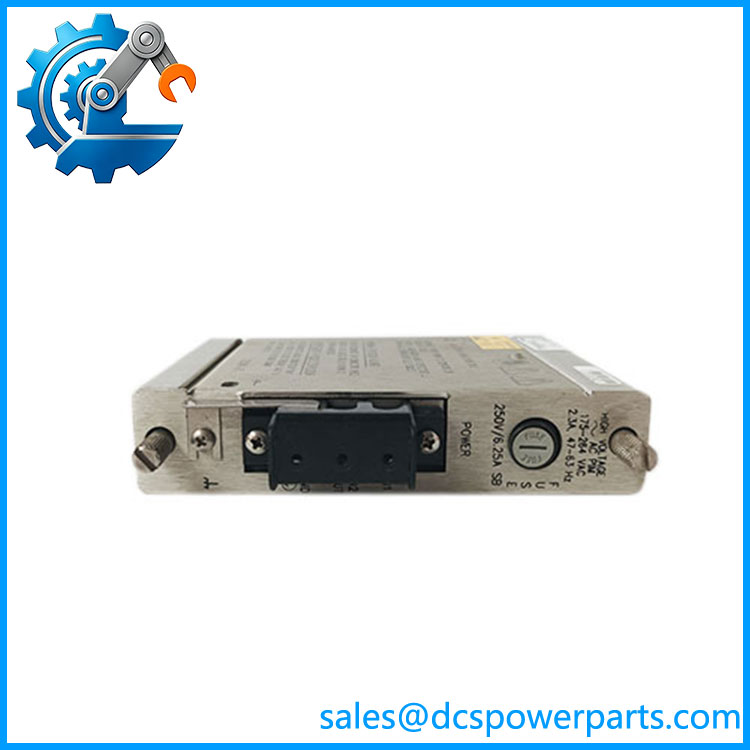

Bently Nevada 3500/15 125840-01

The Bently Nevada 3500/15 125840-01 is an AC power supply module for the 3500 Machinery Protection System. It accepts nominal 120 VAC plant power and supplies the regulated power required by the rack-mounted monitoring, interface, and communication modules.

This module is fundamental to rack operation. A marginal power supply can produce symptoms that look like failed monitors, communication problems, or intermittent rack faults. For that reason, checking the 3500/15 should be part of any serious troubleshooting sequence involving multiple module faults.

125840-01

Application Scenarios & Field Pitfalls

Engineering Pain Point

A 3500 rack can suddenly report several module faults at once. Engineers sometimes start pulling monitor cards immediately. That is often the wrong first move. If the rack supply is dropping out, overloaded, or receiving unstable AC input, multiple healthy modules can appear defective at the same time.

Typical Applications

• Steam Turbine Protection — Rack power for vibration, thrust, speed, and position monitoring.
• Gas Turbine Protection — Powering 3500 monitoring and interface modules used for rotating-equipment protection.
• Centrifugal Compressors — Supporting vibration and axial-position monitoring racks.
• Industrial Pumps and Motors — Supplying 3500 racks used for critical rotating-equipment condition monitoring.

Technical Pitfalls to Avoid

1. Verify the AC input before installation.
   The 125840-01 is the 120 VAC variant. Do not substitute a different 3500/15 input version simply because the module has the same front-panel appearance.
2. Do not diagnose the supply from LEDs alone.
   A power-supply LED can indicate that the module is energized while the rack is still experiencing voltage drop, excessive ripple, thermal problems, or intermittent connections. Measure the appropriate supply points under actual load.
3. Check the rack load.
   The supply is rated for approximately 50 W maximum output. A rack with multiple installed modules must remain within the applicable power budget.
4. Investigate multiple simultaneous module failures.
   If several 3500 modules lose communication or report faults at the same time, check the power supply and rack power distribution before replacing individual monitor cards.
5. Check terminal connections.
   Loose AC terminals, damaged wiring, and poor grounding can create intermittent failures that are easily mistaken for an internal power-supply fault.
6. Do not ignore cabinet temperature.
   The published operating range extends to approximately +65 °C, but sustained high cabinet temperature increases stress on power electronics. Check cabinet ventilation when failures repeat.
7. Verify redundant supply configuration.
   Where the rack uses redundant power supplies, confirm that both supplies are correctly installed and that the rack is actually sharing the load as designed.
8. Do not hot-swap casually.
   Follow the plant’s approved maintenance procedure and the applicable 3500 installation documentation. A machinery-protection rack is part of the plant protection system, not ordinary PLC I/O.
9. Check the exact suffix.
   125840-01 and 125840-02 are not interchangeable based on appearance alone. Input-voltage compatibility must be established before installation.

Related Products

• Bently Nevada 3500/15 125840-02 — 3500/15 AC power-supply variant for a different AC input range. It is a related model but should not be substituted for 125840-01 without confirming the plant supply voltage.
• Bently Nevada 3500/15 125840-04 — Another 3500/15 power-supply configuration. Verify input-voltage requirements and rack compatibility before considering substitution.
• Bently Nevada 3500/15 133292-01 — Later 3500/15 power-supply hardware associated with the 3500 system. Exact electrical configuration must be checked against the installed rack.
• Bently Nevada 3500/05 — 3500 Instrument Rack that houses the power supply, monitor modules, interface modules, and related hardware. The rack determines the available power-supply positions and overall architecture.
• Bently Nevada 3500/22M — Transient Data Interface Module. It provides rack-level communication and transient-data functions; it does not replace the 3500/15 power supply.
• Bently Nevada 3500/32 — Four-channel Relay I/O Module. It uses rack power supplied by the 3500/15 and provides relay outputs for alarm and shutdown interfaces.
• Bently Nevada 3500/40M — Proximitor Monitor that processes proximity-transducer signals for vibration, thrust, differential expansion, and related measurements.
• Bently Nevada 3500/42M — Proximity Seismic Monitor for four-channel vibration and position monitoring. It is a monitoring module, not a power-supply substitute.
• Bently Nevada 3500/50M — Tachometer Module for speed, zero-speed, and overspeed-related measurements. It depends on the rack power architecture provided by the 3500/15.
• Bently Nevada 3500/94 — LCD Display Interface Module for local presentation of 3500 system information. It is complementary rack hardware rather than a replacement for the power supply.
