Description
Product Overview

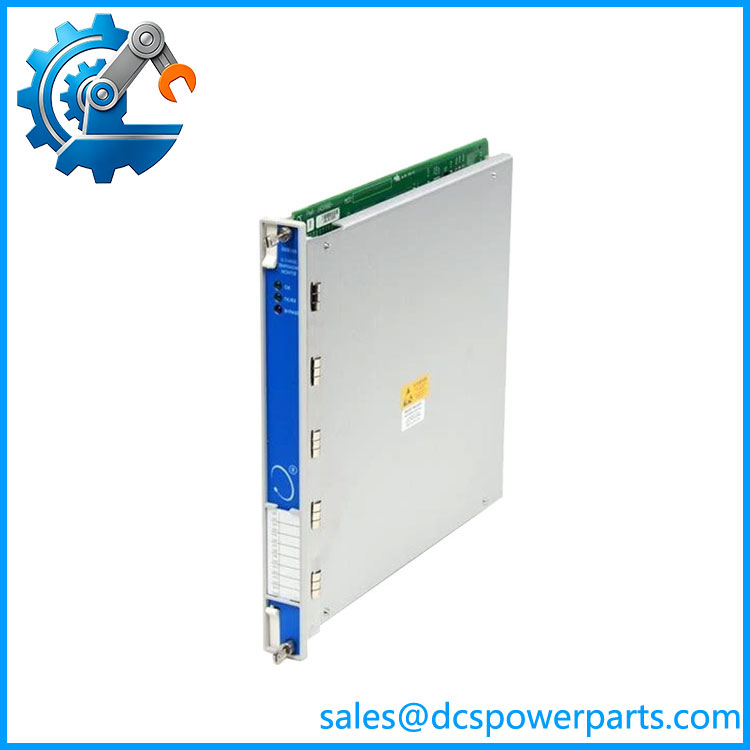

Bently Nevada 3500/65 145988-02 is a 16-channel temperature monitoring module designed for the Bently Nevada 3500 Machinery Protection System. It provides continuous temperature measurement, alarm processing, and condition monitoring functions for critical rotating equipment such as turbines, compressors, generators, pumps, and large industrial machinery. The 3500/65 145988-02 is specifically engineered to acquire temperature signals from RTD sensors and isolated-tip thermocouples, converting field temperature measurements into reliable digital monitoring data for machinery protection applications.
Bently Nevada 3500/65 145988-02 belongs to the 3500 Series rack-based monitoring platform and functions as an intelligent temperature acquisition module within a complete machinery condition monitoring system. The module supports up to 16 independent temperature channels and can be configured for different sensor types, including 3-wire RTD, 4-wire RTD, and isolated-tip thermocouple inputs. Through programmable alarm thresholds and integration with the 3500 rack architecture, the 3500/65 145988-02 helps operators detect abnormal thermal conditions before they lead to equipment damage.
Bently Nevada 3500/65 145988-02 is widely used in industries where equipment availability and reliability are critical. By providing accurate temperature monitoring of bearings, windings, lubrication systems, casings, and process components, the module improves predictive maintenance capability and supports preventive protection strategies. The 3500/65 145988-02 is an essential component for industrial plants seeking to maximize rotating equipment uptime and reduce unexpected failures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3500/65 145988-02 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | 16-Channel Temperature Monitor Module |
| System Platform | Bently Nevada 3500 Machinery Protection System |
| Monitoring Function | Temperature measurement and alarm monitoring |
| Number of Channels | 16 channels |
| Input Types | RTD and isolated-tip thermocouple inputs |
| Supported Sensors | 3-wire RTD, 4-wire RTD, isolated-tip TC |
| Measurement Resolution | 1°C or 1°F |
| Measurement Accuracy | ±3°C at +25°C |
| RTD Excitation Current | 913 ±7 µA at 25°C |
| Input Impedance | >1 MΩ |
| Configuration Software | 3500 Rack Configuration Software |
| Communication Interface | 3500 rack backplane communication |
| Status Indicators | OK, TX/RX, Bypass LEDs |
| Power Consumption | Approximately 3 W |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Mounting Type | 3500 rack installation |
145988-02
Main Features and Advantages
Bently Nevada 3500/65 145988-02 provides a professional temperature monitoring solution for machinery protection systems where thermal condition directly affects equipment reliability. Unlike standalone temperature transmitters, 3500/65 145988-02 is integrated into the Bently Nevada 3500 monitoring architecture, allowing temperature information to be combined with vibration, speed, and other machinery health parameters.
Multi-channel monitoring capability is one of the key advantages of Bently Nevada 3500/65 145988-02. The module supports 16 independent temperature measurement channels, allowing users to monitor multiple critical points from a single rack position. This reduces system complexity and improves centralized equipment condition visibility.
Bently Nevada 3500/65 145988-02 supports flexible sensor configurations. The ability to accept both RTD and isolated-tip thermocouple signals allows the module to adapt to different industrial applications. Users can configure individual channels according to specific equipment requirements, including bearing temperature, winding temperature, oil temperature, and process temperature measurements.
The advanced alarm processing capability of Bently Nevada 3500/65 145988-02 improves machinery protection performance. Each temperature channel can be configured with user-defined alarm thresholds, allowing early detection of overheating conditions. When abnormal temperature increases occur, the system can generate alarms or initiate protective actions through the 3500 platform.
Bently Nevada 3500/65 145988-02 provides excellent integration with existing machinery protection systems. Through the 3500 rack backplane communication structure, the module exchanges measurement and diagnostic information with other system components without requiring additional communication hardware.
The rugged industrial design of Bently Nevada 3500/65 145988-02 ensures reliable operation in demanding environments. It is designed for continuous monitoring applications where temperature variations, electrical noise, and long operating cycles are common.
Another important advantage of Bently Nevada 3500/65 145988-02 is its suitability for predictive maintenance programs. By continuously tracking thermal trends, maintenance teams can identify developing problems, optimize maintenance schedules, and reduce unexpected equipment shutdowns.
With flexible sensor support, accurate measurement capability, integrated diagnostics, and proven Bently Nevada reliability, 3500/65 145988-02 is a dependable temperature monitoring solution for critical industrial machinery.
Applications
Bently Nevada 3500/65 145988-02 is mainly used in rotating machinery condition monitoring systems where accurate temperature measurement is required for equipment protection and predictive maintenance.
In steam turbines and gas turbines, Bently Nevada 3500/65 145988-02 monitors critical temperatures such as bearing metal temperature, lubrication oil temperature, and internal machine temperatures. Continuous monitoring helps prevent overheating conditions that could result in severe mechanical damage.
In generators and motors, the 3500/65 145988-02 is used to monitor stator winding temperatures, bearing temperatures, and cooling system conditions. Accurate thermal monitoring helps maintain safe operating limits and improves equipment reliability.
Compressors, pumps, and industrial fans also benefit from Bently Nevada 3500/65 145988-02 because temperature changes often indicate lubrication problems, excessive friction, or developing mechanical faults.
The module is widely applied in power generation, petrochemical, oil and gas, and industrial processing facilities where rotating equipment operates continuously and equipment failure can cause significant production losses.
Bently Nevada 3500/65 145988-02 is also commonly used in machinery upgrade and retrofit projects. Existing Bently Nevada 3500 installations can expand temperature monitoring capability by adding compatible temperature modules.
Typical application areas include:
- Steam turbine monitoring
- Gas turbine protection
- Generator temperature monitoring
- Compressor condition monitoring
- Pump protection systems
- Motor bearing monitoring
- Petrochemical production facilities
- Oil and gas processing plants
- Power generation equipment
- Industrial rotating machinery
