Description
Product Features

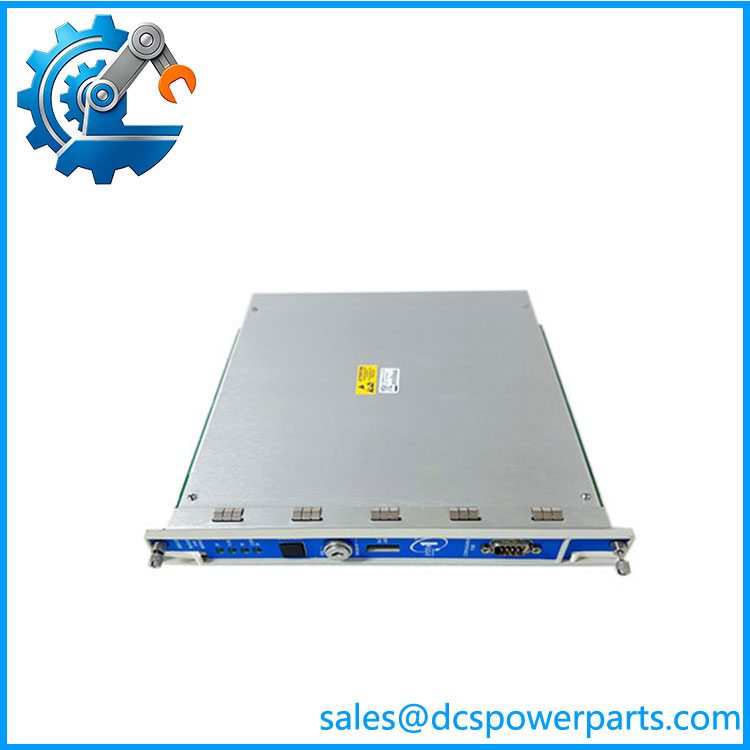

The 3500/22M 138607-01/AB is a high-reliability industrial system monitor module developed for Bently Nevada 3500 series machinery protection and condition monitoring systems. As a core system management and fault monitoring unit, this module undertakes system hardware monitoring, rack status management, fault diagnosis and data synchronization tasks for the entire 3500 monitoring rack. Adopting industrial-grade redundant design and enhanced anti-interference circuit structure, it supports 24/7 uninterrupted stable operation in harsh industrial environments. With ultra-high operational reliability, comprehensive self-diagnosis capability and perfect system compatibility, it provides stable system operation guarantee and accurate fault early warning for rotating machinery condition monitoring in petrochemical, power, metallurgy and other heavy industrial fields.
1. Professional System-level Monitoring Capability: Serves as the core management module of the 3500 system rack, realizing full real-time monitoring of rack power supply status, module operating status, internal temperature and system communication links. It uniformly manages the operating state of all functional modules in the rack to ensure coordinated and consistent operation of the entire system.
2. High-precision Intelligent Fault Diagnosis: Built-in full-coverage hardware and software dual diagnosis mechanism, which can automatically identify system power abnormalities, module failures, communication anomalies and operating temperature faults. It outputs accurate fault codes and detailed operation logs, supporting rapid fault location, troubleshooting and equipment predictive maintenance.
3. Industrial-grade Redundant Anti-fault Design: Adopts optimized redundant circuit architecture and multi-layer electromagnetic shielding structure, fully compliant with industrial EMC electromagnetic compatibility standards. It effectively resists on-site strong electromagnetic interference, voltage surge and signal crosstalk, avoiding system misoperation and data loss caused by external interference.
4. Perfect System Compatibility & Synchronization: Fully matched with Bently Nevada 3500 series monitoring systems, supporting seamless docking and synchronous linkage with all 3500 series functional modules. It realizes unified system clock synchronization, data transmission and state management, ensuring high consistency and accuracy of overall system monitoring data.
5. Excellent Harsh Environment Adaptability: The core circuit board adopts high-grade industrial conformal coating protection, with outstanding dust-proof, moisture-proof, anti-corrosion and anti-aging performance. The reinforced mechanical structure resists mechanical vibration and impact, adapting to long-term stable operation in high-temperature, high-humidity and dusty industrial working conditions.
6. Ultra-high Operational Stability & Low Failure Rate: Selects high-quality industrial-grade electronic components and adopts scientific heat dissipation layout, featuring low power consumption and low heat generation. It supports long-term high-load uninterrupted operation, effectively reducing system downtime and overall industrial operation and maintenance costs.
7. Standard Rack-mounted Modular Design: Adopts standard 3500 series rack-mounted modular structure with unified installation dimensions. It supports fast plug-and-play installation and on-site replacement, simplifies system layout, saves cabinet space and greatly improves construction and maintenance efficiency.
8. Complete System Safety Protection: Integrates overvoltage, overcurrent, short-circuit and over-temperature automatic protection mechanisms. When system electrical abnormalities or over-limit temperature occur, it triggers automatic protection actions to protect the entire rack equipment from damage and ensure the safe and stable operation of the machinery monitoring system.
138607-01
Product Parameters
|
Item
|
Specification
|
|
Product Model
|
3500/22M 138607-01/AB
|
|
Product Type
|
Industrial System Monitor & Rack Management Module
|
|
Applicable System
|
Bently Nevada 3500 Series Machinery Condition Monitoring System
|
|
Core Functions
|
System rack status monitoring, hardware fault diagnosis, system clock synchronization, power status detection, system safety protection, operation log recording
|
|
Monitoring Performance
|
Full-rack real-time synchronous monitoring, high fault recognition accuracy, fast response speed, stable system linkage
|
|
Communication Mode
|
Dedicated 3500 System Internal Bus Communication
|
|
EMC Standard
|
Compliant with IEC 61000 Industrial Electromagnetic Compatibility Standards
|
|
Protection Mechanism
|
Overvoltage, Overcurrent, Short-circuit, Over-temperature Automatic Protection & System Interlock
|
|
Diagnostic Function
|
Full-system real-time self-diagnosis, accurate fault location, alarm prompt and complete log storage
|
|
Surface Protection
|
Industrial Conformal Coating, Dustproof, Moisture-proof, Anti-corrosion, Anti-aging
|
|
Power Supply Mode
|
Standard Industrial DC Stable Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +65℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing Industrial Environment
|
|
Structural Performance
|
Industrial-grade Reinforced Anti-vibration & Anti-shock Rack Structure
|
|
Installation Method
|
Standard 3500 System Cabinet Rack Plug-in Installation
|
|
Operating Characteristic
|
Support 24/7 Long-term Uninterrupted High-load Stable Operation
|
Product Usage Method
1. Pre-installation Inspection: Conduct a comprehensive inspection of the 3500/22M 138607-01/AB module’s appearance, circuit board, golden fingers and terminal interfaces. Check for shell damage, circuit oxidation, component looseness and interface abrasion to ensure complete hardware integrity. Verify the module model to confirm full compatibility with the on-site Bently Nevada 3500 monitoring system rack.
2. Static Protection & Environment Preparation: Complete installation operations in a dry, dust-free and well-ventilated industrial control cabinet. Wear professional anti-static gloves and wrist straps during operation to prevent static discharge from damaging internal precision chips and system control circuits, ensuring standardized and safe construction operations.
3. Module Installation & Fixation: Align the module with the standard slot of the 3500 system rack, insert it smoothly and firmly, and lock the fixing buckle. Ensure reliable contact between the module and the backplane bus to avoid poor contact, system communication interruption and monitoring abnormality caused by long-term equipment vibration.
4. Standard Wiring Connection: Complete system power supply wiring, rack bus wiring and grounding wiring in strict accordance with industrial electrical safety specifications and 3500 system wiring standards. Strictly distinguish power terminals and signal terminals to prevent wrong wiring and signal crosstalk, and keep the wiring neat, standardized and firm.
5. System Configuration & Parameter Debugging: After confirming all wiring is correct, connect the upper computer monitoring configuration software. Set system monitoring parameters, fault threshold values, clock synchronization parameters and alarm logic according to on-site machinery monitoring requirements, then download and save configuration data to complete system adaptation.
6. Power-on Test & Function Verification: Perform segmented power-on detection to activate the module’s built-in self-diagnosis program. Observe the rack status indicator to confirm normal power supply and stable system communication. Simulate system power fluctuation and module fault conditions to verify the accuracy of system monitoring and the effectiveness of fault alarm and protection functions.
7. Daily Operation & Regular Maintenance: After passing debugging and verification, the module can be put into long-term formal system monitoring operation. Regularly inspect module operating temperature, rack connection status and system operation logs, clean surface dust and heat dissipation channels periodically, and eliminate potential hidden dangers to ensure long-term stable operation of the 3500 machinery monitoring system.
Product Application Fields
1. Petrochemical Industry: Widely applied in system monitoring and equipment protection of rotating machinery such as compressors, turbines and pumps in oil extraction, refining and chemical production plants. It ensures the stable operation of the machinery condition monitoring system, provides real-time system state feedback and fault early warning for high-risk production equipment, and guarantees safe and continuous production.
2. Power & Energy Industry: Deployed in 3500 monitoring systems of thermal power plants, gas power plants and new energy power stations. It undertakes the overall state monitoring and management of power generation equipment such as steam turbines, generators and fans, effectively preventing equipment failure caused by system abnormalities and improving the safety and stability of power system operation.
3. Metallurgy & Heavy Industry: Serves as the core system management module for the condition monitoring system of large-scale rotating equipment in metallurgical smelting, rolling and heavy machinery production lines. It realizes full-time monitoring of the operating state of the monitoring system itself, ensuring the accuracy and stability of equipment vibration, displacement and temperature monitoring data.
4. Oil & Gas Transmission Industry: Applied in machinery monitoring system management of long-distance oil and gas pipeline compression stations and storage facilities. It adapts to long-term unattended industrial operation scenarios, provides stable system operation guarantee for key transmission equipment, and avoids equipment shutdown and safety risks caused by system faults.
5. Industrial Key Equipment Monitoring: Universally used in system support and state management of 3500 series monitoring systems for various large-scale industrial key rotating equipment. It provides reliable system-level fault diagnosis and safety protection for industrial core production equipment, reduces equipment failure rate and production loss, and improves the overall intelligent monitoring level of industrial equipment.
