Bently Nevada 3500/20 125744-02 | Rack Interface I/O Module, In Stock

Description

Key Technical Specifications

Important: The 3500/20 is a system-interface component, not a vibration-input monitor. Its exact communication and I/O functions depend on the particular hardware revision and 3500 system configuration. Verify the OEM documentation before replacing an older revision.

Product Introduction

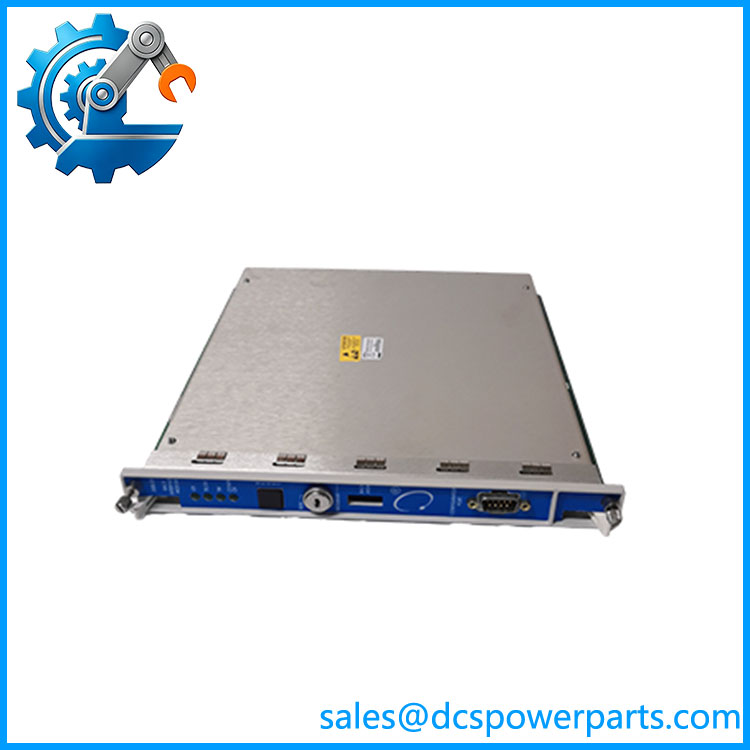

Bently Nevada 3500/20 125744-02 Overview

The Bently Nevada 3500/20 125744-02 is a Rack Interface Module for the 3500 Machinery Condition Monitoring System. It provides the interface between the 3500 rack and external monitoring or communication functions while also handling rack-level status and system interface duties.

This module matters because the 3500 rack is a system rather than a collection of independent monitor cards. A problem with the rack interface can affect communication and system visibility even when the individual vibration, position, and speed monitoring modules are operating correctly. That makes correct revision and configuration matching important during replacement.

125744-02

Application Scenarios & Field Pitfalls

Engineering Pain Point

A 3500 rack can continue measuring machinery internally while the plant’s host system suddenly stops receiving the expected rack data. Engineers often start by checking the individual monitor cards. If several channels remain healthy locally but external communication disappears, the rack interface becomes a much more logical place to investigate.

Typical Applications

• Steam Turbine — Rack-level interface for turbine machinery protection and monitoring data.
• Gas Turbine — Communication and system-status interface for turbine monitoring racks.
• Oil & Gas — Interface between a 3500 machinery protection rack and plant monitoring/control infrastructure.
• Power Generation — Rack communication and status handling for turbine, generator, and auxiliary machinery monitoring.

Technical Pitfalls to Avoid

1. Do not treat the 3500/20 as another monitor channel.
   It is a rack-interface component. Replacing a vibration monitor will not correct a rack-level communication problem.
2. Check communication wiring before replacing the module.
   In our experience, loose terminals, damaged communication cables, incorrect network settings, or a failed upstream interface can mimic a bad rack-interface module.
3. Verify hardware revision and configuration compatibility.
   A replacement with a different revision may physically fit while still requiring configuration or system-level compatibility checks.

Standard Operating Procedure (SOP) for Quality Control

The 3500/20 should be tested as a system-interface device. Power-up alone is not sufficient.

1. Inbound Inspection

Each unit should be checked for:

• Exact 3500/20 125744-02 identification.
• OEM labels and serial/revision information.
• Bent or contaminated connector pins.
• Corrosion, oxidation, contamination, or physical damage.
• Damaged front-panel components.
• Signs of previous unauthorized board-level modification.
• Mechanical condition of the rack interface.

2. Live Functional Testing

Using an appropriate 3500 test rack:

• Install the module in the correct rack position.
• Verify normal startup.
• Confirm rack recognition.
• Check system status indications.
• Establish the applicable communication connection.
• Verify that rack information can be read by the associated configuration or monitoring equipment.
• Check communication stability over an extended test period.
• Confirm that no unexpected rack faults are generated.

Where possible, testing should be performed with known-good 3500 modules installed. That separates a faulty rack interface from a defective backplane or unrelated monitor module.

3. Final Packaging

After testing:

• Use anti-static packaging.
• Protect the backplane connector from impact.
• Apply QC identification.
• Record hardware revision and functional-test results.
• Use moisture and impact protection appropriate for electronic industrial equipment.

The target is traceable functional verification, not a claim of zero future failures.

Frequently Asked Questions

Q1: Can I directly replace an older 3500/20 with 125744-02?

Do not assume direct interchangeability based only on the 3500/20 designation. Check the complete part number, hardware revision, rack configuration, communication arrangement, and software compatibility.

For an operating machinery-protection rack, the replacement should be verified against the existing system documentation before installation.

Q2: What does the Bently Nevada 3500/20 actually do?

The 3500/20 serves as a rack interface rather than a dedicated vibration or speed measurement module. It provides rack-level interface and communication functions that allow the rest of the 3500 system to interact with external equipment and configuration tools.

Q3: Will replacing the 3500/20 erase my monitoring configuration?

The answer depends on where the particular configuration data is maintained in the installed 3500 system and how the replacement is performed. Do not rely on assumptions.

Before replacement, document the rack configuration, communication settings, module assignments, alarm configuration, and system status. After installation, verify the complete rack rather than checking only whether the new module powers up.

Q4: Can the 3500/20 125744-02 be hot-swapped?

Do not assume it can be safely removed from an energized rack. The module is part of the rack-level interface architecture, and removing it can interrupt communication or affect system status.

In our experience, planned replacement is the safer procedure for a machinery-protection system unless the specific OEM procedure and plant maintenance philosophy explicitly permit live replacement.

Q5: What should I check if the 3500 rack is running but the host system cannot see it?

Work from the outside in:

1. Check the host communication interface.
2. Check network or communication wiring.
3. Verify communication configuration.
4. Check the 3500/20 status.
5. Confirm rack power and backplane health.
6. Test with known-good communication equipment where practical.
7. Only then consider replacing the 3500/20.

This approach prevents unnecessary replacement of an otherwise healthy rack interface.

Q6: Can a bad 3500/20 cause all vibration channels to fail?

Not necessarily. The monitor modules may continue processing their individual measurements even if rack-level communication is impaired. The symptom depends on how the 3500 rack is integrated into the plant control and monitoring architecture.

If the local module indications remain normal but the host system loses data, investigate the rack interface and communication path first.

Q7: What should I verify before ordering 125744-02?

At minimum:

• Bently Nevada 3500/20
• Part number: 125744-02
• Existing rack configuration
• Hardware revision
• Communication architecture
• Host-system interface
• Configuration software compatibility
• Rack power and backplane condition
• Existing module revision and system documentation

Field note: With a 3500/20 replacement, the important question is not simply “Will it fit?” The real question is whether the replacement matches the rack’s communication and configuration architecture. Verify the complete system before installation.
