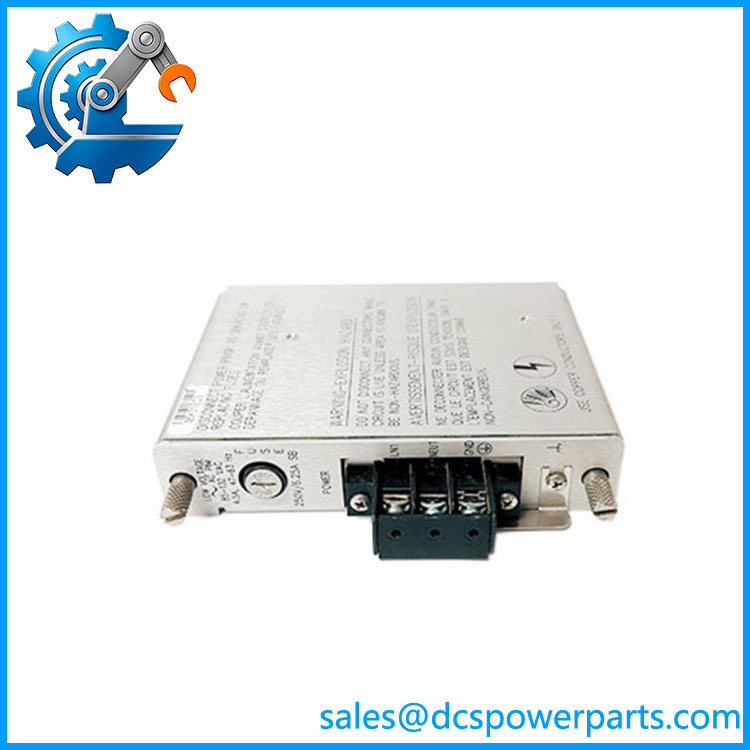

Bently Nevada 3500/15 125840-02 | AC Power Supply Module, 125 VAC

Description

Key Technical Specifications

Part-number verification matters. The 3500/15 family includes multiple AC and DC input configurations. Do not substitute a different input-voltage version simply because the front panel looks identical.

Product Introduction

Bently Nevada 3500/15 125840-02 Overview

The Bently Nevada 3500/15 125840-02 is an AC power supply used with the 3500 Machinery Condition Monitoring System. Its job is straightforward but critical: provide the required regulated power to the monitoring rack and its installed modules. A failed supply can therefore affect multiple monitoring channels at once.

For a plant maintaining a 3500 rack in service, the correct input-voltage version is the first thing to verify. The 125840-02 configuration is associated with the AC-input 3500/15 family, so the plant supply, rack wiring, and replacement part number should all be checked before installation.

125840-02

Application Scenarios & Field Pitfalls

Engineering Pain Point

When several 3500 modules suddenly report faults at the same time, engineers sometimes start replacing individual monitoring cards. That can waste hours. A common first check should be the rack power supply. If the 3500/15 is unstable or has lost an output rail, several otherwise healthy monitoring modules can appear faulty simultaneously.

Typical Applications

• Steam Turbine — Powering a 3500 machinery protection rack used for vibration, position, speed, and other turbine measurements.
• Gas Turbine — Supplying the monitoring rack associated with turbine and compressor machinery protection.
• Oil & Gas Compressor Train — Maintaining power to continuous vibration and machinery condition monitoring electronics.
• Power Generation — Rack-level power for generator, turbine, and auxiliary rotating-equipment monitoring.

Technical Pitfalls to Avoid

1. Do not confuse AC and DC versions.
   The 3500/15 family contains different input-voltage configurations. Check the complete part number and plant supply before ordering.
2. Do not diagnose a rack-wide fault as multiple module failures immediately.
   If several cards lose communication or show unhealthy status together, inspect the power supply and rack power distribution first.
3. Check the input supply before condemning the 3500/15.
   A missing upstream fuse, loose terminal, degraded breaker, or incorrect AC voltage can produce the same symptom as a failed power supply.

Standard Operating Procedure (SOP) for Quality Control

Power supplies deserve a slightly different QC approach from signal-processing modules. The unit should be tested under controlled electrical conditions rather than simply checked for front-panel status.

1. Inbound Inspection

Every incoming 3500/15 should undergo:

• Part-number verification against 125840-02.
• Inspection of the housing and front panel.
• Connector and pin inspection.
• Examination for oxidation, corrosion, contamination, or physical impact.
• Inspection of mounting hardware and rack interface.
• Verification of identification labels and revision information.
• Visual inspection of accessible components for obvious damage.

2. Live Functional Testing

Using an appropriate 3500 test rack and controlled AC source:

• Apply the specified AC input within the permitted range.
• Confirm correct startup behavior.
• Verify that the rack recognizes the power supply.
• Measure the relevant DC output rails under appropriate load.
• Check voltage stability during load changes.
• Verify that installed rack modules initialize normally.
• Monitor the supply for abnormal noise, heating, or intermittent operation.

A power supply that turns on is not necessarily a healthy power supply. Output stability under load is the meaningful test.

3. Final Packaging

After QC:

• Package the unit in anti-static and electrically protective material.
• Protect connectors and mounting interfaces.
• Apply QC identification.
• Record measured input/output test results.
• Package to prevent impact and moisture exposure during storage.

The objective is documented electrical verification, not a promise that an electronic power supply cannot fail after installation.

Frequently Asked Questions

Q1: Can I replace another Bently Nevada 3500/15 with 125840-02?

Only after confirming the complete power-supply configuration. The 3500/15 family includes different input-voltage versions, so the existing plant supply and rack configuration must match the replacement. Do not select a replacement based solely on the “3500/15” designation.

Q2: What input voltage does the 125840-02 use?

The 125840-02 is an AC-input configuration associated with 125 VAC service. The exact allowable operating range should be checked against the OEM documentation for the specific revision being installed.

If the plant has 120 VAC rather than nominal 125 VAC, verify the permitted input range before installation rather than assuming that the two systems are interchangeable.

Q3: What happens if the 3500/15 power supply fails?

The consequences can extend beyond one monitoring channel. The 3500/15 supplies the rack electronics, so a power-supply failure can cause multiple installed monitoring modules to lose power or become unhealthy.

If several modules fail simultaneously, check rack power before replacing individual monitor cards.

Q4: Can I hot-swap the 3500/15 125840-02?

Do not assume live replacement is acceptable. The power supply is directly involved in energizing the 3500 rack. Removing it while the system is operating can interrupt power to monitoring modules and potentially affect machinery protection.

In our experience, a power-supply replacement should be treated as a planned maintenance activity unless the exact OEM procedure and plant protection philosophy explicitly support live replacement.

Q5: Will replacing the power supply erase the 3500 rack configuration?

The power supply is not normally where the monitoring configuration is maintained. However, that does not mean replacement is risk-free. Before maintenance, document the rack status and configuration, and verify that all monitoring modules return to the expected operating state after power restoration.

Q6: Why would several 3500 modules show faults after a power event?

Start with the supply path:

1. Check incoming AC voltage.
2. Check upstream protection and wiring.
3. Check the 3500/15 output rails.
4. Check rack power distribution.
5. Confirm module startup status.
6. Review the event/fault information from the 3500 system.

A simultaneous failure across multiple cards points toward a common power or rack-level problem before it points toward several independent module failures.

Q7: What should I verify before purchasing Bently Nevada 3500/15 125840-02?

At minimum, confirm:

• 3500/15
• 125840-02
• Nominal plant AC voltage
• Input frequency
• Existing rack configuration
• Power-supply revision
• Required environmental rating
• Existing replacement-part documentation
• Whether the application requires a standard or specific transient-data configuration

Field note: Power supplies are easy to misidentify because several 3500/15 variants share similar mechanical characteristics. Match the full part number and electrical input requirements before installation. A physically compatible module is not automatically an electrically compatible replacement.
