Bently Nevada 3500/42 140471-01 Product Description

Product Overview

Bently Nevada 3500/42 140471-01 is a Proximitor/Velomitor I/O module used with the Bently Nevada 3500 machinery protection platform. The Bently Nevada 3500/42 140471-01 provides the physical interface between proximity probes, seismic/velocity transducers, and the 3500/42M Proximitor/Seismic Monitor. It is designed for four-channel machinery monitoring applications and supports signal acquisition for radial vibration, thrust position, acceleration and related shaft-dynamic measurements.

The 3500/42 140471-01 Bently Nevada uses internal terminations, allowing field transducers to be wired directly to the I/O module without requiring separate external termination blocks. The module passes conditioned transducer signals to the associated monitor through the 3500 rack backplane, where monitored values can be compared against configurable alarm thresholds for machinery protection.

For existing turbine, compressor, generator and other rotating-equipment protection systems, Bently Nevada 3500/42 140471-01 is particularly valuable as a replacement I/O component. Its dedicated interface architecture allows maintenance teams to restore an existing 3500 monitoring channel without replacing the complete rack or changing the established machinery-protection configuration.

Technical Specifications

The exact sensor configuration depends on the complete 3500/42M assembly and I/O variant. Available documentation identifies 140471-01 as the Prox/Velomitor I/O module with internal terminations.

Main Features and Advantages

Four-Channel Transducer Interface

The Bently Nevada 3500/42 140471-01 provides four independent measurement channels for compatible proximity and seismic/velocity transducers. This enables one module to collect several important mechanical condition parameters from the same rotating machine.

Internal Termination Design

A key feature of 3500/42 140471-01 is its internal termination arrangement. Field transducer connections are terminated directly within the I/O module, eliminating the need for separate external termination blocks in the applicable configuration. This can simplify cabinet wiring and reduce the number of external connection points.

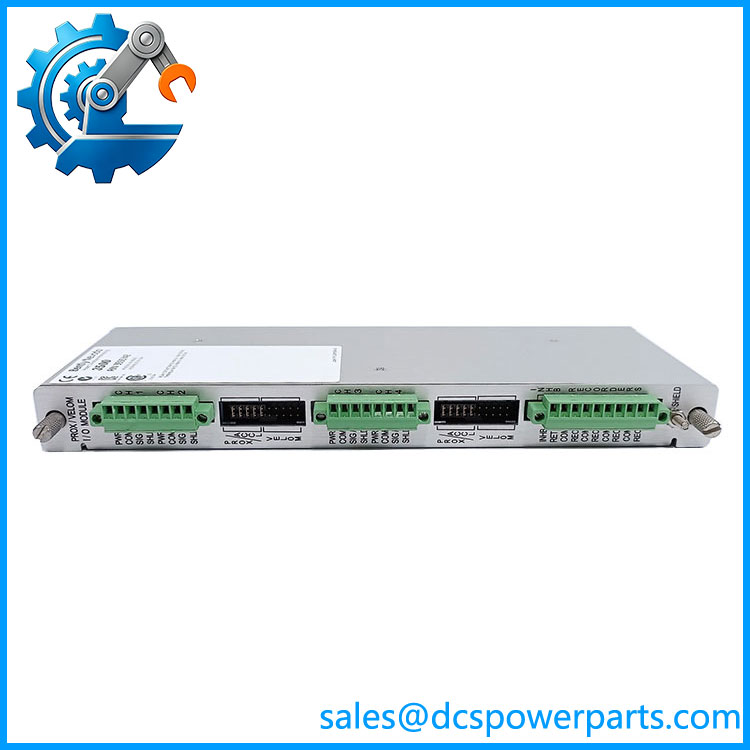

140471-01

Flexible Machinery Measurement

The module can support channel-pair configurations for functions such as radial vibration, thrust position, acceleration and shaft absolute measurement. This allows the same 3500/42M monitoring platform to be adapted to different machinery-protection requirements.

Direct Integration with 3500/42M

The 140471-01 Bently Nevada is mounted in the I/O position directly behind the corresponding 3500/42M monitor and connects through the 3500 rack backplane. This architecture separates field transducer interfacing from the main monitoring electronics while maintaining a compact rack-based installation.

Machinery Protection and Alarm Processing

The associated 3500/42M monitor conditions the incoming signals and compares measured parameters with user-programmable alarm thresholds. This enables the overall system to provide early warning and protective functions when vibration or shaft-position conditions exceed configured limits.

Suitable for Industrial Maintenance

Because the Bently Nevada 3500/42 140471-01 is a dedicated I/O component, replacement can be performed at the module level when an existing installation develops an I/O fault. This is particularly useful for long-life machinery-protection systems where replacing the complete monitoring rack would be unnecessarily expensive or disruptive.

Application Fields

Bently Nevada 3500/42 140471-01 is widely applicable to machinery-protection systems for critical rotating equipment. In thermal and combined-cycle power plants, it can be used with the 3500/42M monitor to interface vibration and position sensors installed on steam turbines, gas turbines, generators, pumps and auxiliary machinery.

In oil and gas and petrochemical facilities, the 3500/42 140471-01 Bently Nevada can interface proximity probes and seismic/velocity transducers on compressors, pumps, turbines and other critical rotating assets. Continuous vibration and shaft-position measurement helps operators detect developing mechanical problems before they result in major equipment damage.

For refinery, LNG and pipeline applications, the module can form part of a machinery protection system monitoring compressors, refrigeration equipment, pump trains and other rotating assets. Its four-channel architecture is useful where multiple vibration or position measurements need to be integrated into a compact 3500 rack.

The module is also suitable for mining, metallurgy, pulp and paper, and heavy manufacturing applications. Fans, blowers, large motors, pumps, gearboxes and other rotating machinery can benefit from continuous condition monitoring. In existing Bently Nevada installations, 140471-01 is especially useful for maintaining the original sensor wiring and 3500 rack architecture.

Related Products

• 3500/42M — Proximitor/Seismic Monitor that works with the 140471-01 I/O module to process vibration, position and seismic signals.
• 3500/42-09-01 — Complete 3500/42 configuration incorporating 176449-02 monitor hardware and 140471-01 Prox/Velomitor I/O with internal terminations.
• 176449-02 — Spare monitor module associated with the 3500/42M Proximitor/Seismic Monitor configuration.
• 3500/40M — Related Bently Nevada Proximitor/Seismic monitoring module for machinery protection applications.
• 3500/20 — Rack Interface Module used for communication and rack-level integration within the 3500 system.
• 3500/32 — Four-channel relay output module for alarm and protective relay functions.
• 3500/15 — Power Supply module for the Bently Nevada 3500 rack.
• 3300 XL Proximity Probes — Compatible Bently Nevada eddy-current sensing technology used for shaft vibration and position measurement in applicable configurations.
• 3500/22M — Transient Data Interface module providing rack communication and data acquisition functions in the 3500 platform.
