Description
The part number 3500/92 (Catalog / Part Number: 136180-01) corresponds to a machinery protection and monitoring system hardware component manufactured by Bently Nevada (Baker Hughes / formerly GE).
Component Overview
-
Manufacturer: Bently Nevada
-
Product Type: 3500/92 Communication Gateway Module
-
Product Family: Bently Nevada 3500 Series Machinery Protection System
Key Functions & Features
-
Integration: Designed to gather all rack-monitored values, statuses, and alarm data from a 3500 rack and interface them seamlessly with external process control, DCS, SCADA, and automation systems.
-
Communication Interfaces: Supports both Ethernet (TCP/IP) and serial communications (RS232 / RS422 / RS485).
-
Supported Protocols:
-
Modicon Modbus (via serial and Modbus/TCP over Ethernet)
-
Proprietary Bently Nevada protocol (used for communicating with 3500 Rack Configuration and System 1 / Data Acquisition Software).
-
-
Software Utility: Features a Configurable Modbus Register Utility to map rack data flexibly based on control system requirements.

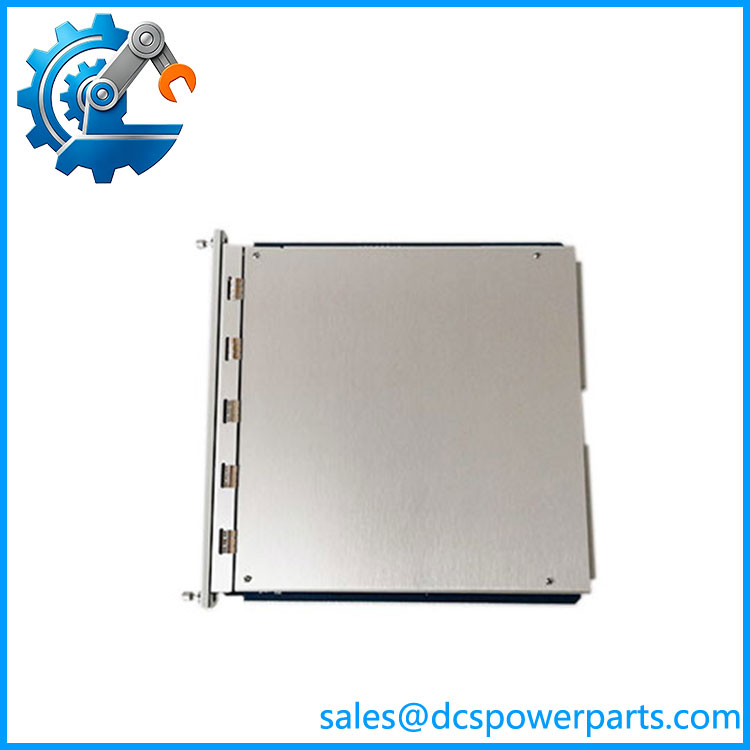

136180-01
Product Overview
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 3500/92，Assembly PN：136180-01 |
| Module Type | Rack Communication Gateway Module |
| Manufacturer | Bently Nevada (GE Vernova) |
| Applicable Platform | 3500 Machinery Protection Rack |
| Mounting Form | Full-height single slot plug-in module for 3500 rack |
| Power Supply | Powered by rack backplane, typical power consumption 5 W |
| Communication Interfaces | • RJ45 Ethernet (10BASE-T)
• Multiple serial ports：RS232 / RS422 / RS485 (DB9) |
| Supported Protocols | Modbus TCP, Modbus RTU, Bently proprietary host protocol |
| Core Functions | Real-time process data transmission, alarm uploading, remote rack configuration, fault event recording, Modbus register custom mapping |
| Hot Swap | Supported (compatible 3500 rack) |
| Operating Temperature | -30 ℃ ~ +65 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (installed inside control cabinet) |
| Front Panel Indicators | OK status, bus communication TX/RX LED indicators |
| Commissioning Software | 3500 Rack Configuration Software |
| Spare Part Status | Original production discontinued; surplus new and refurbished modules available |
Key Features
- Supports configurable Modbus register mapping, flexible selection of monitoring parameters uploaded to upper control systems
- Simultaneous operation of Ethernet and serial channels; data can be sent to two independent control systems at the same time
- Built-in communication self-diagnosis, detects cable disconnection, node offline and communication overtime
- Electrical isolation on communication ports, enhances anti-interference capability in turbine vibration cabinet environments
- Compatible with all standard 3500 series monitoring modules (vibration, speed, temperature, relay modules)
- Strict full part number verification required; different hardware revisions cannot be directly interchanged without configuration download
- Essential spare communication hardware for power plant steam/gas turbine monitoring & protection racks
