Description
Product Features

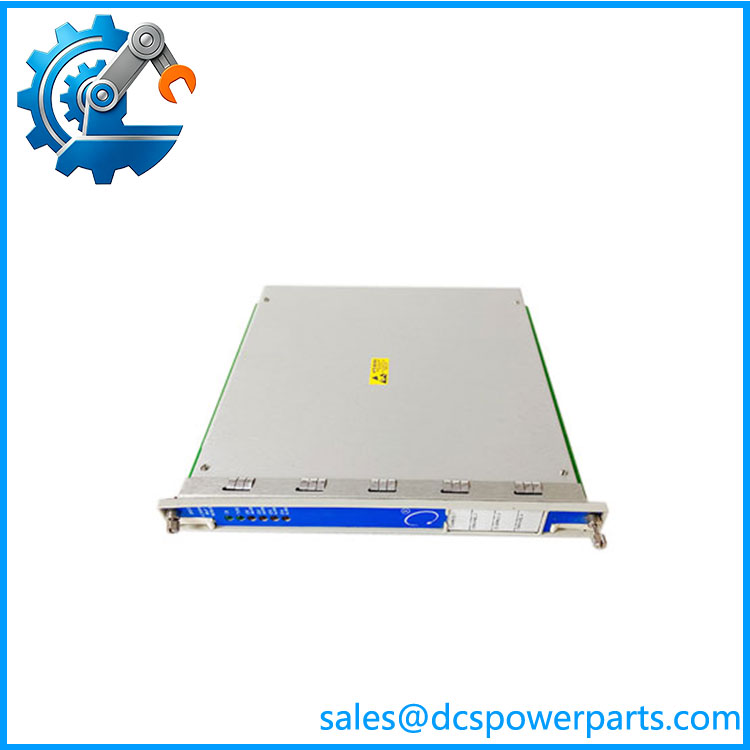

The 3500/32 125712-01 is a high-performance 4-channel programmable relay output module developed by Bently Nevada, serving as a core alarm and trip output component for the 3500 machinery condition monitoring system. It provides reliable relay switching control for industrial rotating equipment protection, realizing accurate alarm prompt and safety interlock trip functions, and is widely used in high-reliability industrial safety monitoring scenarios.
1. Four Independent Relay Channels: Equipped with 4 fully independent SPDT relay output channels, each channel supports separate programmable logic configuration, which can independently respond to vibration, temperature, speed and other monitoring fault signals to achieve multi-point safety protection.
2. Fast Response & Stable Output: The relay response time is less than 10ms, with stable and sensitive switching action. It can quickly trigger alarm or trip instructions when equipment abnormalities occur, effectively avoiding mechanical failure and production safety accidents.
3. High Safety & Certification: Complies with API 670 industrial machinery protection standards, with CE and RoHS certifications. It supports SIL safety level application requirements, effectively preventing false tripping and ensuring the stability of industrial production processes.
4. Powerful Programmable Logic: Supports flexible custom alarm logic, threshold linkage and interlock rules. It can match different equipment monitoring requirements, realizing personalized protection strategy configuration for various rotating machinery.
5.Excellent Environmental Adaptability: Adopts industrial-grade rugged design, with ultra-wide temperature operating range and excellent electromagnetic interference resistance. It can operate stably in harsh industrial environments such as high temperature, humidity and strong electromagnetic interference.
6. Standard System Compatibility: Perfectly compatible with Bently Nevada 3500 series rack systems and supporting monitoring modules, supports seamless docking with System 1 monitoring software and industrial control systems such as DCS and SCADA.
7. Hot-swap & Easy Maintenance: Supports online hot-swap installation and replacement without shutting down the system, minimizing equipment downtime. The standard single-slot modular design saves installation space and simplifies daily maintenance.
125712-01
Product Parameters
|
Item
|
Specification
|
|---|---|
|
Part Number
|
125712-01
|
|
Product Model
|
3500/32 4-Channel Relay Module
|
|
Brand
|
Bently Nevada (Baker Hughes)
|
|
Channel Quantity
|
4 Independent Relay Output Channels
|
|
Relay Type
|
SPDT (Single Pole Double Throw)
|
|
Contact Capacity
|
5A @ 250VAC
|
|
Response Time
|
≤ 10ms
|
|
Communication Protocol
|
3500 System Bus, RS-485 Modbus RTU
|
|
Operating Temperature Range
|
-20℃ ~ +70℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Power Supply
|
Redundant 24VDC Industrial Power Supply
|
|
Installation Method
|
3500 Series Standard Single-slot Rack Mounting
|
|
Certification Standard
|
API 670, CE, RoHS, SIL Safety Certification
|
|
Weight
|
Approx 0.5kg
|
|
Core Function
|
Equipment alarm output, safety interlock trip, fault signal linkage control
|
Product Usage Method
1. Pre-installation Inspection: Check the module appearance for damage, deformation or loose accessories, and confirm that the part number and specifications match the 3500 rack system. Verify the integrity of wiring terminals and communication interfaces to ensure installation compatibility.
2. Static Protection & Environment Preparation: Complete the operation in a dry, dust-free industrial environment. Wear anti-static gloves and wrist straps to prevent static electricity from damaging the internal circuit chips of the module and affecting subsequent use.
3. Module Installation: Utilize the hot-swap function to insert the module into the designated slot of the 3500 rack smoothly without shutting down the system. Tighten the fixing screws to ensure reliable contact between the module and the rack backplane.
4. Wiring Connection: Connect power lines, relay output signal lines and bus communication lines in strict accordance with the official wiring manual. Distinguish alarm and trip signal terminals to avoid wrong wiring and short-circuit faults.
5. System Parameter Configuration: Connect the upper computer configuration software, log in to the 3500 system platform, set independent logic parameters for each of the 4 relay channels, configure alarm thresholds, linkage rules and trip output modes according to on-site equipment protection requirements.
6. Debugging & Function Verification: Download the configured parameters to the module, start the system self-diagnosis program, check the module communication status and channel output accuracy. Simulate equipment fault signals to verify that the relay alarm and trip functions respond normally.
7. Formal Operation & Daily Maintenance: After the debugging is qualified, put the module into long-term online monitoring operation. Regularly check the module operating temperature, wiring tightness and relay working status, back up configuration data regularly, and clean surface dust to ensure stable and reliable operation.
Product Application Fields
1. Thermal Power Industry: Applied to safety protection monitoring of core equipment such as steam turbines, generators, fans and water pumps in thermal power plants, providing accurate alarm and interlock trip protection for rotating units.
2. Petroleum & Chemical Industry: Widely used in oil and gas field compressor units, chemical plant turbo machinery, delivery pumps and other key equipment, realizing real-time fault alarm and safety interlock control to avoid equipment failure and process risks.
3. Metallurgy & Building Materials Industry: Suitable for condition monitoring and safety protection of large rolling mill auxiliary equipment, high-speed fans, kiln transmission rotating machinery in steel plants and cement plants.
4. New Energy & Nuclear Power Industry: Used for safety monitoring of generating units and auxiliary rotating equipment in nuclear power, wind power and gas power plants, meeting high-standard industrial safety protection and SIL level application requirements.
5. Marine & Offshore Engineering: Applied to condition protection of offshore platform compressors, marine turbo generators and power rotating equipment, adapting to complex and harsh offshore industrial working conditions.
6. General Industrial Automation: Suitable for all kinds of large-scale high-speed rotating machinery production and monitoring occasions in industrial manufacturing, providing reliable safety interlock guarantee for automated production lines.
