Description
Product Features
The 138607-01 is a core 3500/22M Transient Data Interface (TDI) module developed by Bently Nevada, serving as the central communication gateway and system management hub for the 3500 machinery condition monitoring system. It integrates rack interface, high-speed data acquisition and communication processing functions to ensure stable and efficient operation of the entire monitoring system.
1. High-efficiency Data Transmission: Supports 10/100Base-T/TX Ethernet, fiber optic Ethernet, RS-232 and USB-B multi-interconnection modes, with a maximum data transfer rate of 100 Mbit/s, realizing real-time transmission of steady-state and transient waveform data.
2. Hot-swap Support：Allows online module replacement without powering off the entire 3500 rack system, minimizing system operation interruption and reducing maintenance difficulty and downtime loss.
3. Powerful Data Acquisition & Analysis: Continuously collects dynamic monitoring data such as equipment vibration, axial displacement and rotating speed, and supports high-resolution transient data capture for advanced mechanical fault diagnosis and orbital analysis.
4. Excellent System Compatibility: Perfectly matches Bently Nevada 3500 series monitoring modules, and is fully compatible with System 1 machinery condition monitoring software and 3500 configuration software to realize one-stop system debugging and data management.
5. High Industrial Adaptability: Adopts industrial-grade design, with wide temperature and humidity resistance, excellent electromagnetic compatibility, stable operation in harsh industrial environments such as high temperature, high humidity and electromagnetic interference.
6. Built-in Self-diagnosis Function: Equipped with intelligent self-test and fault alarm mechanisms, which can automatically detect module operating abnormalities, ensure system operational safety, and facilitate quick troubleshooting for maintenance personnel.
7. Simple Expansion & Integration: Supports seamless connection with industrial control systems such as DCS and SCADA, realizing data interconnection and remote monitoring of industrial equipment, and adapting to diversified industrial monitoring architectures.

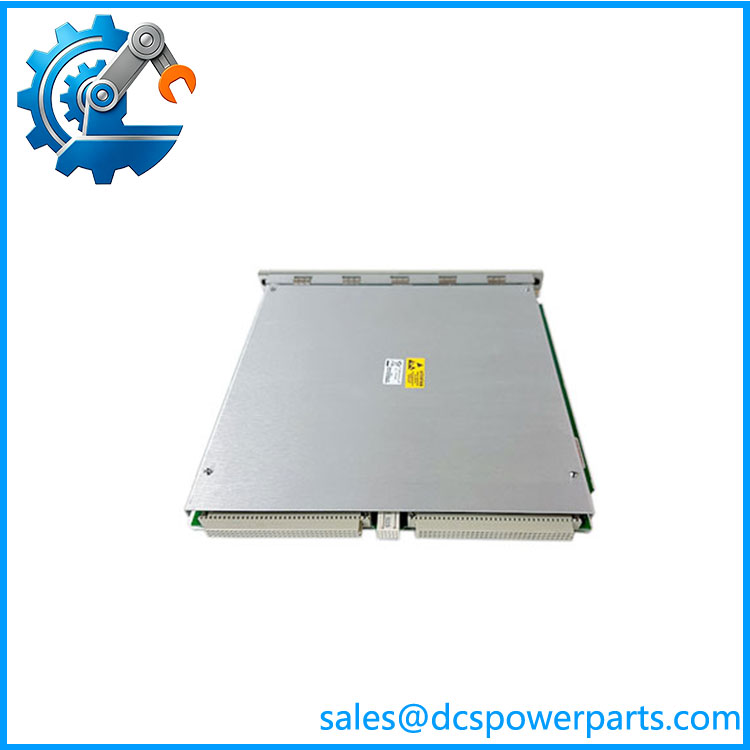

138607-01
Product Parameters
|
Item
|
Specification
|
|---|---|
|
Part Number
|
138607-01
|
|
Product Model
|
3500/22M Transient Data Interface (TDI) Module
|
|
Applicable System
|
Bently Nevada 3500 Machinery Condition Monitoring System
|
|
Core Function
|
System communication gateway, steady-state & transient data acquisition, system configuration management, data transmission
|
|
Communication Interfaces
|
10/100Base-T/TX Ethernet, 100Base-FX Fiber Optic, RS-232, USB-B
|
|
Max Data Transfer Rate
|
100 Mbit/s
|
|
Power Consumption
|
10.5W
|
|
Power Supply
|
24V DC Industrial Power Supply
|
|
Operating Temperature
|
-30℃ ~ +65℃
|
|
Storage Temperature
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Support Function
|
Online hot swap, self-diagnosis, real-time data recording, configuration storage
|
|
Compatible Software
|
Bently Nevada System 1 Software, 3500 System Configuration Software
|
|
Installation Method
|
3500 Standard Rack Plug-in Installation
|
Product Usage Method
1. Installation Preparation: Confirm the 3500 rack is in normal standby state. This module needs to be installed in the designated slot adjacent to the rack power supply to ensure stable power supply and communication connection.
2. Module Installation: Align the 138607-01 module with the rack slot, insert it firmly and lock the fixing buckle. Utilize the hot-swap function to complete installation without shutting down the system to avoid equipment operation interruption.
3. Wiring Connection: Connect Ethernet, fiber optic or USB cables according to on-site monitoring requirements, and complete the matching wiring with rack power supply and signal modules to ensure reliable circuit connection.
4. System Configuration: Connect the upper computer configuration software to the module, set communication protocols, data acquisition parameters and equipment monitoring channels, and match the parameter thresholds of on-site monitoring sensors.
5. Parameter Download & Debugging: Download the configured parameters to the module, start the system self-diagnosis program, check the module operating status, signal acquisition accuracy and data transmission stability, and eliminate abnormal faults.
6. Online Operation: After debugging is completed, enable the formal monitoring mode. The module will automatically collect real-time operating data of rotating equipment and transmit it to the upper monitoring software for data display, storage and analysis.
7. Daily Maintenance: Regularly check module operating temperature, communication status and wiring tightness, back up system configuration data regularly, and clean dust on the module surface to ensure long-term stable operation.
Product Application Fields
1. Power Generation Industry: Widely used in thermal power, hydropower, gas power and nuclear power plants for condition monitoring of core equipment such as steam turbines, gas turbines, generators and fan units, realizing real-time vibration and speed data analysis.
2. Petroleum & Chemical Industry: Applied to monitoring of natural gas compressors, oil delivery pumps, turbo machinery and other rotating equipment in oil and gas fields and chemical plants, providing transient data support for equipment fault early warning and predictive maintenance.
3. Metallurgical & Building Materials Industry: Used for operating state monitoring of large-scale fans, rolling mill auxiliary machinery, kiln transmission equipment and high-speed rotating units in steel plants and cement plants.
4. Marine & Offshore Industry: Suitable for condition monitoring of marine turbo generators, offshore platform compressors and power rotating equipment, adapting to complex offshore working conditions.
5. General Industrial Manufacturing: Applied to real-time monitoring and fault diagnosis of various high-speed rotating machinery in manufacturing enterprises, helping enterprises realize equipment health management, reduce failure rate and extend equipment service life.
