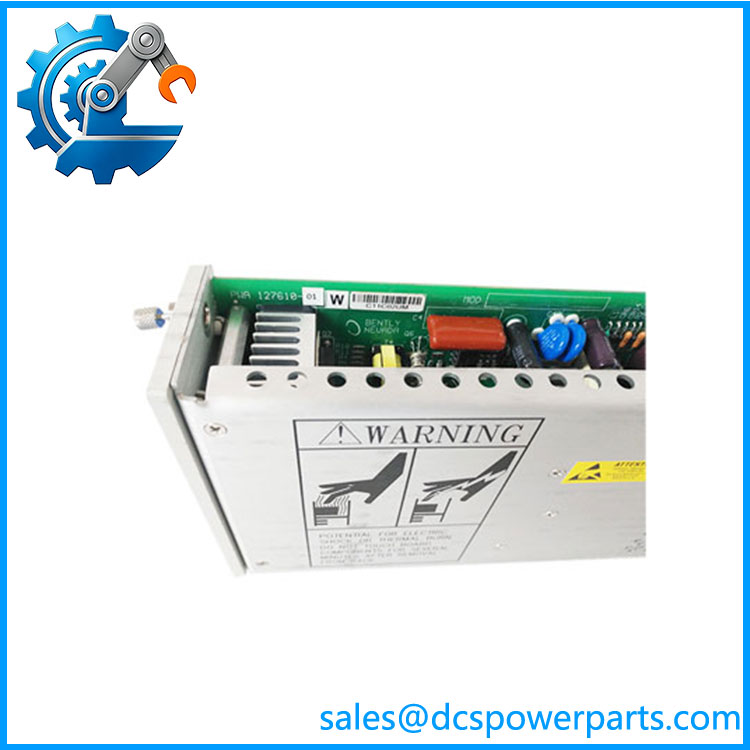

The 3500/15 127610-01 is a dedicated industrial AC power supply module developed by Bently Nevada for the 3500 machinery condition monitoring system. It serves as the core power supply unit for the entire 3500 rack system, providing stable, isolated and anti-interference power output for all monitoring modules, ensuring continuous and reliable operation of industrial equipment monitoring and protection systems.
1. Redundant Power Support: Supports single power supply independent operation and dual redundant power supply configuration. Dual-module hot backup design effectively avoids system shutdown risks caused by single power supply failure, greatly improving overall system operational reliability.
2. Wide Input Voltage Adaptation: Adopts wide-range AC input design, compatible with various industrial power supply environments, with strong adaptability to unstable on-site voltage fluctuations, suitable for complex industrial power supply conditions.
3. Intelligent Self-monitoring Function: Built-in real-time power supply status detection circuit, equipped with front-panel “Supply OK” LED indicator. It can automatically monitor output voltage abnormality, overcurrent and undervoltage faults, and timely feedback operating status.
4. Industrial-grade Stability & Protection: Integrates overvoltage, overcurrent, short circuit and surge protection mechanisms. It features excellent electromagnetic shielding and anti-interference performance, resisting harsh industrial interference such as strong electromagnetic radiation and voltage spikes.
5. Hot-swap Replaceable Design: Supports online hot-swap installation and replacement without shutting down the 3500 rack system, realizing maintenance without system downtime, reducing production loss and maintenance difficulty.
6. High System Compatibility: Fully compatible with all modules of the Bently Nevada 3500 series monitoring system, providing stable power support for vibration monitoring, temperature monitoring, relay output and other functional modules.
7. Rugged Environmental Adaptability: Adopts reinforced industrial hardware structure, with ultra-wide temperature working range and moisture resistance, stably applicable to high-temperature, high-humidity and high-vibration industrial working environments.
127610-01
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
127610-01
|
|
Product Model
|
3500/15 AC Power Supply Module
|
|
Brand
|
Bently Nevada (Baker Hughes)
|
|
Input Power Type
|
AC Alternating Current
|
|
Input Frequency
|
47Hz ~ 63Hz
|
|
Output Capacity
|
High voltage DC: 2.5A Max; Low voltage DC: 10.0A Max
|
|
Core Function
|
System power supply conversion, stable power output, power fault self-diagnosis, overcurrent/overvoltage protection
|
|
Status Indicator
|
Front-panel “Supply OK” LED status display
|
|
Working Temperature Range
|
-30℃ ~ +65℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Installation Method
|
3500 Series Standard Single-slot Rack Mounting
|
|
Support Function
|
Dual redundant backup, online hot-swap, intelligent fault detection, multiple safety protection
|
|
Applicable System
|
Bently Nevada 3500 Full Series Machinery Monitoring System
|
|
Certification Standard
|
API 670, CE, RoHS, Industrial EMC Certification
|
Product Usage Method
1. Pre-installation Inspection: Check the module appearance, terminals and indicator lights for damage or defects. Verify that the module model matches the 3500 rack system, and confirm that the on-site AC power supply meets the module input specifications to avoid mismatched power supply damage.
2. Static Protection Preparation: Complete the operation in a dry and dust-free industrial environment. Wear anti-static gloves and wrist straps to prevent static electricity from damaging the internal power conversion circuit and precision components of the module.
3. Module Installation & Fixation: Utilize the hot-swap function to insert the 3500/15 power supply module into the designated power slot of the 3500 rack. Tighten the fixing screws to ensure reliable contact between the module and the rack backplane bus.
4. Power Wiring Connection: Connect the AC input power cable strictly in accordance with the official wiring manual, confirm the positive and negative wiring sequence, ensure firm wiring, and avoid virtual connection, short circuit or wrong wiring faults.
5. Power-on Inspection & Debugging: Switch on the on-site AC power supply, observe the front-panel “Supply OK” LED status. If the indicator is normal, the module outputs stable DC power to supply power for the entire rack module. Check the system self-diagnosis information to confirm no power supply abnormality.
6. Redundant Configuration Debugging (Optional): For dual redundant power supply systems, install two 3500/15 modules in upper and lower designated slots respectively. Test the single power supply switching function to ensure seamless hot backup switching without system power failure.
7. Daily Operation & Maintenance: Regularly check the module operating temperature, indicator status and wiring tightness. Clean surface dust periodically, inspect power output stability, and replace faulty modules in time to ensure long-term stable power supply of the monitoring system.
