Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500 |
| Rack Module | 3500/20 Rack Interface Module |
| Part Number | 125768-01 |
| Full Assembly Association | 3500/20-01-02-00 |
| Module Type | RIM I/O Module |
| Communication Interface | RS-232 / RS-422 |
| Rack Position | Rear I/O position associated with the 3500/20 RIM |
| Rack Function | Rack configuration and machinery data retrieval |
| External Communication Compatibility | TDXnet, TDIX, DDIX |
| Rack Requirement | One RIM per 3500 rack |
| TMR Requirement | TMR applications require the TMR version of the RIM |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Maximum Humidity | 95%, non-condensing |
| Approx. I/O Module Dimensions | 241.3 × 24.4 × 99.1 mm (9.50 × 0.96 × 3.90 in.) |
| Approx. I/O Module Weight | 0.45 kg (1.0 lb.) |
The 125768-01 is specifically identified as the RIM I/O Module with RS-232/RS-422 interface. The 3500/20 architecture also includes the standard and TMR RIM variants, so the complete rack configuration must be checked rather than treating the rear I/O module as a universal replacement.
Product Introduction
Bently Nevada 3500/20 125768-01
The Bently Nevada 3500/20 125768-01 is the RIM I/O module with RS-232/RS-422 connectivity used with the 3500 Machinery Protection System. It works with the 3500/20 Rack Interface Module to provide rack configuration and machinery-data communication, including interfaces to compatible Bently Nevada external communication processors.
Its main value is maintaining the communication and configuration path of an existing 3500 rack without replacing the entire monitoring system. For legacy machinery protection installations, this makes the 125768-01 a practical spare when a failed rear I/O assembly is holding up maintenance work.

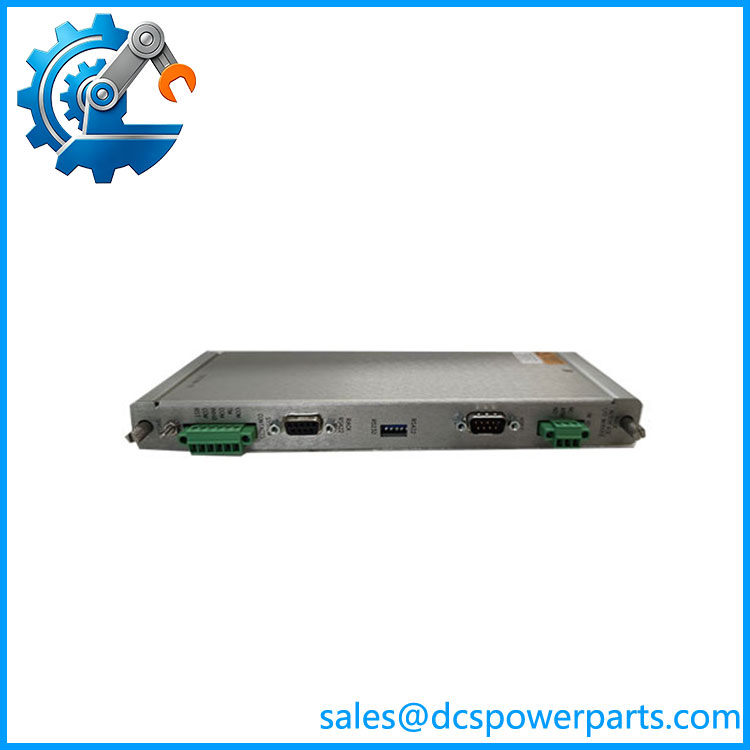

125768-01
Application Scenarios & Field Pitfalls
Engineering Pain Point
A common maintenance problem on older machinery-monitoring systems is not the vibration monitor itself. It is the interface hardware around the rack. A failed or mismatched RIM I/O module can prevent technicians from configuring the rack or retrieving machinery information even though the individual monitor channels are otherwise operating. The 125768-01 is therefore the kind of spare that matters during planned shutdowns and emergency maintenance on installed 3500 systems.
Typical Applications
- Power Generation — Steam turbine and generator machinery protection racks requiring communication between the 3500 rack and supervisory systems.
- Oil & Gas — Compressor, pump, turbine, and rotating-equipment monitoring installations where 3500 racks remain in service.
- Petrochemical Processing — Machinery protection systems supporting critical rotating equipment such as compressors and process pumps.
- Industrial Manufacturing — Legacy condition-monitoring installations where existing 3500 racks must remain operational during PLC/DCS modernization projects.
Technical Pitfalls to Avoid
- Do not confuse 125768-01 with the complete 3500/20 RIM.
The 125768-01 is the rear RIM I/O module with RS-232/RS-422 interface. The associated front RIM assembly has its own part number. A purchase order should identify the exact card or complete assembly required. - Check the RIM configuration before installation.
Standard and TMR applications are not interchangeable by assumption. Bently Nevada specifies a TMR RIM for systems configured for Triple Modular Redundancy. Do not substitute a standard RIM simply because the connector arrangement appears similar. - Verify communication hardware and cabling.
RS-232 and RS-422 are not interchangeable wiring standards. Check the installed communication processor, cable assembly, termination, and interface requirements before commissioning. The 3500 documentation lists dedicated cables and converters for these interfaces. - Match the hardware revision and firmware environment.
Legacy 3500 racks can contain different board revisions. When replacing a module in an operating plant, record the existing assembly numbers and revisions before removing anything. Verify the applicable Bently Nevada documentation for the exact rack configuration.
Related Products
- Bently Nevada 3500/20 125744-02 — Standard Rack Interface Module. This is the primary front RIM associated with the 125768-01 rear I/O module in a standard 3500/20 configuration. The two should be treated as complementary components rather than interchangeable part numbers.
- Bently Nevada 3500/20 125744-01 — TMR Rack Interface Module. Intended for Triple Modular Redundancy applications where the RIM also performs monitor-channel comparison functions. Use this configuration when the rack architecture requires TMR.
- Bently Nevada 3500/20 135031-01 — RIM I/O Module with modem interface. Functionally related to 125768-01, but the external communication interface is different. Select according to the existing communication architecture rather than substituting based only on physical fit.
- Bently Nevada 3500/20 125760-01 — Data Manager I/O Module. Used for the data-management communication path and is not a direct replacement for the 125768-01 RIM I/O module.
- Bently Nevada 3500/22M — Transient Data Interface Module. This is a later-generation interface solution within the 3500 system and provides rack configuration plus connectivity to System 1 through Ethernet. It should be evaluated when planning a modernization rather than used as a direct drop-in substitute for 125768-01.
- Bently Nevada 3500/15 — AC/DC Power Supply module for the 3500 rack. It is complementary rather than functionally equivalent; useful when troubleshooting a rack-level power problem alongside RIM or monitor-module maintenance.
- Bently Nevada 3500/25 — Enhanced Keyphasor Module. It handles Keyphasor-related functions and belongs to a different part of the machinery protection architecture. It is relevant when a 3500 rack requires additional rotational reference inputs, not as a replacement for the RIM I/O module.
- Bently Nevada 3500/42M — Proximity/Seismic Monitor. This is a monitoring module rather than a rack-interface component. It is relevant for machinery protection channels measuring shaft position, vibration, and related machine-condition parameters.
Procurement note: For a 125768-01 replacement, verify the complete 3500/20 assembly number, front RIM part number, rear I/O part number, hardware revision, and required communication interface before ordering. The part number 125768-01 specifically identifies the RS-232/RS-422 RIM I/O module; it should not automatically be substituted with another 3500/20 rear I/O variant.
