Description

The 3500/54 (Part Number: 133396-01) is an Overspeed Detection Input/Output (I/O) Module manufactured by Bently Nevada (Baker Hughes) as part of their flagship 3500 Series Machinery Protection System.

Key Technical Specifications & Features

• Primary Function: Designed to interface speed-measuring sensors (such as proximity probes or magnetic pickups) with the 3500 system to continuously monitor rotational speed and provide critical overspeed protection and trip commands.

• System Compatibility: Works in conjunction with the 3500/54 (or 3500/53) front-end monitoring modules within a standard 3500 rack environment.

• Inputs: Accepts speed pulse input signals from eddy current proximity sensors or magnetic pickups.

• Speed Range & Accuracy: Capable of measuring high-speed rotations up to 50,000 RPM (depending on configuration/events per revolution) with high precision (typically $\pm0.1\%$ of reading).

• Response Time: Ultra-fast response time of $< 10\text{ ms}$ to ensure safety interlocks trip immediately during catastrophic overspeed events.

• Outputs:

  • Provides safety-rated relay alarm/trip outputs.

  • Generates 4–20 mA full-scale analog outputs for integration with process control systems (DCS/PLC).

• Certifications & Compliance: Built to meet API 670 standards, SIL 2 safety compliance, and hazardous area certifications (such as ATEX/IECEx Zone 2).

Typical Applications

• Steam, gas, and hydro turbines

• Large industrial compressors and pumps

• Critical rotating machinery requiring reliable, fail-safe overspeed shutdown protection to prevent catastrophic equipment failure.

133396-01

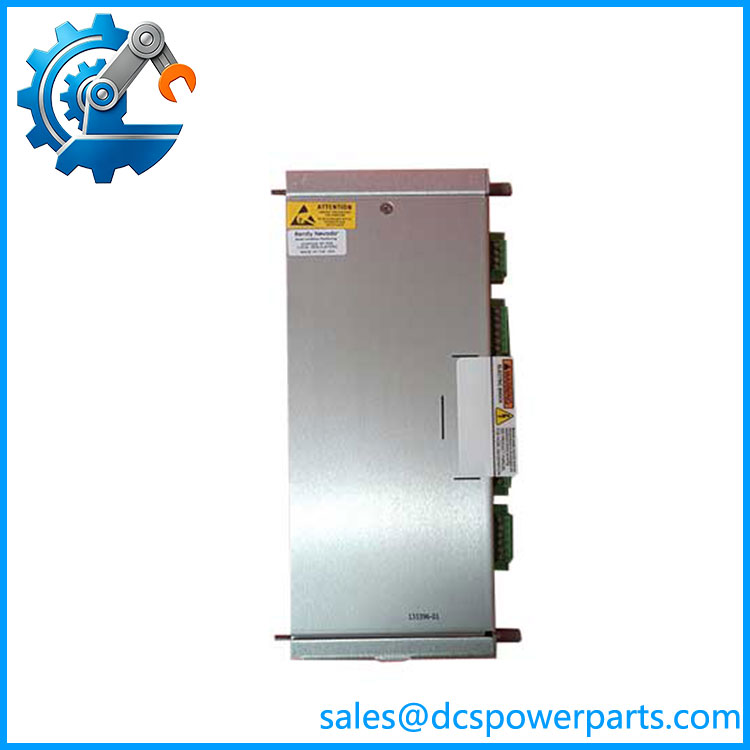

Bently Nevada 3500/54 133396-01 Overspeed Detection Module Product Description

Product Overview

Bently Nevada 3500/54 133396-01 is a Dual-Channel Speed Monitor and Overspeed Detection Module designed for the Bently Nevada 3500 Machinery Protection System. As a critical rotating equipment protection module, Bently Nevada 3500/54 133396-01 provides high-precision speed measurement, overspeed alarm detection, and shutdown protection functions for turbines, compressors, generators, pumps, and other high-speed rotating machinery. The module is installed within the modular 3500 rack architecture and provides continuous online monitoring capabilities for safety-critical equipment.

The Bently Nevada 3500/54 133396-01 belongs to the 3500 Series machinery condition monitoring platform developed by Bently Nevada, a Baker Hughes company. Within the protection system, Bently Nevada 3500/54 133396-01 receives signals from speed sensors such as magnetic pickups, proximity probes, and tachometer devices, processes rotational speed information in real time, and generates alarm or trip outputs when abnormal speed conditions occur. The module is specifically designed for applications where overspeed events could cause severe mechanical damage or safety risks.

Designed according to industrial machinery protection requirements, Bently Nevada 3500/54 133396-01 combines dual-channel measurement capability, configurable alarm thresholds, signal conditioning, and system diagnostics. It integrates with the Bently Nevada 3500 rack system, allowing operators to achieve continuous monitoring, predictive maintenance, and enhanced equipment protection. The module is widely applied in power generation, petrochemical, oil and gas, marine, and heavy industrial facilities where rotating equipment reliability is essential.

Technical Specifications

Application Areas

Gas Turbine Protection:

Bently Nevada 3500/54 133396-01 is widely used in gas turbine systems for monitoring shaft speed and providing overspeed protection. It helps prevent catastrophic turbine failures caused by uncontrolled acceleration conditions.

Steam Turbine Monitoring:

Steam turbines require accurate speed supervision during startup, operation, and shutdown processes. Bently Nevada 3500/54 133396-01 provides reliable rotational speed measurement and protective monitoring.

Generator Systems:

Large generators depend on accurate speed control to maintain stable frequency and safe operation. Bently Nevada 3500/54 133396-01 supports generator protection systems by monitoring critical rotational parameters.

Centrifugal Compressors:

Oil and gas facilities use high-speed compressors that require continuous protection. Bently Nevada 3500/54 133396-01 provides speed monitoring and overspeed detection for compressor trains.

Petrochemical Production Equipment:

Chemical plants operate many rotating machines under demanding conditions. Bently Nevada 3500/54 133396-01 helps improve equipment availability by detecting abnormal speed conditions early.

Hydropower and Industrial Turbomachinery:

Hydraulic turbines and industrial rotating equipment require reliable speed monitoring during changing loads. Bently Nevada 3500/54 133396-01 provides dependable protection for these applications.

Related Products

• Bently Nevada 3500/42M – Proximitor® Monitor Module used for vibration and displacement measurement, often paired with 3500/54 133396-01 in machinery protection systems.
• Bently Nevada 3500/22M – Transient Data Interface Module for data collection and communication within the 3500 rack.
• Bently Nevada 3500/25 – Keyphasor® Module used for phase reference and rotational timing measurements.
• Bently Nevada 3500/32M – 4-Channel Relay Module providing additional alarm and shutdown relay outputs.
• Bently Nevada 3500/33 – 16-Channel Relay Module for expanded alarm control applications.
• Bently Nevada 3500/15 – Power Supply Module for 3500 rack systems.
• Bently Nevada 3500/92 – Communication Gateway Module supporting system integration.
• Bently Nevada 3500/05 – Standard Instrument Rack used to install 3500/54 133396-01.
