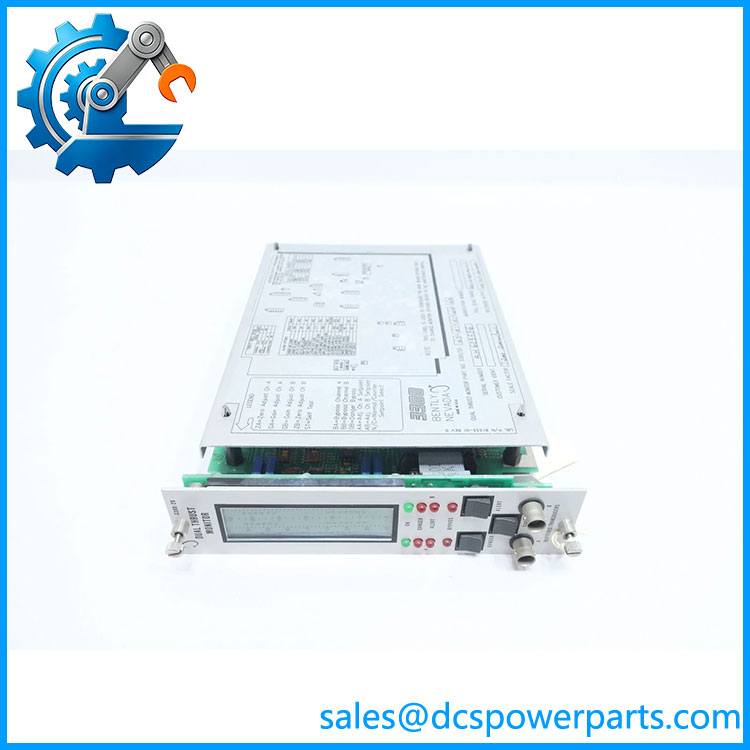

Bently Nevada 3300/20-12-01-03-00-00 | Dual Thrust Monitor
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3300/20 |
| Full Part Number | 3300/20-12-01-03-00-00 |
| Product Type | Dual Thrust Monitor |
| Primary Measurement | Axial shaft position / thrust |
| Measurement Channels | 2 independent thrust-position channels |
| Product Family | Bently Nevada 3300 System |
| Installation | 3300 rack / system backplane |
| Typical Sensor Technology | Eddy-current proximity measurement system |
| Application | Turbomachinery machinery protection |
| System Communication | Dependent on installed 3300 system configuration |
| Configuration Dependency | Rack, power supply, monitor firmware, and system interface |
The 3300/20 is specifically associated with dual thrust-position monitoring. The complete 3300 order code defines the installed configuration, so the suffix should be retained in procurement and replacement records rather than ordering simply by “3300/20.”
Configuration Note
There is conflicting third-party terminology around this exact order number. Some databases classify it as a “control/interface board,” while others correctly identify it as a Dual Thrust Monitor. The more useful engineering classification is the latter: 3300/20 monitoring module for dual thrust/axial-position protection.
Product Introduction
The Bently Nevada 3300/20-12-01-03-00-00 is a Dual Thrust Monitor belonging to the legacy 3300 Machinery Protection System. It processes two independent thrust-position measurement channels and is intended for monitoring axial movement of rotating machinery, particularly where excessive shaft movement or thrust-bearing problems can develop into serious mechanical damage.
The 3300/20 is a rack-mounted monitoring component rather than a general PLC or DCS I/O card. In an operating plant, its value is tied directly to the machinery-protection scheme: the monitor receives the appropriate proximity-probe system signals, evaluates thrust position, and provides the monitoring/alarm function required by the installed 3300 configuration.
3300-20-12-01-03-00-00
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
Thrust monitoring problems are easy to misdiagnose because an abnormal axial-position indication can originate from the probe, Proximitor, field wiring, monitor configuration, mechanical shaft movement, or the thrust-bearing system itself. Replacing the 3300/20 without checking the complete measurement chain can therefore leave the original problem unresolved.
Typical Applications
- Steam turbines — monitoring axial shaft movement and thrust-bearing condition.
- Gas turbines and compressors — protection against excessive axial displacement.
- Large rotating machinery — continuous thrust-position supervision within a machinery-protection rack.
- Legacy 3300 protection systems — replacement of an existing 3300/20 monitor while retaining the installed rack architecture.
Technical Pitfalls to Avoid
- Do not order only by “3300/20.”
The complete number 3300/20-12-01-03-00-00 identifies a specific configuration. The 3300 System compatibility documentation makes clear that system configuration depends on the rack/backplane, power supply, system monitor, and monitor firmware. - Do not diagnose an axial-position fault from the monitor alone.
Verify the complete proximity measurement loop, including probe condition, extension cable, Proximitor, gap/voltage, wiring, and mechanical thrust condition. - Check communication compatibility when integrating with an existing 3300 rack.
The 3300 System evolved through Original, Mixed, SDI/DDI, and TDe configurations. Communication processors and monitor firmware are not universally interchangeable across these generations. - Do not confuse thrust monitoring with radial vibration monitoring.
The 3300/20 is intended for thrust/axial-position monitoring. A 3300/16, for example, serves a different measurement function and should not be selected simply because both are 3300-series monitor modules.
Related Products
- Bently Nevada 3300/05 — 3300 system rack used to house compatible monitor modules and system hardware.
- Bently Nevada 3300/03 — system monitor/interface hardware associated with earlier 3300 configurations.
- Bently Nevada 3300/12 — 3300 system power supply family.
- Bently Nevada 3300/16 — dual vibration monitor for radial vibration/shaft-position applications; different from the thrust monitor.
- Bently Nevada 3300/20-12-01-01-00-00 — another 3300/20 dual-thrust configuration; exact suffix must be compared before substitution.
- Bently Nevada 3300/20-12-01-03-00-01 — closely related 3300/20 configuration; the final configuration digit should not be ignored when sourcing a replacement.
- Bently Nevada 3300/25 — keyphasor-related monitoring hardware; serves a different measurement role.
- Bently Nevada 3300/40 — vibration/position monitoring hardware for other machinery-protection functions.
- Bently Nevada 3300/50 — reciprocating machinery-related monitoring configuration; not a direct substitute for 3300/20.
Procurement Check
Before approving a Bently Nevada 3300/20-12-01-03-00-00, verify:
- Exact model: 3300/20
- Complete order number: 3300/20-12-01-03-00-00
- Dual thrust-position application
- Existing 3300 rack/backplane revision
- Installed power-supply model
- System Monitor configuration
- Monitor firmware revision
- SDI/DDI or older system architecture
- Proximity probe and Proximitor type
- Existing field calibration/gap settings
- Alarm and trip setpoints
- Communication processor, if installed
- Whether the replacement is new surplus, used, or refurbished
- Functional test of both thrust channels before installation
Recommended procurement description:
Bently Nevada 3300/20-12-01-03-00-00 Dual Thrust Monitor, 3300 Series Machinery Protection System, Dual-Channel Axial Position / Thrust Monitoring Module.
The key procurement point is that 3300/20-12-01-03-00-00 is a complete 3300/20 configuration, not merely a generic control board. For a field replacement, preserve the complete suffix and verify the 3300 rack generation, firmware, power supply, and communication architecture before installation.
