Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Yokogawa Electric |
| Model | PW501 |
| Product Type | Power Supply Module |
| Application Platform | CENTUM CS / CENTUM VP communication devices |
| Compatible Equipment | YNT511D, YNT512D, YNT522D optical bus repeater units |
| Input Voltage | 100–120VAC |
| Input Frequency | 50/60Hz |
| Output Voltage | 5VDC |
| Output Current | 5A |
| Output Power | Approx. 25W |
| Fuse Rating | 1A fuse (A1361EF) |
| Mounting | Dedicated Yokogawa equipment mounting position |
| Redundancy Support | Supported depending on host equipment configuration |
| Operating Environment | Industrial control room / equipment cabinet installation |
| Replacement Period Reference | 8 years under average 40°C ambient conditions |
Product Introduction
Yokogawa PW501 Overview
The Yokogawa PW501 is an AC input power supply module designed for Yokogawa CENTUM CS and CENTUM VP communication equipment. It provides power conversion for optical bus repeater units, including the YNT5xx communication device family used in Yokogawa DCS network architectures.
The Yokogawa PW501 is a dedicated system power component rather than a general-purpose power supply. Its main value is maintaining stable operation of the communication hardware that connects distributed control system nodes. Replacement requires confirmation of the installed repeater model, input voltage version, and cabinet power arrangement.

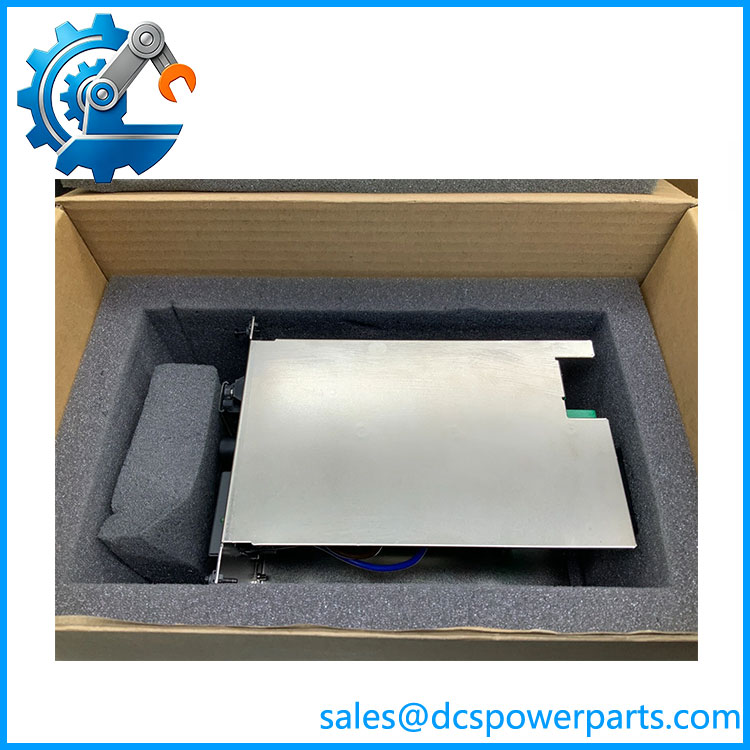

PW501
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A remote communication node suddenly drops offline. The controller diagnostics show a network fault, but the actual issue is a failed power module inside the optical bus repeater cabinet.
This happens often in legacy DCS installations. Engineers usually focus on communication cards and fiber links first. However, communication hardware depends on stable internal power. A degraded supply can create intermittent faults before complete failure.
The PW501 supports the communication layer. When it fails, the symptom may look like a network problem.
Typical Applications
- Oil & Gas Facilities – Power supply for Yokogawa optical bus repeater equipment connecting remote control stations.
- Chemical Processing Plants – CENTUM CS/VP communication cabinets supporting distributed process control networks.
- Power Generation Plants – Remote I/O communication infrastructure for turbine and auxiliary control systems.
- Water Treatment Facilities – Distributed control cabinets requiring stable communication equipment power.
Technical Pitfalls to Avoid
- Verify AC Input Version
The PW501 is designed for 100–120VAC input. Do not substitute with PW502 or PW504 without confirming cabinet power requirements. The variants are voltage-specific.
- Check the Host Communication Device
The is not a standalone DCS power supply. Confirm that the installed equipment is compatible, such as YNT511D, YNT512D, or YNT522D optical bus repeater hardware.
- Inspect Fuse and Wiring Conditions
A blown fuse may be the result of a downstream fault. Replace the fuse only after checking the connected repeater unit and field wiring condition.
Related Products
- Yokogawa PW502
220–240VAC version of the same power supply family. Used where higher AC input voltage is available in the control cabinet. - Yokogawa PW504
24VDC input version for installations using DC cabinet power systems. Functionally similar but electrically different from . - Yokogawa YNT511D
Optical bus repeater for redundant bus communication. The provides power support for this communication device family. - Yokogawa YNT512D
Redundant bus repeater component used in Yokogawa communication networks. Compatible power options include the family. - Yokogawa YNT522D
Optical bus repeater designed for extended communication distance applications. Uses dedicated power supply components. - Yokogawa AIP578
Electrical transceiver unit used in Yokogawa V net repeater configurations. Different function from , but part of the same communication infrastructure family. - Yokogawa AIP591
Optical transceiver unit for V net repeater applications with longer transmission distance requirements. - Yokogawa CENTUM CS/VP Communication Equipment
The is used as a supporting power component within legacy Yokogawa DCS communication architectures.
