Description
Key Technical Specifications
| Parameter | Value |
|---|---|

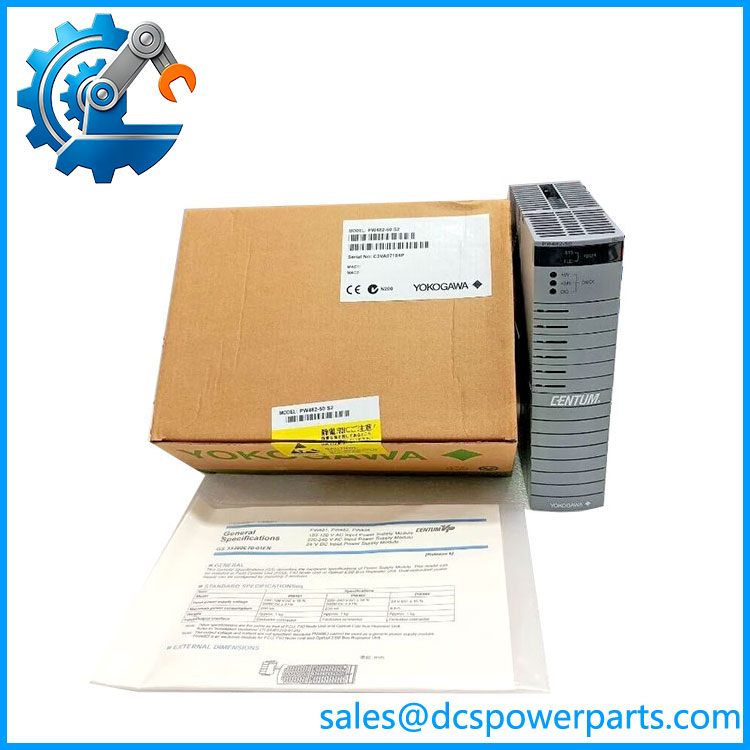

| Product Model | PW482-50 S2 |
| Manufacturer | Yokogawa |
| Product Type | Power Supply Module |
| System Platform | CENTUM VP / CENTUM CS 3000 |
| Application | FCS system power distribution |
| Output Type | Regulated DC output |
| Power Configuration | Redundant power supply support |
| Installation Type | Rack-mounted module |
| Mounting Location | Yokogawa FCS cabinet |
| Protection Functions | Overcurrent and abnormal condition protection |
| Status Monitoring | Power and fault indication |
| Cooling | Cabinet airflow dependent |
| Communication | System status monitoring through FCS architecture |
| Typical Loads | Controllers, communication modules, I/O components |
| Operating Environment | Industrial automation cabinet |
Application Scenarios & Pain Points
Power failures rarely announce themselves clearly. A failing supply module may appear as a controller communication issue, random I/O faults, or unexplained system restarts. Engineers usually need to check the complete power chain, not only the failed device message.
Typical applications:
- Oil & Gas Facilities: Provides cabinet power for Yokogawa FCS systems controlling refining, compression, and process equipment.
- Chemical Plants: Supports continuous production systems where controller availability affects batch and process stability.
- Power Generation: Used in control cabinets managing auxiliary systems and plant monitoring functions.
- Water Treatment Facilities: Maintains operation of Yokogawa automation cabinets installed across large treatment areas.
Field note: A process unit reported sporadic controller resets during normal operation. The processor diagnostics showed no major faults, but cabinet measurements revealed unstable supply output. Replacing the PW482-50 S2 and checking the associated power path resolved the issue.
- PW482-50 S2
Related Products
- Yokogawa PW482-10 S2 — Related PW482 family power module with a different ordering configuration. Used when system documentation specifies the matching variant.
- Yokogawa PW484-50 S1 — Higher-capacity power supply variant used in compatible CENTUM VP cabinet applications.
- Yokogawa PW481-10 — Earlier Yokogawa power module family used in certain CENTUM installations.
- Yokogawa CP451-10 S2 — CENTUM VP processor module responsible for executing control applications.
- Yokogawa EC401-50 S3 — ESB communication interface module connecting FCU equipment with distributed I/O nodes.
- Yokogawa ADV151-P00 — Analog input module for field transmitter signal acquisition.
- Yokogawa ADV551-P00 S2 — Digital output module for discrete field control signals.
- Yokogawa AFV10S — Field Control Unit platform supporting Yokogawa processor, communication, and I/O modules.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Incorrect Power Module Substitution
Similar-looking Yokogawa power supplies may have different system applications.
How to avoid: Confirm the complete part number, suffix, and cabinet drawings before installation.
⚠️ Overlooking External Power Quality Issues
A replacement module may not solve problems caused by unstable incoming power.
How to avoid: Measure input voltage, check grounding, and review historical power alarms.
⚠️ Ignoring Redundant Pair Health
Installing one new supply beside an aging companion unit can leave the system vulnerable.
How to avoid: Inspect both modules, verify load sharing, and check redundancy status after startup.
Frequently Asked Questions (FAQ)
Can the Yokogawa PW482-50 S2 replace a PW482-10 S2?
Replacement depends on the cabinet configuration, power arrangement, and Yokogawa system design. The complete model number should be matched before installation.
What is the main purpose of the -50 S2?
The module provides regulated power to Yokogawa FCS hardware, supporting controllers, communication equipment, and compatible I/O components.
Does replacing the -50 S2 require a CENTUM database download?
No. The power module does not contain process control logic. After replacement, engineers should verify power alarms and system operating status.
Why does a Yokogawa system show communication alarms after a power module replacement?
Possible causes include:
- Incorrect module installation
- Backplane contact problems
- Power redundancy configuration issues
- External power instability
- Related hardware faults
What details should be confirmed before purchasing this module?
Check:
- Existing model and suffix
- CENTUM system version
- FCS cabinet type
- Redundancy arrangement
- Input/output power requirements
- Current alarm history
Is a refurbished -50 S2 suitable for continuous process applications?
A tested refurbished unit can be suitable when it has passed output voltage testing, fault indication checks, load verification, and connector inspection.
How shohe S2 be stored as a spare?
Store it inside anti-static packaging in a clean, dry environment. Keep it away from moisture, dust, and corrosive materials that can affect electronic contacts.
