Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AA1543-S00 S1 |
| Manufacturer | Honeywell |
| Product Type | Analog Input Module |
| System Platform | Honeywell TPS / Experion Process Control Systems |
| Signal Type | Analog current input |
| Input Range | 4-20 mA (application dependent) |
| Channel Count | 16 channels (configuration dependent) |
| Field Interface | Through compatible Honeywell terminal assemblies |
| Conversion Type | Analog-to-digital signal conversion |
| Diagnostics | Module and channel status monitoring |
| Mounting | Honeywell I/O rack assembly |
| Communication | Honeywell proprietary I/O communication |
| Power Supply | System backplane supplied |
| Application | Process measurement acquisition |
| Typical Signals | Pressure, flow, level, temperature transmitters |
Application Scenarios & Pain Points
A process control system can remain online for decades, but individual I/O modules eventually become the weak point. Plants often face the challenge of maintaining discontinued hardware while avoiding unnecessary changes to validated control logic.
Typical applications:
- Oil & Gas Processing: Used for collecting analog transmitter signals from separators, compressors, pipelines, and utility systems.
- Chemical Plants: Supports continuous monitoring of pressure, flow, and level loops where stable signal conversion is required.
- Power Generation: Applied in turbine auxiliary systems, boiler monitoring, and balance-of-plant instrumentation.
- Manufacturing Facilities: Used in older Honeywell-based automation cabinets where existing field wiring must remain unchanged.
Field note: A production site experienced multiple failed analog channels after years of operation. The engineering team initially suspected field transmitters, but loop checks showed the instruments were healthy. Replacing the affected I/O module and validating channel configuration restored normal operation.

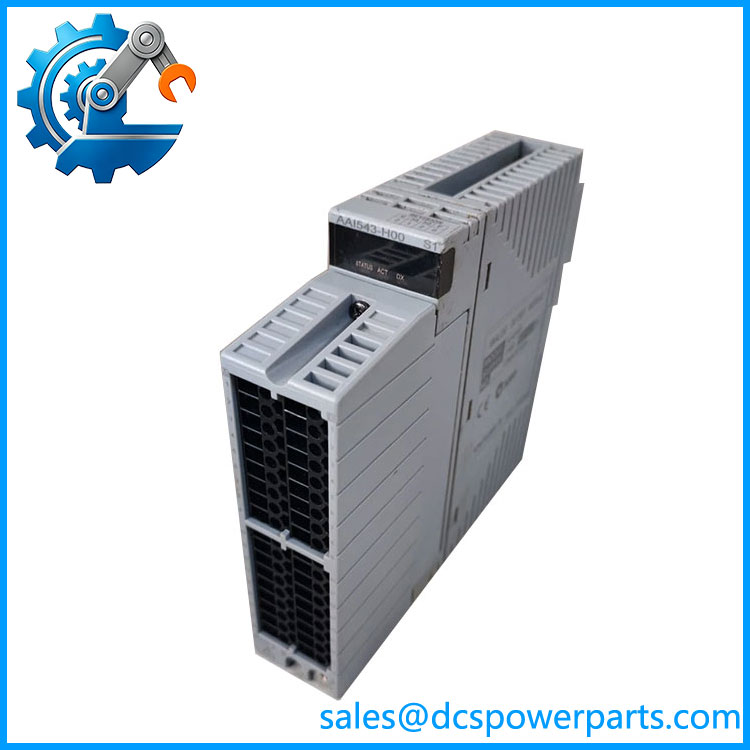

AA1543-S00
Related Products
- Honeywell AAI143-S00 S1 — Analog input module for Honeywell I/O systems. Used for similar 4-20 mA acquisition applications with different ordering configurations.
- Honeywell AAI835-S00 — Analog input module supporting smart transmitter applications. Used when HART communication requirements are important.
- Honeywell AAI141-S00 — Analog input module variant for process measurement applications with different system configurations.
- Honeywell C300 Controller — Main controller platform used in Experion architecture. Receives and processes I/O data from field modules.
- Honeywell FTA Terminal Assemblies — Field termination hardware providing wiring connection between instruments and I/O modules.
- Honeywell PMIO Series I/O Modules — Legacy process manager I/O components used in older Honeywell control systems.
- Honeywell Experion C300 I/O Components — Supporting modules used for modernization and expansion projects.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Incorrect I/O Database Mapping
A physically compatible module can still produce incorrect readings when channel assignments do not match the control database.
How to avoid: Export and verify the existing I/O configuration before removing the original module.
⚠️ Terminal Block and Wiring Differences
The module alone does not define the complete I/O connection. Terminal assemblies and cable layouts must match the installed system.
How to avoid: Compare terminal block part numbers, wiring drawings, and cabinet documentation.
⚠️ Firmware Revision Differences
Older and newer module revisions may behave differently during startup diagnostics or communication with the controller.
How to avoid: Record the installed revision level and confirm compatibility with the existing controller firmware.
Frequently Asked Questions (FAQ)
Can the AA1543-S00 S1 replace an existing Honeywell analog input module?
Replacement depends on the exact system configuration. The module must match the I/O architecture, channel requirements, terminal assembly, and controller configuration.
What type of field devices connect to the AA1543-S00 S1?
Typical connections include 4-20 mA transmitters for pressure, temperature, flow, and level measurement. The final compatibility depends on the installed Honeywell system configuration.
Does replacing this module require a control system download?
Not always. If the replacement matches the original hardware configuration and addressing, only verification may be required. Any configuration mismatch can require engineering changes.
What should buyers confirm before purchasing this module?
Check:
- Complete part number and suffix
- Existing controller platform
- I/O rack location
- Channel configuration
- Terminal assembly type
- Firmware revision
Why does a replacement analog module show unstable readings?
Possible causes include incorrect scaling, wiring issues, poor terminal contact, grounding problems, or mismatch between transmitter output and configured input range.
Is a tested refurbished AA1543-S00 S1 suitable for critical process applications?
A tested unit can be suitable when inspection includes power verification, I/O channel testing, connector examination, and communication checks with the target control platform.
How should spare modules be stored before installation?
Store them in a dry cabinet with anti-static protection. Avoid environments with moisture, dust, or corrosive vapors that can affect edge connectors and electronic components.
