Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AIP591 |
| Manufacturer | Yokogawa Electric Corporation |
| Product Type | Analog Input Module |
| Signal Type | Analog current input |
| Input Channels | 16 channels |
| Input Signal | 4–20 mA DC |
| Application | Process measurement and control |
| System Use | Yokogawa DCS / process automation platforms |
| Conversion Type | Analog-to-digital signal conversion |
| Input Isolation | Model configuration dependent |
| Field Devices | Pressure transmitters, flow transmitters, level transmitters, temperature transmitters with current output |
| Mounting | Yokogawa I/O rack / node installation |
| Configuration Method | Engineering workstation configuration |
| Diagnostics | Channel status monitoring (system dependent) |
| Operating Environment | Industrial control cabinet environment |
| Communication Interface | Internal Yokogawa I/O bus interface |
Product Introduction
Yokogawa AIP591 Product Introduction
Yokogawa AIP591 is an analog input module designed to acquire field measurement signals and transfer process data into Yokogawa control systems. It is typically used for connecting 4–20 mA transmitters such as pressure, flow, level, and temperature instruments within DCS architectures.
The primary value of Yokogawa AIP591 is maintaining installed Yokogawa automation systems where replacing a single I/O module is preferable to larger control system changes. Before installation, confirm the DCS platform, I/O hardware revision, terminal configuration, and engineering database compatibility.

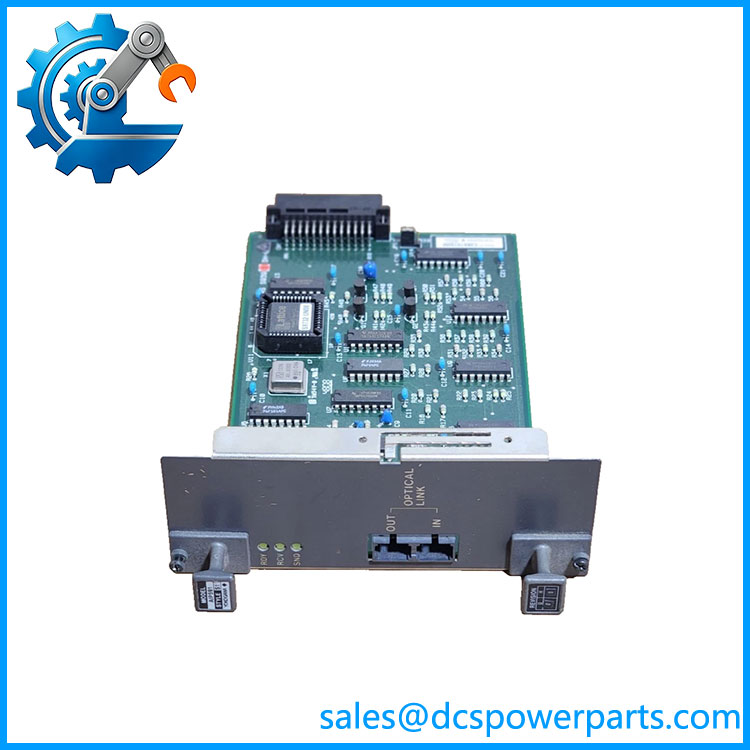

AIP591
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A refinery unit remains mechanically healthy, but operators suddenly see unstable process values from several instruments. Field transmitters test correctly. Loop power is normal. The issue is eventually traced to an aging analog input channel inside the DCS cabinet.
Analog input modules are often considered simple hardware. They are not. They define the signal path between field instrumentation and the control strategy.
Typical Applications
- Oil & Gas – Pressure, flow, and level transmitter acquisition for process units, compressors, and utility systems.
- Chemical Processing – Reactor temperature, tank level, and process flow monitoring.
- Power Generation – Boiler, turbine auxiliary, and balance-of-plant instrumentation signals.
- Water Treatment – Pump station, chemical dosing, and treatment process measurement.
Technical Pitfalls to Avoid
- Confirm the Correct Yokogawa Platform
AIP-series modules are platform-specific. Confirm whether the installed system is CENTUM, STARDOM, or another Yokogawa architecture before replacement. - Check Loop Signal Type and Wiring
Verify whether the field device uses 2-wire or 4-wire 4–20 mA wiring. Incorrect loop configuration can create false zero readings or unstable measurements. - Restore Channel Configuration Carefully
Scaling, alarm limits, engineering units, and signal filtering are normally stored in the engineering database. Replacing the module alone does not restore these parameters.
Related Products
- Yokogawa AAI141
16-channel analog input module for 4–20 mA signals. Commonly used in Yokogawa CENTUM systems for standard process transmitter connections. - Yokogawa AAV141
16-channel analog input module for voltage signals such as 1–5 VDC applications. Used where transmitters provide voltage outputs instead of current signals. - Yokogawa AAB141
Analog input module supporting 1–5 V and 4–20 mA input signals. Suitable for mixed signal applications. - Yokogawa AAI841
Analog I/O module combining 4–20 mA inputs and outputs. Used for control loops requiring both measurement and output signals. - Yokogawa AIP502
Related analog input module within Yokogawa I/O families. Used for process signal acquisition in compatible systems. - Yokogawa ADV151
Digital input module used alongside analog modules for equipment status monitoring and interlock signals. - Yokogawa ADV561
Digital output module used for control commands to valves, relays, and field actuators. - Yokogawa CENTUM VP System
Yokogawa DCS platform where analog and digital I/O modules integrate field instruments with control strategies.
