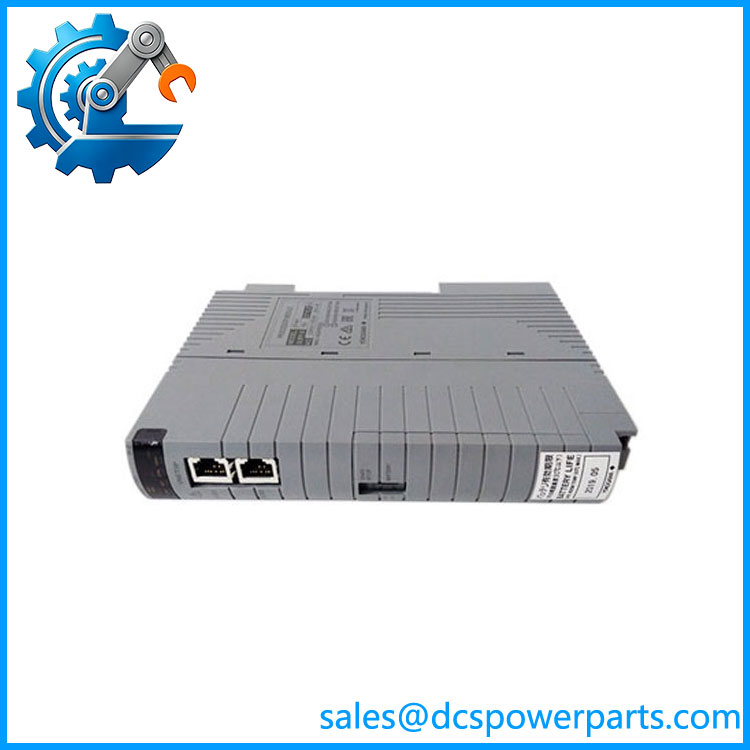

  • Model: CP461-50
  • Brand: Yokogawa
  • Series: CENTUM VP / Field Control Station (FCS)
  • Core Function: Executes real-time process control logic, manages I/O data processing, and communicates with other CENTUM VP stations through the control network.
  • Product Type: FCS Processor Module / CPU Module
  • Key Specs:
    • Designed for Yokogawa CENTUM VP Field Control Units
    • Supports AFV30S and AFV30D FCS configurations
    • Supports dual-redundant processor operation
    • Vnet/IP communication architecture
    • Used for continuous and sequence control execution
Add To Quote
Category: SKU: Yokogawa CP461-50

Description

Key Technical Specifications

Parameter Value
Product Model CP461-50
Manufacturer Yokogawa Electric Corporation
Product Type Field Control Station Processor Module
System Platform CENTUM VP DCS
Controller Unit AFV30S / AFV30D FCS
Processor Function Real-time control logic execution
Communication Interface Vnet/IP
Network Configuration Dual-redundant communication supported
Redundancy Duplex processor configuration supported
Memory Main memory with battery-backed retention system (system dependent)
I/O Capacity Supports connected CENTUM VP I/O nodes through FCS architecture
Connected Node Units Up to 13 node units per FCU (configuration dependent)
Mounting FCS rack installation
Power Supply Supplied through FCU power architecture
Operating Environment Industrial control cabinet environment
Engineering Software Yokogawa CENTUM VP engineering environment



Product Introduction



Yokogawa CP461-50 Product Introduction

Yokogawa CP461-50 is a processor module used in the CENTUM VP distributed control system Field Control Station (FCS). It performs the main control calculations, sequence execution, arithmetic processing, and communication management between the FCS and other system components.

The importance of Yokogawa CP461-50 is maintaining existing CENTUM VP installations where controller availability directly affects plant operation. The module supports redundant FCS configurations, but replacement requires verification of software revision, processor pairing, database configuration, and hardware compatibility.

CP461-50

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A process unit continues running, but operators begin seeing delayed control responses, communication alarms, or unexpected FCS processor diagnostics. Field instruments test correctly. I/O modules appear normal. The investigation eventually moves toward the controller layer.

The FCS processor is the execution point for control logic. A processor replacement is not just a hardware exchange; configuration and redundancy checks are critical.



Typical Applications

  • Oil & Gas – CENTUM VP control stations managing refinery units, compressors, pipelines, and process utilities.
  • Chemical Processing – Regulatory control and sequence control for reactors, distillation systems, and batch processes.
  • Power Generation – Boiler auxiliary systems, turbine balance-of-plant control, and plant utility automation.
  • Pharmaceutical Manufacturing – Process monitoring and batch control applications requiring stable DCS execution.



Technical Pitfalls to Avoid

  1. Verify FCS Model Before Replacement
    The CP461-50 is associated with specific CENTUM VP Field Control Units. Confirm AFV30S/AFV30D configuration and processor slot assignment before installation.
  2. Match Redundant Processor Pairing
    Duplex systems require compatible processor modules operating with matching configuration parameters. Mixing incompatible revisions can prevent redundancy synchronization.
  3. Backup the Engineering Database First
    A processor module does not contain the complete plant control strategy by itself. Confirm application data, control drawings, and station configuration before removing the existing unit.



Related Products

  • Yokogawa CP461-50-S2
    Related variant used in CENTUM VP FCS applications. Verify suffix code differences, power configuration, and system revision before substitution.
  • Yokogawa CP471
    Later-generation CENTUM VP processor module. It may serve as an upgrade path in certain systems, but migration requires Yokogawa compatibility verification.
  • Yokogawa AFV30S
    Standard Field Control Unit platform supporting CP461 processor modules for CENTUM VP systems.
  • Yokogawa AFV30D
    Duplex Field Control Unit configuration designed for redundant processor operation using modules.
  • Yokogawa VI702
    Vnet/IP interface module used within CENTUM VP architectures for control network communication.
  • Yokogawa PW481
    Power supply module used in CENTUM VP Field Control Units. Dual power supply arrangements are commonly used with redundant processor configurations.
  • Yokogawa EC401
    ESB bus coupler module used for connecting FCS processor assemblies with compatible I/O nodes.
  • Yokogawa CENTUM VP DCS
    Distributed control platform using Field Control Stations, operator stations, and Vnet/IP communication infrastructure for process industries.
