Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AAI543-H50 S1 |
| Manufacturer | Yokogawa |
| Product Type | Analog Output Module |
| System Platform | CENTUM VP / CENTUM CS 3000 FIO |
| Output Channels | 16 channels |
| Output Signal | 4-20 mA analog current output |
| Communication | HART communication support |
| Application | Continuous control signal generation |
| Output Resolution | High-resolution digital-to-analog conversion |
| Isolation | Signal isolation design |
| Mounting | Yokogawa FIO node/rack installation |
| Communication Interface | Yokogawa ESB/ER bus architecture via node |
| Diagnostics | Module and channel status monitoring |
| Field Devices | Control valves, actuators, positioners |
| Installation Environment | Industrial control cabinet |
Application Scenarios & Pain Points
Analog output modules are often overlooked because they do not measure the process—they influence it directly. A faulty output channel can leave a valve stuck, create unstable control loops, or prevent automatic regulation.
Typical applications:
- Oil & Gas Facilities: Used for controlling valve positioners, flow control loops, pressure regulation systems, and process equipment.
- Chemical Plants: Provides output signals for reactor control, dosing systems, and continuous process adjustments.
- Power Generation: Supports turbine auxiliary controls, boiler regulation, and utility process loops.
- Water Treatment Facilities: Used for chemical injection control, flow adjustment, and actuator positioning.
Field note: A chemical production line experienced slow response from several control valves. Loop testing showed the field devices were functional, but several output channels had degraded performance. Replacing the AAI543-H50 S1 and verifying output scaling restored normal automatic control.

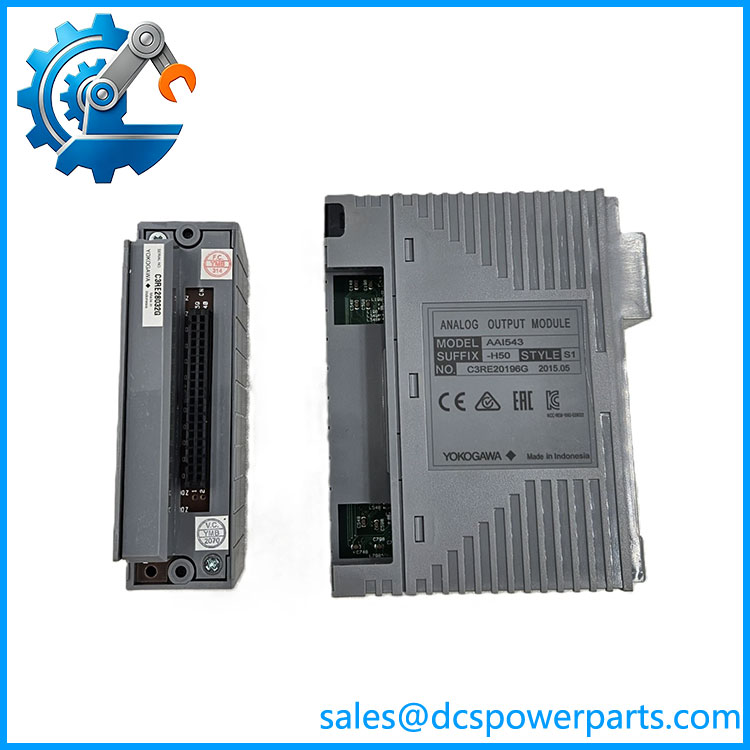

AAI543-H50 S1
Related Products
- Yokogawa AAI543-S00 — Standard analog output module variant for conventional current output applications without the same HART-focused configuration.
- Yokogawa AAI543-H00 — Analog output module family supporting smart field device applications.
- Yokogawa AAI143-H50 S1 — Analog input counterpart with HART support for collecting transmitter signals.
- Yokogawa ADV161-P00 — Analog output module used in Yokogawa FIO systems for continuous control applications.
- Yokogawa ADV551-P00 S2 — Digital output module for discrete control signals such as solenoid valves and relays.
- Yokogawa ADV561-P00 — Digital input module for equipment status and switch monitoring.
- Yokogawa EC401-50 S3 — ESB communication module connecting FCU processors with remote FIO nodes.
- Yokogawa CP451-10 S2 — CENTUM VP controller processor responsible for executing control strategies.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Output Scaling Mismatch
A module can communicate correctly while sending the wrong current range to field devices.
How to avoid: Verify engineering ranges, output limits, and valve position scaling before returning the loop to automatic control.
⚠️ HART Function Compatibility Issues
Smart positioners may require HART communication support that standard analog output modules cannot provide.
How to avoid: Confirm the original module specification and whether device diagnostics are used in the DCS.
⚠️ Terminal and Wiring Differences
Incorrect terminal connections can damage output circuits or create false troubleshooting results.
How to avoid: Compare terminal assemblies, wiring drawings, and channel assignments before installation.
Frequently Asked Questions (FAQ)
Can the Yokogawa AAI543-H50 S1 replace an existing AAI543 module?
It can replace a compatible installation when the system configuration, output requirements, and HART functionality match. Confirm the full ordering code before replacement.
What devices are typically connected to the -H50 S1?
Typical devices include control valve positioners, actuators, variable control equipment, and other field devices requiring 4-20 mA output signals.
What is the difference between -H50 S1 and standard analog output modules?
The H50 configuration is intended for applications requiring HART communication with smart field devices. Standard versions may provide analog output without the same communication capability.
Why does the control valve not move after replacing the module?
Common causes include:
- Incorrect output channel assignment
- Wrong scaling parameters
- Wiring errors
- Field device power problems
- HART configuration mismatch
What information should be checked before purchasing this module?
Recommended checks:
- Existing module model and suffix
- CENTUM VP system version
- FIO node configuration
- Output signal requirements
- Terminal assembly type
- Connected field device models
Is a refurbished Yokogawa -H50 S1 suitable for process control applications?
A tested refurbished module can be suitable when it passes output channel verification, communication testing, HART checks, and connector inspection.
How should this analog output module be stored?
Store it in anti-static packaging in a dry, clean environment. Avoid humidity and contamination that can affect electronic contacts during long-term storage.
