Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ADV551-P00 S2 |
| Manufacturer | Yokogawa |
| Product Type | Digital Output Module |
| Series | Yokogawa FIO / CENTUM VP I/O |
| Output Channels | 32 channels |
| Output Type | Digital contact output |
| Output Signal | ON/OFF discrete control signal |
| Rated Output Voltage | Configuration dependent |
| Isolation | Channel/group isolation design |
| Communication Interface | Yokogawa ESB Bus / ER Bus via node interface |
| Mounting | Yokogawa field control unit / I/O node |
| Diagnostics | Module status and channel monitoring |
| Power Supply | System supplied |
| Application | Discrete process control |
| Typical Loads | Solenoid valves, relays, actuators, alarms |
Application Scenarios & Pain Points
A digital output failure is rarely just a hardware issue. In a running plant, one unavailable output channel can affect permissives, motor starts, valve commands, and automatic sequences. Troubleshooting usually requires checking the entire path from DCS database to field terminal.
Typical applications:
- Oil & Gas Facilities: Used for controlling shutdown valves, motor starters, and auxiliary equipment commands from Yokogawa control systems.
- Chemical Plants: Provides discrete outputs for batch sequences, pump control, agitator commands, and process interlocks.
- Power Generation: Supports boiler auxiliary systems, turbine-related equipment control, and alarm outputs.
- Water Treatment Plants: Used for pump switching, valve actuation, and equipment status control.
Field note: A process unit experienced intermittent valve control problems after years of operation. The field solenoids tested correctly, but several output points from the aging I/O module had degraded. Replacing the ADV551 module and verifying channel assignments restored normal sequence operation without modifying the control logic.

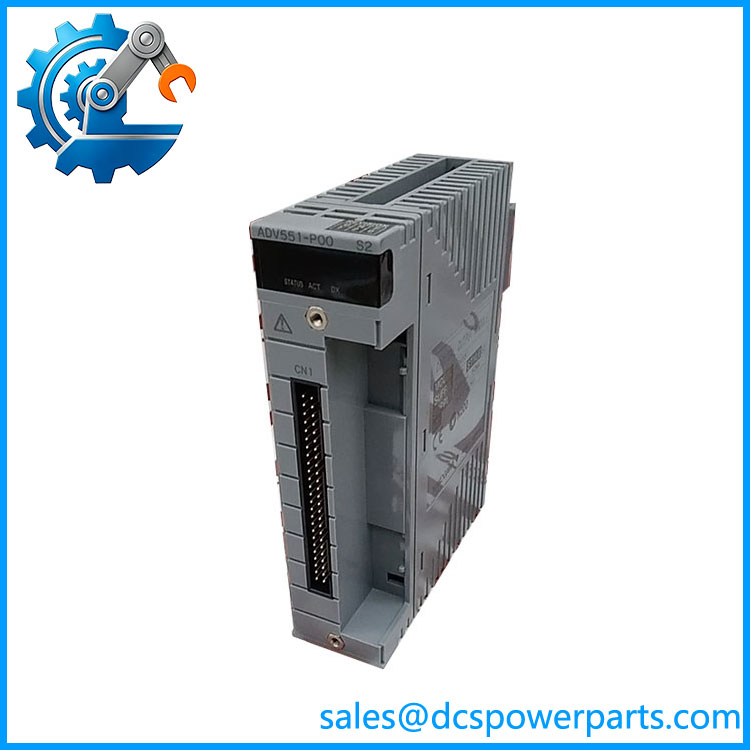

ADV551-P00
Related Products
- Yokogawa ADV151-P00 — Analog input module used for collecting continuous process signals such as pressure, flow, and temperature measurements.
- Yokogawa ADV161-P00 — Analog output module used when continuous control signals are required for valves and actuators.
- Yokogawa ADV551-P00 S1 — Previous revision of the ADV551 digital output family. Used in compatible Yokogawa FIO configurations.
- Yokogawa ADV561-P00 — Digital input module used for collecting field status signals from switches and equipment feedback devices.
- Yokogawa ALR111 — Communication interface module supporting integration with external control networks.
- Yokogawa AAI143-H00 — Analog input module for Yokogawa CENTUM systems, designed for transmitter signal acquisition.
- Yokogawa AFV10S/AFV30S — Field control unit platforms used for Yokogawa distributed I/O installations.
- Yokogawa CENTUM VP System Components — Controller, I/O, and communication modules supporting large process automation systems.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Output Type and Voltage Mismatch
Digital output modules may look identical while supporting different field voltage ranges or output arrangements.
How to avoid: Verify the existing field device requirements, terminal wiring, and module specification before installation.
⚠️ Incorrect I/O Database Configuration
A replacement module can communicate normally while individual output points remain incorrectly assigned.
How to avoid: Compare slot configuration, channel mapping, and control logic references before commissioning.
⚠️ Terminal Block Compatibility Issues
The I/O module is only one part of the signal chain. The terminal assembly and cable interface must match the installed system.
How to avoid: Confirm terminal board model numbers and inspect connectors for contamination or damaged contacts.
Frequently Asked Questions (FAQ)
Can the Yokogawa ADV551-P00 S2 replace an existing ADV551 module directly?
A direct replacement is possible when the existing system uses the same Yokogawa FIO configuration and compatible hardware revision. Always verify the complete suffix information before installation.
What devices can be controlled through the -P00 S2?
Typical applications include solenoid valves, relay coils, motor control commands, annunciators, and other discrete field devices. The final application depends on output specifications and field interface design.
Does replacing the module require changing the CENTUM configuration?
Normally, the control database remains unchanged if the replacement module matches the original configuration. Slot assignment and channel mapping must still be verified.
Why does the module show normal status but the field device does not respond?
Possible causes include:
- Incorrect output wiring
- Failed terminal connection
- Wrong channel assignment
- Field device power issue
- Output configuration mismatch
The module status alone does not confirm the complete field circuit.
What information should be checked before ordering an -P00 S2?
Recommended checks:
- Full model number
- Existing I/O node type
- Output voltage requirements
- Terminal assembly model
- Slot position
- CENTUM configuration data
Is a refurbished -P00 S2 suitable for continuous process operation?
A properly tested refurbished module can support industrial service when it has passed output channel testing, communication verification, visual inspection, and connector checks.
How should Yokogawa I/O modules be stored as plant spares?
Store them in anti-static packaging inside a clean, dry cabinet. Avoid humidity, dust, and chemical exposure that may affect electronic contacts during long storage periods.
