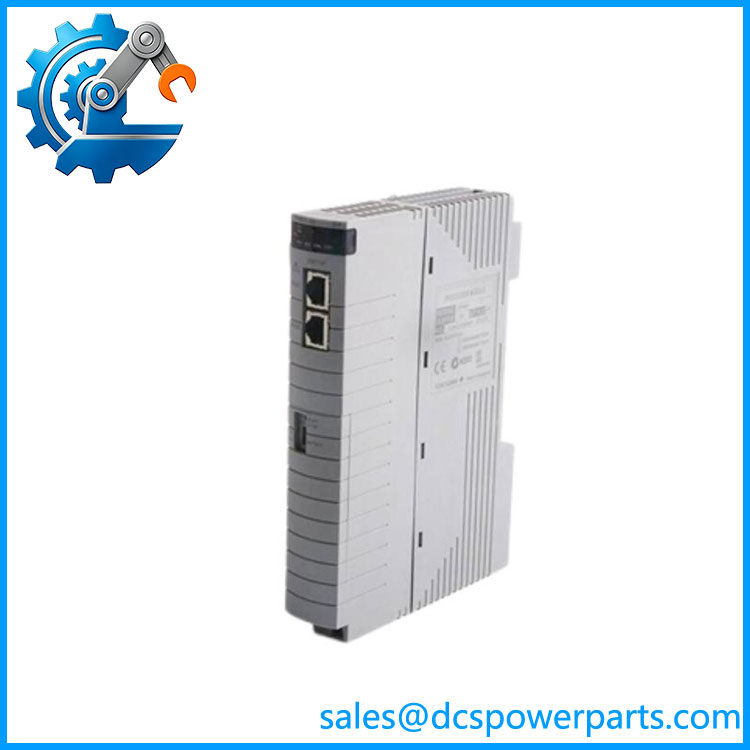

CP471-01 Yokogawa CENTUM VP Processor Module (FCS Main Controller)

CP471-01 Yokogawa CENTUM VP Processor Module (FCS Main Controller)

Model: CP471-01

Brand: YOKOGAWA

Core Function:CENTUM VP Processor Module (FCS Main Controller)

Condition: New Original (New Surplus) / Factory Sealed

Origin: USA

Delivery time: 3 days

Add To Quote
Category: SKU: CP471-01 CENTUM

Description

CP471-01

Yokogawa CENTUM VP Processor Module (FCS Main Controller)

Product Brief

CP471-01 is the core processor module for Yokogawa CENTUM VP distributed control system, deployed inside AFV series Field Control Station (FCS) racks. Serving as the computing core of the field control unit, it executes continuous PID control, sequence logic, interlock protection, I/O data acquisition and alarm management. It communicates with local/remote I/O modules via the ESB bus and connects to HMI, engineering stations through Vnet/IP industrial network. Supporting simplex and dual redundant hot-standby configuration, it realizes bumpless master-slave switchover, widely adopted for new DCS projects and spare renewal of existing process control cabinets.

Core Design Advantages

▪ High-speed 32-bit RISC processor built with ECC error-correcting memory, avoiding abnormal operation caused by memory bit errors

▪ Dual independent Vnet/IP Ethernet interfaces, redundant network transmission to reduce communication failure risks

▪ Seamless data interaction with FIO I/O nodes via ESB bus, supporting distributed signal collection

▪ Complete self-diagnosis function covering CPU, memory, bus circuits and communication links; front panel LED for fault visualization

▪ Supports hot-swap replacement under redundant configuration, no need to shut down the whole control station

▪ PCB conformal coating option available, improving durability against temperature fluctuation, humidity and dust in industrial control rooms

▪ Compatible with AFV30, AFV40, A2FV50, A2FV70 series rack baseplates

▪ Optimized control cycle scheduling, suitable for large-scale continuous process control with massive tags

CP471-01

Technical Parameters

Item Specification
Model CP471-01
Manufacturer Yokogawa Electric
Product Type FCS Processor Module
Applicable Platform CENTUM VP (Vnet/IP)
Power Supply 24 VDC (19.2 ~ 30 VDC)
Communication Dual Vnet/IP Ethernet, ESB internal rack bus
Redundancy Mode Simplex / Dual redundant hot standby
Mounting Plug-in slot inside FCS rack
Cooling Natural convection, fanless structure
Operating Temperature -20 ℃ ~ +60 ℃
Storage Temperature -40 ℃ ~ +85 ℃
Ambient Humidity 5% – 95% RH, non-condensing
Approx. Weight 0.7 kg

Installation & Commissioning Guidance

Cut off rack power before disassembly and installation. Wear anti-static wrist strap to prevent electrostatic damage to internal chips. Insert CP471-01 into the dedicated processor slot and lock securely to guarantee stable backplane contact.
For redundant deployment, equip two CP471-01 modules and adopt independent upstream power supply. Separate network cables, power lines and field signal cables; use shielded Ethernet cables and implement standardized single-point grounding.
After wiring inspection, power on stepwise. Launch engineering software to download control application, set network addresses, I/O mapping and redundant synchronization parameters. Verify data communication between controller, I/O nodes and operator stations.
Simulate single processor failure to test master-slave seamless switchover. Check control output and alarm functions remain uninterrupted. After acceptance, add regular inspection tasks to check module temperature, connector tightness and historical fault logs.

Typical Application Scenarios

Petrochemical & Refining Plants

Core control unit for distillation, reaction, heat exchange and separation process units.

Thermal & Combined Cycle Power Plants

Automatic control of boiler, turbine auxiliary systems and flue gas desulfurization facilities.

Oil & Gas Compressor Stations

Pipeline pressure, flow monitoring and compressor process regulation.

Pharmaceutical & Fine Chemical Factories

Batch and continuous production parameter closed-loop control.

CENTUM VP System Upgrade & Spare Replacement Projects

Direct replacement for aging processor hardware of existing FCS control racks.
