Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AAI143-H50 S1 |
| Manufacturer | Yokogawa |
| Product Type | Analog Input Module |
| System Platform | CENTUM VP / CENTUM CS 3000 FIO |
| Input Channels | 16 channels |
| Input Signal | 4-20 mA analog current input |
| Communication | HART communication support |
| Application | Smart transmitter signal acquisition |
| Conversion Function | Analog-to-digital conversion |
| Isolation | Signal isolation design |
| Mounting | Yokogawa FIO node/rack installation |
| Communication Interface | Yokogawa ESB/ER bus architecture via node |
| Diagnostics | Module and channel status monitoring |
| Field Devices | Pressure, flow, level, temperature transmitters |
| Installation Environment | Industrial control cabinet |
Application Scenarios & Pain Points
Process plants depend on thousands of analog measurement loops, and a single failed input module can remove critical information from operators and automatic control functions. The challenge is often keeping existing transmitters and validated control strategies working while replacing aging hardware.
Typical applications:
- Oil & Gas Facilities: Used for collecting 4-20 mA signals from pressure, flow, and level transmitters across production and refining units.
- Chemical Processing: Supports HART-enabled instruments where engineers need both process values and transmitter diagnostic information.
- Power Generation: Applied for boiler, turbine auxiliary, and utility monitoring systems requiring continuous analog measurement.
- Water Treatment Plants: Used for chemical dosing, pump monitoring, and process instrumentation loops.
Field note: A utility plant experienced several unstable analog readings during routine operation. The field transmitters checked correctly, but the aging input module had developed channel issues. Replacing the AAI143-H50 S1 and validating HART communication restored reliable measurement data.

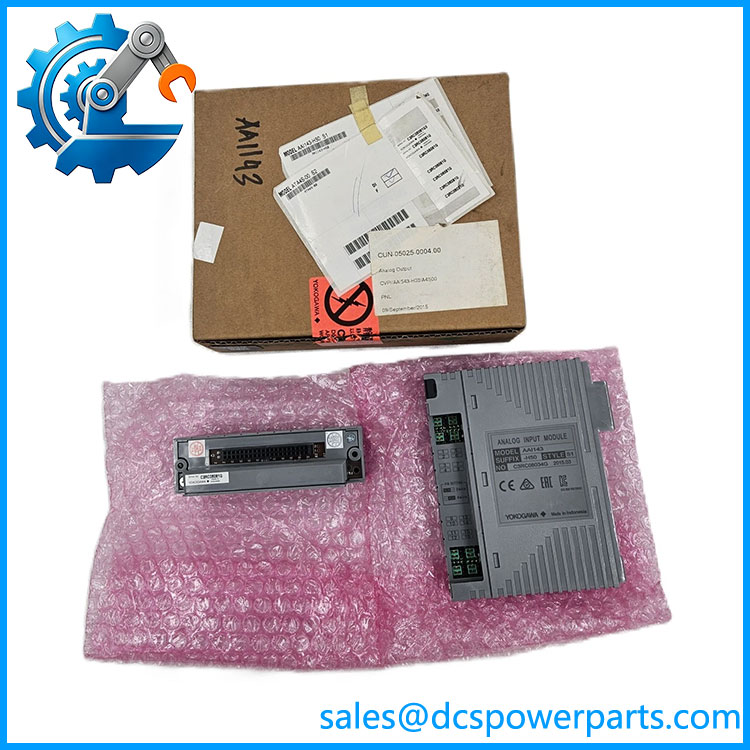

AAI143-H50 S1
Related Products
- Yokogawa AAI143-H00 — Related analog input module family for HART-capable applications. Used where similar transmitter communication functions are required.
- Yokogawa AAI143-S00 — Standard analog input module variant without the same HART-focused configuration. Suitable for conventional 4-20 mA measurement loops.
- Yokogawa AAI141-S00 — Analog input module for Yokogawa systems with different channel/application requirements.
- Yokogawa AAI835-H00 — Analog input module designed for HART-enabled field devices and smart transmitter applications.
- Yokogawa ADV151-P00 — Analog input module within Yokogawa FIO systems for process signal acquisition.
- Yokogawa ADV161-P00 — Analog output module used for continuous control signals to valves and actuators.
- Yokogawa EC401-50 S3 — ESB communication module supporting connection between FCU and remote FIO nodes.
- Yokogawa CP451-10 S2 — CENTUM VP processor module managing control execution and system communication.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ HART Functionality Verification
Not every analog input module provides identical smart transmitter functions.
How to avoid: Confirm whether the existing system uses HART configuration, diagnostics, or only basic 4-20 mA measurement before replacement.
⚠️ Incorrect Channel Database Mapping
A replacement module may communicate normally while displaying incorrect process values.
How to avoid: Verify channel numbers, engineering ranges, alarm limits, and transmitter configuration in the DCS database.
⚠️ Terminal Assembly Compatibility Problems
The I/O module is only part of the field signal path.
How to avoid: Check the terminal board, wiring drawings, and cable assemblies before installation to prevent commissioning delays.
Frequently Asked Questions (FAQ)
Can the Yokogawa AAI143-H50 S1 replace an existing AAI143 module?
It can replace a compatible installation when the system configuration, channel requirements, and HART functions match. The complete ordering code should always be checked before replacement.
What is the difference between -H50 S1 and standard modules?
The H50 version is intended for applications requiring HART-capable transmitter communication. Standard analog input versions may support only basic current measurement depending on configuration.
Does this module support smart field transmitters?
Yes, the module is designed for analog measurement applications involving HART-compatible field instruments, allowing process values and additional device information to be handled within the control system.
Why does the input value appear incorrect after replacing the module?
Common causes include:
- Incorrect input scaling
- Wrong channel assignment
- Transmitter range mismatch
- HART configuration differences
- Wiring problems
What information should be confirmed before ordering?
Recommended checks:
- Complete module model number
- CENTUM system version
- FIO node configuration
- Terminal assembly type
- Channel usage
- HART requirements
Is a refurbished Yokogawa -H50 S1 suitable for plant operation?
A properly tested refurbished module can support industrial service when it has passed analog channel testing, communication verification, HART checks, and connector inspection.
How should this module be stored as a spare?
Keep the module sealed in anti-static packaging inside a clean, dry storage area. Avoid moisture, dust, and corrosive environments that may affect electronic contacts.
