Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | EC401-50 S3 |
| Manufacturer | Yokogawa |
| Product Type | ESB Bus Interface Module |
| System Platform | Yokogawa CENTUM VP |
| Communication Function | FCU to FIO node communication |
| Bus Type | ESB (Enhanced Serial Bus) |
| Hardware Revision | S3 |
| Application | Distributed I/O communication |
| Installation Location | Field Control Unit / FIO node cabinet |
| Communication Method | Yokogawa proprietary ESB communication |
| Power Supply | System backplane supplied |
| Diagnostics | Communication status and module health monitoring |
| Mounting | Yokogawa rack-mounted module |
| Compatible Systems | CENTUM VP FCS/FIO architectures |
| Typical Use | Remote I/O expansion and cabinet networking |
Application Scenarios & Pain Points
When remote I/O communication fails, the control room may display dozens of bad-quality signals at once. The field instruments may still be working correctly—the failure may exist between the controller and the distributed I/O cabinet.
Typical applications:
- Oil & Gas Processing: Used for connecting remote I/O cabinets near compressors, pumps, and process units where long field cable runs are reduced.
- Chemical Production: Supports distributed control installations handling large numbers of analog and digital process signals.
- Power Generation: Applied in FCS cabinets supporting turbine auxiliaries, boiler systems, and plant utility controls.
- Water Treatment Facilities: Provides communication infrastructure for remote pump stations and process monitoring locations.
Field note: A refinery experienced a communication loss affecting several remote valves and transmitters. Troubleshooting showed that the field wiring and I/O modules were healthy; the ESB communication path had failed. Replacing the EC401-50 S3 and confirming node parameters restored the affected control loops.

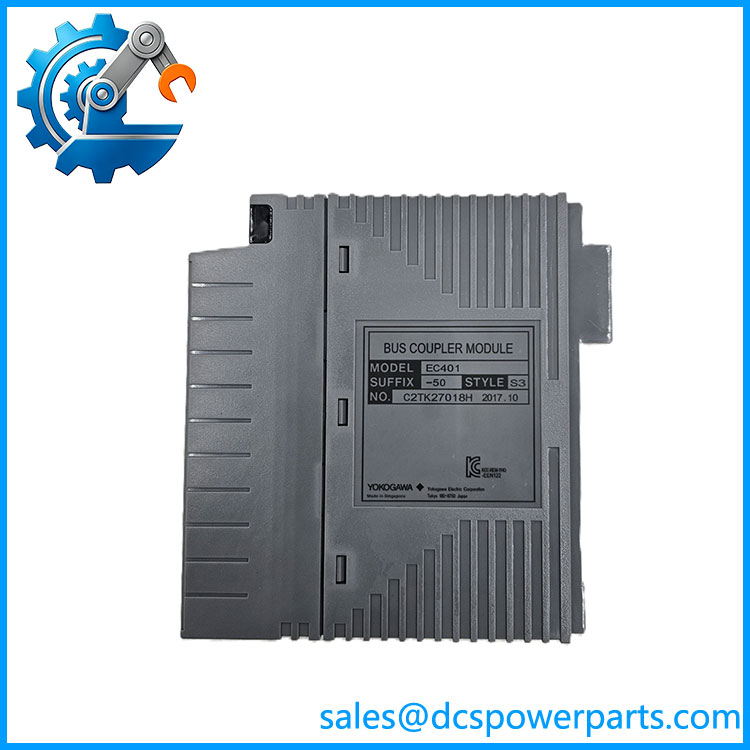

EC401-50
Related Products
- Yokogawa EC401-10 S2 — Related EC401 communication module variant used for ESB bus connection in CENTUM VP systems. Application depends on cabinet and node configuration.
- Yokogawa EC401-50 S2 — Previous revision of the EC401-50 family. Used where matching hardware revision compatibility is required.
- Yokogawa EB401-10 — ESB bus interface component used for Yokogawa distributed I/O communication expansion.
- Yokogawa ADV551-P00 S2 — Digital output module used with FIO systems for discrete device control.
- Yokogawa ADV561-P00 — Digital input module for collecting equipment status and switch signals.
- Yokogawa ADV151-P00 — Analog input module for process transmitter signal acquisition.
- Yokogawa CP451-10 S2 — CENTUM VP controller processor module communicating with FIO systems through the Yokogawa architecture.
- Yokogawa AFV10S Field Control Unit — FCU platform supporting processor, communication, and I/O modules.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Hardware Revision Compatibility Issues
modules with different suffix revisions may not behave identically across all CENTUM configurations.
How to avoid: Match the complete ordering code, including the S3 revision, with the installed system documentation.
⚠️ Incorrect ESB Network Setup
A replacement module can show normal power status while the remote I/O node remains unavailable.
How to avoid: Verify ESB cable connections, node settings, and system configuration before commissioning.
⚠️ Neglecting Backplane and Connector Inspection
Communication faults are sometimes caused by physical contact problems rather than module electronics.
How to avoid: Check connector pins for contamination, oxidation, or mechanical damage before installation.
Frequently Asked Questions (FAQ)
Can the Yokogawa -50 S3 replace an -50 module directly?
It can replace a comle installation when the CENTUM VP configuration, hardware revision, and ESB topology match. Verification of the complete part number is recommended before replacement.
What is the functionhe S3 in a Yokogawa DCS?
The module provides communication between the Field Control Unit and distributed FIO I/O nodes, allowing process signals and control commands to move between the controller and remote cabinets.
Does replache S3 require changing the control application?
Usually no. The control strategy normally remains unchanged if the replacement module is configured correctly and the communication structure is preserved.
Why does the remote I/O remain disconnected after replacing the module?
Common causes include:
- Incorrect ESB cable connection
- Wrong node configuration
- Revision incompatibility
- Communication parameter mismatch
- Faulty cable or termination
What should be confirmed before purchaan S3?
Check:
- Existing model and revision
- CENTUM VP system version
- FCU model
- ESB network arrangement
- Connected FIO node types
- Available configuration backup
Is a refued S3 suitable for critical process control?
A tested refurbished module can be used when it passes communication testing, power verification, diagnostic checks, and physical inspection of connectors and housing.
How should this module be stored as a plant spare?
Store the module in anti-static packaging inside a dry, clean cabinet. Avoid moisture, dust, and chemical exposure that can degrade electronic contacts during long-term storage.
