Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | PW484-50 S1 |
| Manufacturer | Yokogawa |
| Product Type | Power Supply Module |
| System Platform | Yokogawa CENTUM VP FCS |
| Application | Controller and I/O system power supply |
| Output Type | Regulated DC power |
| Power Configuration | Redundant power application support |
| Installation Type | Rack-mounted cabinet module |
| Mounting Location | FCS control cabinet |
| Protection Functions | Overcurrent and abnormal power protection |
| Diagnostics | Power status indication and monitoring |
| Communication | System monitoring through FCS architecture |
| Cooling Method | Cabinet airflow dependent |
| Typical Use | Continuous process automation systems |
Application Scenarios & Pain Points
Power supply issues are often misdiagnosed because the symptoms appear at higher system levels. A weak supply module may look like a processor failure, a network problem, or an I/O communication fault.
Typical applications:
- Oil & Gas Facilities: Used in Yokogawa FCS cabinets supporting refinery units, compressors, and process control systems.
- Chemical Plants: Provides stable power for controllers and I/O modules handling continuous production processes.
- Power Generation: Applied in turbine auxiliary and balance-of-plant control cabinets where unexpected resets can interrupt operation.
- Water Treatment Systems: Supports remote control cabinets managing pumps, valves, and instrumentation.
Field note: A processing facility experienced repeated controller restarts during peak operating periods. Initial checks focused on software and network communication, but voltage measurements showed unstable cabinet power. Replacing the PW484-50 S1 and inspecting the redundant supply arrangement corrected the issue.

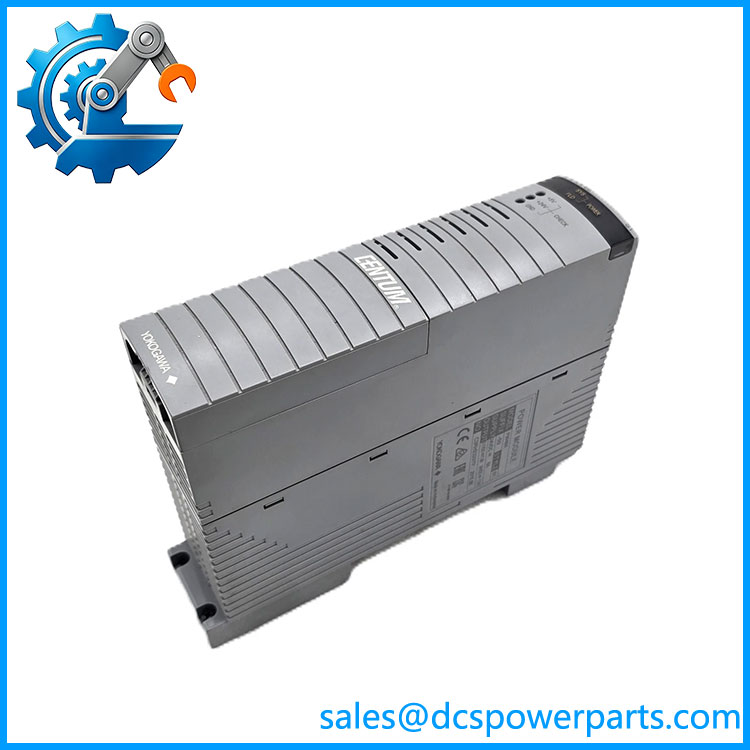

PW484-50 S1
Related Products
- Yokogawa PW484-10 S1 — Related power supply module variant used in Yokogawa control system cabinets with different installation requirements.
- Yokogawa PW482-10 S2 — CENTUM VP power supply module used for FCS hardware support in compatible configurations.
- Yokogawa PW402-10 — Power supply module for earlier Yokogawa CENTUM systems.
- Yokogawa CP451-10 S2 — CENTUM VP controller processor module installed within the same control architecture.
- Yokogawa EC401-50 S3 — ESB communication module connecting FCU processors with distributed FIO nodes.
- Yokogawa ADV151-P00 — Analog input module for process measurement acquisition.
- Yokogawa ADV551-P00 S2 — Digital output module for discrete field control.
- Yokogawa AFV10S — Field Control Unit platform supporting Yokogawa processor, communication, and I/O modules.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Selecting the Wrong Power Supply Variant
Yokogawa power modules can have similar physical designs while serving different cabinet configurations.
How to avoid: Match the full model number, suffix, and existing hardware documentation before replacement.
⚠️ Ignoring Redundant Supply Pair Conditions
A new module installed beside an aging companion supply may not resolve intermittent power problems.
How to avoid: Check both active and standby supplies, voltage readings, and alarm history.
⚠️ Backplane Contact Problems
A power module may pass bench testing but fail after installation due to poor cabinet connections.
How to avoid: Inspect rack connectors for dust, oxidation, and mechanical damage before startup.
Frequently Asked Questions (FAQ)
Can the Yokogawa PW484-50 S1 replace another PW484 power module?
Replacement depends on the installed CENTUM VP cabinet configuration and power arrangement. Confirm the complete model code and existing system design before installation.
What equipment does the PW484-50 S1 supply power to?
The module provides regulated power for Yokogawa FCS hardware, including controller and I/O-related components within compatible cabinet configurations.
Does replacing the PW484-50 S1 require changing the DCS application?
Normally no. Power supply modules do not store control strategies. After replacement, engineers should verify power status, alarms, and system diagnostics.
Why does a controller still restart after replacing the power module?
Possible causes include:
- Incorrect supply configuration
- Weak redundant companion module
- Cabinet wiring problems
- Backplane contact issues
- External power quality problems
What should be checked before ordering a PW484-50 S1?
Recommended checks:
- Existing module model and revision
- CENTUM VP system configuration
- Cabinet power arrangement
- Input power specification
- Redundancy setup
- Alarm records
Is a refurbished S1 suitable for process automation service?
A tested refurbished module can support industrial operation when it has passed voltage output testing, protection checks, alarm verification, and physical inspection.
How should this power supply module be stored?
Keep the module in anti-static packaging in a dry, clean storage area. Avoid humidity, dust, and corrosive conditions that may affect connectors and internal electronics.
