Yokogawa AIP121-S00 | PROFIBUS Module | DCS Communication Interface

Key Technical Specifications

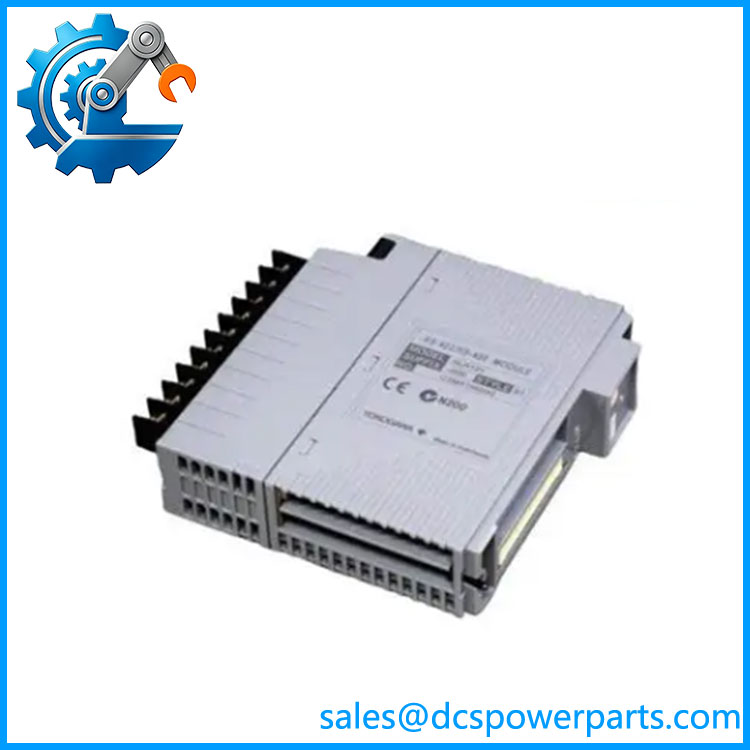

The available hardware evidence is particularly useful because the photographed label identifies AIP121-S00 directly as a PROFIBUS module, rather than an analog I/O module. This is more reliable than reseller-generated specifications that variously describe AIP121-S00 as an analog-input module, control module, or power module.

Product Introduction

The Yokogawa AIP121-S00 is a PROFIBUS communication module intended to provide network connectivity within a Yokogawa industrial automation system. Its primary role is communications rather than direct analog signal conversion, so it should be evaluated according to the installed PROFIBUS architecture, host controller, network configuration, and connected field devices.

For maintenance and procurement, the -S00 suffix and Style S2 designation matter. A physically similar Yokogawa AIP-series module should not automatically be treated as a substitute because AIP-series hardware can serve different functions. The module label should be checked against the installed system documentation before replacement.

AIP121-S00

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

A failed AIP121-S00 can appear to be a controller or I/O failure when the actual problem is the PROFIBUS communication layer. Network faults, addressing problems, termination issues, incompatible configuration files, or an incorrect replacement module can all prevent field devices from communicating correctly.

Typical Applications

• Yokogawa DCS communication networks
• PROFIBUS-connected field devices
• Process-control systems requiring PROFIBUS integration
• Legacy Yokogawa automation installations
• Replacement of failed PROFIBUS interface hardware

Technical Pitfalls to Avoid

1. Do not classify as an analog input module without verification.
   Several reseller pages publish analog-input specifications, including channel counts and voltage/current ranges, but these claims conflict with the physical identification of the unit as a PROFIBUS module.
2. Verify the complete suffix and hardware style.
   The available label identifies the unit as , -S00, Style S2. These identifiers should be matched when sourcing a replacement.
3. Check the PROFIBUS configuration before commissioning.
   Confirm node addressing, master configuration, bus termination, cable/shielding arrangement, and the Yokogawa-side configuration database before replacing the hardware.
4. Do not rely on generic electrical specifications from reseller listings.
   Claims such as 16-bit analog resolution, ±10 V inputs, IP67 protection, or 220 V operation appear in third-party descriptions but are not credible as specifications for a PROFIBUS communication module and should not be used for procurement.

Related Products

• Yokogawa CP461-50 — Yokogawa control/processor module; function is fundamentally different from the communication interface.
• Yokogawa CP451-10 — Processor module used in Yokogawa controller architectures.
• Yokogawa EB501 — Bus interface module used in Yokogawa FCN-500 systems; useful when distinguishing communication-interface hardware from I/O modules.
• Yokogawa NFAI143-H00 — Analog input modulike , this is field analog signal acquisition hardware.
• Yokogawa SDV144-S13 — Digital input module for Yokogawa systems.
• Yokogawa ANB10D — Bus node unit used in Yokogawa I/O architectures.
• Yokogawa AIP171 — Another AIP-series communication/interface product; verify the exact application and network function before substitution.

Procurement & Replacement Check

Before purchasing a , verify:

• Exact model:
• Suffix: -S00
• Style: S2
• Label identification: PROFIBUS MODULE
• Host Yokogawa system
• PROFIBUS master/controller
• PROFIBUS network topology
• Node address
• Bus termination arrangement
• Existing configuration/database
• Connector and cable condition
• Firmware/hardware revision
• Original module artwork and serial number

Recommended procurement description:

awa PROFIBUS Module, Style S2, Yokogawa Industrial Automation/DCS Communication Interface — Verify Host System and PROFIBUS Configuration Before Replacement.

The key identification point is = Yokogawa PROFIBUS module. I would not publish the commonly repeated analog-input specifications found on reseller pages unless the original Yokogawa documentation for act revision confirms them.
