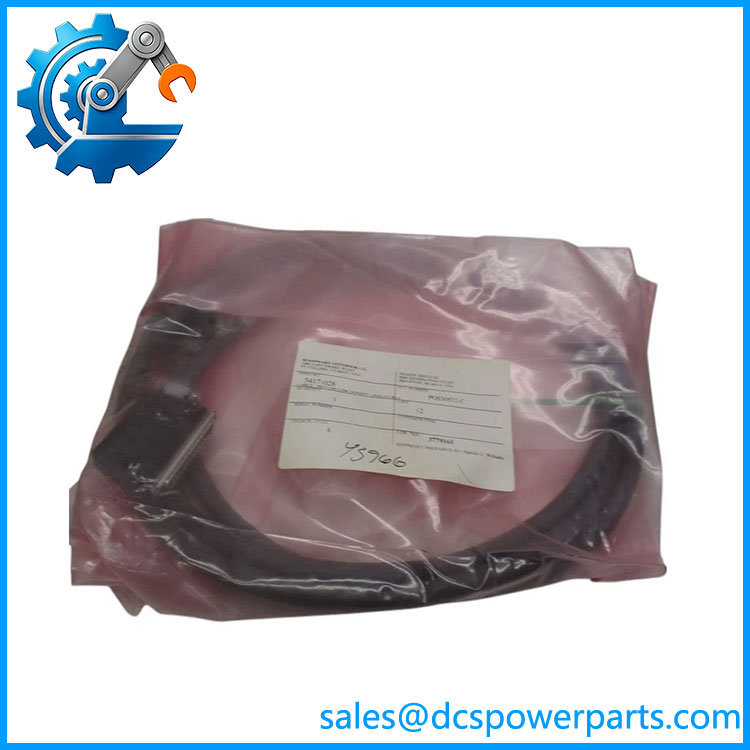

Woodward 5417-028 | NetCon Low-Density Analog Cable | 10-Foot MicroNet Cable
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Part Number | 5417-028 |
| Component Type | Cable assembly |
| Cable Function | Low-density analog I/O interconnection |
| System Family | NetCon / MicroNet |
| Length | 10 ft |
| Approx. Length | 3.05 m |
| Color | Black |
| Application | Turbine control system cabling |
| OEM Status | Legacy part |
The 10-foot length, black color, and low-density analog designation are explicitly documented by Woodward. Do not confuse this cable with Woodward’s similarly numbered high-density analog/discrete cables.
Product Introduction
The Woodward 5417-028 is a legacy NetCon low-density analog cable assembly used for signal interconnection in compatible Woodward control-system configurations. Woodward lists it specifically as a black, 10-foot cable, making the part primarily an installation and maintenance component rather than an active electronic module.
For maintenance teams working on older MicroNet or NetCon installations, cable identification matters. A physically similar cable with the wrong pinout, termination, or signal assignment can create difficult-to-diagnose analog problems even when the controller and I/O modules themselves are functioning correctly.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When an analog signal suddenly becomes unstable after cabinet maintenance, the first assumption is often a failed I/O module. On legacy Woodward systems, the cable assembly deserves equal attention. Connector seating, conductor continuity, shielding, routing, and the exact cable family can all affect the signal path.
5417-028
Typical Applications
- Woodward NetCon control-system cabinets
- MicroNet turbine-control installations using low-density analog I/O
- 505-series turbine control configurations
- Maintenance replacement for damaged or missing analog interconnection cables
Technical Pitfalls
1. Verify that the application actually uses low-density analog cabling.
Woodward separately identifies low-density analog cables and high-density analog/discrete cables. 5417-028 should not be substituted simply because another Woodward cable has compatible-looking connectors.
2. Confirm the length.
5417-028 is specifically identified as the 10-foot version. Woodward’s current documentation also lists neighboring cable numbers for other lengths, so the part number should be checked against the installed cable before ordering.
3. Inspect the complete cable assembly.
For a legacy spare, check connector housings, keying, strain relief, contact condition, cable jacket, and any identification labels. A cable that passes a basic continuity test can still have damaged shielding or intermittent connector contacts.
4. Do not infer pinout from cable appearance.
The cable’s electrical function depends on its intended Woodward system configuration. If the original cable is unavailable, confirm the cabinet drawing or system documentation before fabricating an alternative.
5. Separate cable faults from I/O faults.
If several analog channels show abnormal behavior simultaneously, inspect the common cable and termination path before replacing multiple I/O modules.
6. Watch for documentation and part-number confusion.
Some third-party listings classify 5417-028 generically as a PLC accessory or even provide inconsistent physical specifications. Woodward’s own documentation is the better reference for its intended designation: NetCon Low Density Analog, Black, 10 ft.
Related Products
- Woodward 5417-026 — 6-foot black low-density analog cable.
- Woodward 5417-027 — 8-foot black low-density analog cable.
- Woodward 5417-029 — 12-foot black low-density analog cable.
- Woodward 5417-030 — 14-foot black low-density analog cable.
- Woodward 5417-031 — 16-foot black low-density analog cable.
- Woodward 5417-032 — 18-foot black low-density analog cable.
- Woodward 5417-033 — 20-foot black low-density analog cable.
- Woodward 5417-034 — 22-foot black low-density analog cable.
- Woodward 5417-173 — high-density analog/discrete cable, functionally different from 5417-028.
Procurement Note
For 5417-028, provide the complete part number, required cable length, existing system/chassis configuration, and a photo of the original connector ends when requesting a replacement. The key issue is not whether a cable physically reaches between two points; it is whether the cable’s intended signal assignment and termination arrangement match the installed Woodward system.
