SHINKAWA VM-5C SST-2194-001-P001G Product Description

Product Overview

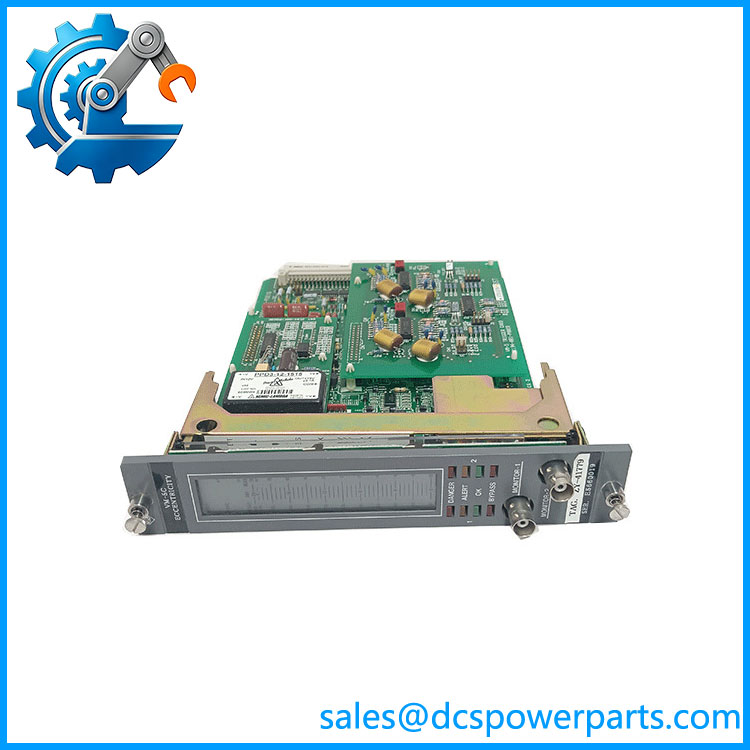

SHINKAWA VM-5C SST-2194-001-P001G is a specialized rotating machinery condition monitoring module from the SHINKAWA VM-5 series. Available product references identify the VM-5C as an eccentricity monitoring unit designed to measure shaft runout and displacement, particularly during turbine startup, shutdown and turning-gear operation. It is intended for integration into machinery supervisory and protection systems where reliable detection of abnormal rotor movement is essential.

The SHINKAWA VM-5C SST-2194-001-P001G accepts signals from non-contact proximity transducers and converts shaft movement into monitored measurement values, alarm conditions and control-system outputs. Its role is especially important for steam turbines, gas turbines, compressors and other high-speed rotating machinery. The VM-5C SST-2194-001-P001G can provide local indication and alarm information for integration with DCS, PLC or machinery protection logic, helping operators identify excessive rotor eccentricity before it develops into rotor-to-stator rubbing, bearing damage or other mechanical failures.

Technical Specifications

*Some specifications are reported by secondary industrial sources for the VM-5C family and may vary according to configuration. The exact electrical range, alarm arrangement and transducer compatibility should be verified against the installed unit’s original configuration.

Main Features and Advantages

Dedicated Shaft Eccentricity Monitoring

The primary value of VM-5C SST-2194-001-P001G is its ability to monitor shaft eccentricity, a critical low-speed mechanical parameter that is different from conventional dynamic vibration. Excessive eccentricity can indicate rotor bow, uneven thermal distribution, shaft deformation or abnormal mechanical conditions. Detecting these conditions early helps operators prevent damage during critical startup and shutdown periods.

Protection During Turbine Startup

Large turbine rotors can develop temporary shaft bow after extended shutdowns. During turning-gear operation, the VM-5C provides an important indication of whether the rotor has returned to an acceptable mechanical condition before the machine is accelerated. If eccentricity remains excessive, operators can delay startup and allow the rotor to stabilize rather than risk rotor-to-stator contact.

VM-5C

High-Value Machinery Protection

The module can provide configurable ALERT and DANGER thresholds. When measured eccentricity exceeds predefined limits, alarm contacts can be transmitted to annunciation, DCS, PLC or machinery shutdown circuits. This creates a direct connection between mechanical-condition monitoring and plant protection logic.

Local and Remote Monitoring

The VM-5C combines local measurement indication with output interfaces for external systems. Recorder outputs can be used for trending, while relay outputs provide discrete alarm information. This allows maintenance personnel to observe the actual machine condition locally while control-room operators receive corresponding status information.

Integration with VM-5 Architecture

SHINKAWA VM-5C SST-2194-001-P001G is designed as part of the modular VM-5 monitoring ecosystem. It can be installed in compatible VM-5 racks and combined with power-supply, relay and sensor components to form a dedicated turbine supervisory or machinery protection system.

Maintenance and Replacement Value

The VM-5 series is used in long-life rotating-equipment installations, making exact replacement modules valuable for maintaining existing turbine and compressor monitoring systems. Matching the complete SST-2194-001-P001G configuration is important because apparently similar VM-5 modules may perform different monitoring functions.

Application Fields

SHINKAWA VM-5C SST-2194-001-P001G is primarily suited to rotating machinery monitoring and protection, particularly where shaft eccentricity must be observed during startup, shutdown and low-speed operation.

In thermal and combined-cycle power plants, the module can monitor steam- and gas-turbine rotor eccentricity while the machine is on turning gear. Excessive shaft bow can be detected before the rotor reaches operating speed, reducing the possibility of rotor-to-stator rubbing and associated mechanical damage.

In oil and gas and petrochemical facilities, the VM-5C can be applied to large turbine-driven compressors and other critical rotating equipment. Continuous eccentricity information provides maintenance teams with an additional mechanical-health parameter alongside conventional vibration, bearing and axial-position measurements.

In chemical and process industries, the module is suitable for compressor trains, turbine-driven pumps and other high-value rotating assets where an unexpected mechanical failure can cause extended production interruption. Alarm contacts can be incorporated into plant DCS or PLC logic for centralized annunciation.

The unit is also relevant to marine propulsion, heavy industrial machinery and large rotating equipment where shaft alignment and runout are important operational considerations. Its primary benefit is early identification of abnormal shaft displacement so operators can make informed decisions before accelerating or continuing operation of critical machinery.

Related Products

• VM-5K SST-2194-001-P001G — Related VM-5 series monitoring unit; listed alongside the VM-5C in industrial component references and associated with rotating-machinery monitoring.
• VM-5H3 — VM-5 series 8-slot instrument rack used to accommodate compatible monitoring modules.
• VM-5W1 — 10-slot VM-5 rack configuration for larger machinery-monitoring systems.
• VM-5G — Compact VM-5 monitoring configuration with integrated power-supply arrangement.
• VM-5Z / VM-5Z4 — VM-5 series power-supply hardware for providing operating power to monitoring modules.
• VM-5Y1-02/GEM — Related VM-5 relay/interface module used for alarm and protection-system interfacing.
