Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 9562-810 |
| Manufacturer | Triconex |
| System Generation | Tricon v9–v10 |
| Panel Type | Commoned digital input termination panel |
| Input Voltage | 48 VAC/VDC |
| Termination Points | 16 |
| Compatible Module | 3502E |
| Module Points | 32 |
| Panels Required per Module | 2 |
| Commoned Power | PWR+ / PWR− |
| Point Protection | Individual fuse |
| Fuse Indication | Blown-fuse LED |
| Typical Leakage Current | 2.0 mA per point |
| Maximum Leakage Current | 3.5 mA per point |
Tricon documentation specifies the 9562-810 as a 48 V, commoned, 16-point termination panel. Each point is protected by a fuse with blown-fuse indication. The compatible 3502E module has 32 points, so two termination panels are required for one complete module.
Product Introduction
The TRICONEX 9562-810 is a field termination panel designed for Tricon’s 48 VAC/VDC digital input architecture. It provides 16 commoned field termination points and interfaces with the 3502E 32-point digital input module. The panel also incorporates individual point fusing and blown-fuse indication, giving maintenance personnel a direct means of identifying certain field-side protection faults.
The panel itself is not the digital input electronics. Signal processing, isolation, self-test, and TMR input handling reside in the associated Tricon I/O module. The 9562-810 provides the cabinet-side field termination and protection interface.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A termination-panel replacement is easy to misidentify because Tricon uses similar-looking panels for different voltage classes and I/O functions. The 9562-810 is specifically a 48 V commoned digital-input panel. Substituting a 24 V or 115 V panel can create an incorrect field interface even when the physical installation appears acceptable.

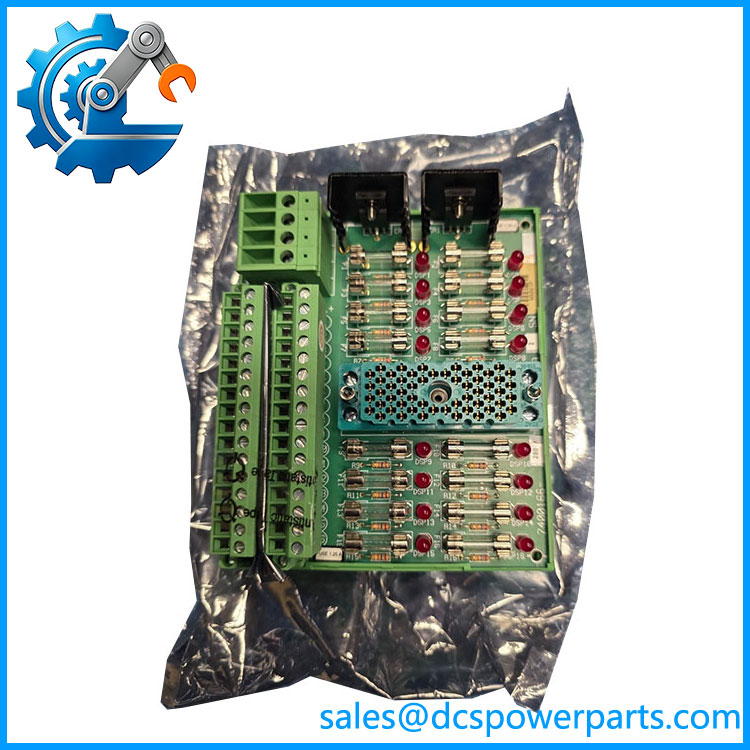

9562-810
Typical Applications
- Tricon 3502E digital input systems — provides termination for 48 VAC/VDC field contacts.
- Process safety systems — used within legacy Tricon safety-system cabinets where 3502E input modules remain installed.
- Field contact monitoring — suitable for commoned 48 V digital field signals.
- Legacy Tricon maintenance — replacement for damaged termination hardware, fuses, terminals, or panel assemblies.
Technical Pitfalls
1. Do not confuse 9562-810 with a CPU or central processor.
Some commercial listings incorrectly classify this part as a Tricon processor. The Tricon documentation identifies it as a digital input termination panel.
2. Voltage matching is critical.
The 9562-810 is the 48 VAC/VDC version. The related 9561-810 is for 115 V applications, while 9563-810 is for 24 V applications.
3. One panel does not cover all 32 module points.
The 3502E has 32 digital input points, while each 9562-810 terminates 16 points. The complete installation therefore uses two termination panels per 3502E module.
4. Commoned wiring affects field troubleshooting.
This is a commoned termination arrangement rather than a fully non-commoned 16-channel interface. Review the field power distribution and commoning arrangement before changing the wiring.
5. Check the fuse condition before condemning the I/O module.
Each input point has fuse protection and blown-fuse indication. A field-loop problem may therefore be visible at the termination panel before the 3502E module itself is considered defective.
6. Do not substitute the newer “F” version without checking the system requirement.
The later 9562-810F is also documented as a 48 V, commoned, 16-point termination panel, but it belongs to the later termination-panel documentation and should be matched against the installed system revision and certification requirements.
Related Products
- TRICONEX 3502E — 32-point 48 VAC/VDC commoned digital input module compatible with 9562-810.
- TRICONEX 9561-810 — 115 V commoned 16-point digital input termination panel.
- TRICONEX 9563-810 — 24 V commoned 16-point digital input termination panel.
- TRICONEX 9562-810F — later 48 V commoned 16-point termination-panel version.
- TRICONEX 9552-610 — basic termination option associated with the 3502E family.
- TRICONEX 9101-010 — fanned-out cable termination option used with Tricon digital input modules.
- TRICONEX 3501E — 115 VAC/VDC 32-point digital input module using the 9561-810 termination family.
- TRICONEX 3503E — 24 VDC 32-point digital input module associated with the 9563-810 family.
Procurement Note
For 9562-810, verify the exact part number, 48 V signal class, commoned configuration, and associated 3502E module before purchase. If replacing an existing panel, document the two-panel arrangement and field-terminal numbering before removal. Do not select a termination panel solely by its connector appearance; Tricon uses separate panels for different input voltages and termination architectures.
