Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | TRICONEX / Invensys |
| Model | 7400212-100 |
| Product Type | Safety Control Module |
| System Family | Tricon Safety Instrumented System |
| Architecture | Triple Modular Redundancy (TMR) |
| Application | Safety and critical process control |
| System Communication | Tricon internal communication bus |
| Installation | Tricon chassis / rack system |
| Function | Safety logic and process control interface |
| Diagnostics | Built-in fault monitoring |
| Typical Safety Level | SIL 3 capable system architecture |
| Power Supply | Tricon system supplied |
| Operating Environment | Industrial process environments |
| Typical Use | ESD, F&G, turbine and process protection |
Product Introduction
TRICONEX 7400212-100 Overview
The TRICONEX 7400212-100 is a safety control module designed for use within TRICONEX Tricon safety instrumented system architectures. It is part of a family of industrial automation components developed for applications where continuous availability, fault tolerance, and safety-related decision making are required.
The TRICONEX 7400212-100 module operates within the Tricon TMR architecture, where multiple processing paths work together to provide fault detection and continued operation during hardware failures. This approach allows safety systems to maintain control availability while identifying internal module faults through diagnostic mechanisms.
The TRICONEX 7400212-100 is typically installed as part of a complete Tricon safety system that includes processors, communication modules, I/O modules, terminal assemblies, and engineering configuration tools. The module itself should be considered as one element in the complete safety lifecycle rather than an independent control device.
The Triconex 7400212-100 control module is used in industrial environments where incorrect operation can create significant process risks. Typical applications include emergency shutdown systems, critical equipment protection, and safety-related process monitoring. These systems are commonly deployed in refineries, chemical plants, offshore facilities, and power generation installations.
When replacing a TRICONEX 7400212-100, engineers should verify the existing Tricon chassis configuration, system firmware compatibility, application database, module position, and diagnostic status. Safety system hardware replacement requires careful validation because incorrect configuration may affect system availability or protective functions.
The 7400212-100 TRICONEX module should be evaluated together with the complete Tricon architecture. A module alarm does not always indicate hardware failure; possible causes may include communication faults, power supply issues, configuration mismatches, or related I/O problems.

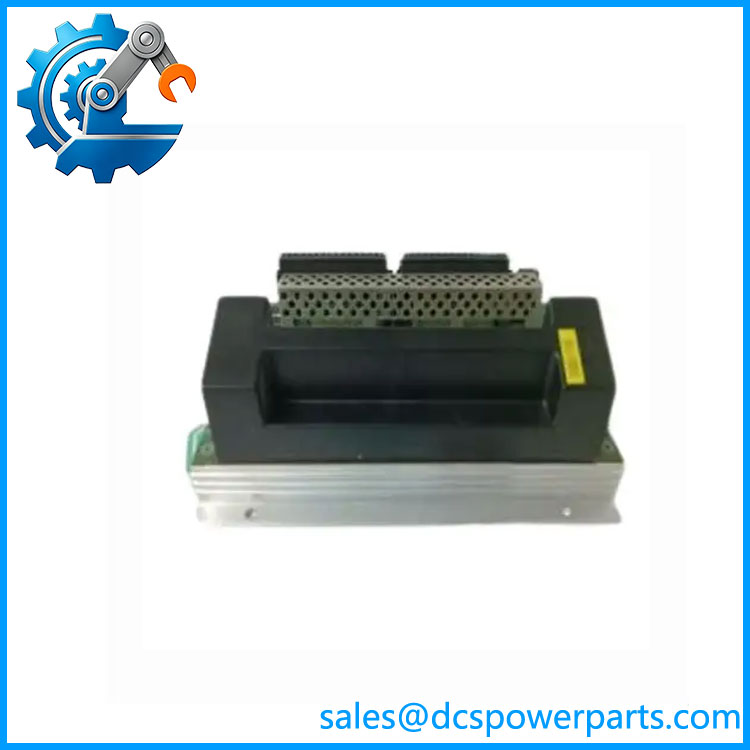

7400212-100
Application Scenarios & Field Considerations
Engineering Pain Point
Typical issues involving the TRICONEX 7400212-100 include:
- Module diagnostic alarms
- Controller communication faults
- Safety system maintenance events
- Unexpected module status changes
- Replacement commissioning challenges
Possible causes:
- Aging hardware components
- Chassis connection problems
- Incorrect system configuration
- Firmware mismatch
- Power supply instability
Recommended troubleshooting steps:
- Review Tricon diagnostic reports
- Check module LED indicators
- Verify chassis slot assignment
- Confirm firmware compatibility
- Review application configuration
- Inspect system power and communication status
The TRICONEX 7400212-100 operates inside a safety controller environment, so troubleshooting should always consider the complete SIS architecture.
Typical Applications
Emergency Shutdown Systems (ESD)
Used for:
- Process trip functions
- Shutdown logic execution
- Critical equipment protection
Oil & Gas Facilities
Applied for:
- Offshore platform safety systems
- Refinery protection
- Pipeline monitoring
Chemical Processing
Used for:
- Reactor protection
- Safety interlocks
- Process hazard mitigation
Power Generation
Applied for:
- Turbine protection
- Auxiliary system safety control
- Critical equipment monitoring
Technical Pitfalls to Avoid
1. Verify System Compatibility
Confirm:
- Tricon controller generation
- Chassis type
- Firmware version
- Application configuration
2. Preserve Safety Configuration
Before replacement:
- Backup Tricon application
- Record module location
- Document diagnostics
- Verify approved change procedures
3. Check Related Hardware
Inspect:
- Power modules
- Communication modules
- I/O modules
- Terminal panels
4. Perform Functional Validation
After installation:
- Verify module diagnostics
- Confirm system communication
- Test safety logic functions
- Complete required commissioning procedures
Related Products
- TRICONEX 7400207-001 MP2101
Main processor baseplate used within Tricon controller architectures. - TRICONEX 7400210-010 AI2351
Analog input module for Tricon safety systems. - TRICONEX 7400213-100
Related Tricon system module used in safety control architectures. - TRICONEX 8310 / 8311 Power Modules
Power supply components used in Tricon safety systems. - TRICONEX Tricon Controller Platform
Triple Modular Redundant safety controller family for critical industrial applications.
