Description
Product Overview
The Triconex 4200 is the primary-side Remote Extender Module used in Tricon safety-system architectures where I/O must be installed away from the main chassis. The documented configuration, 4200-3, is a three-module primary RXM set designed for multimode fiber-optic communication. It extends the Tricon I/O bus rather than executing application logic or directly interfacing with field instruments. In the installed architecture, the primary RXM set sits near the main Tricon chassis and communicates with remote RXM sets installed at remote I/O locations.
For engineers working on legacy Tricon systems, the Triconex 4200 is important because its position in the fiber architecture is specific. The 4200-3 is the primary module set; the corresponding remote-side module is 4201-3. Both use multimode fiber and are specified for a maximum cable length of approximately 1.2 miles (2 km). Tricon documentation specifies a 375 kbps RXM communication rate and identifies fiber-optic connections using ST connectors. The primary RXM set can support up to three remote RXM or expansion locations.
The optical architecture also provides ground-loop isolation between the main and remote portions of the I/O installation. That matters in plants where remote I/O is separated by substantial cable distances or installed in electrically different areas. The documented RXM design uses three communication channels, with transmit and receive fiber paths for each channel. This means the physical fiber installation is not simply a single Ethernet-style cable run; connector count, channel assignment, fiber type, attenuation, and termination quality all affect commissioning.
For procurement, verify whether the required item is a complete 4200-3 three-module set or an individual module from that assembly. Do not assume that a loose 4200 module and a complete 4200-3 set represent the same commercial package.
Product Introduction (Non-Templated)
Remote I/O expansion on a legacy Tricon system depends on the RXM pair being correctly matched. The Triconex 4200 occupies the primary side of that link, using multimode fiber at 375 kbps and supporting remote locations up to approximately 2 km away.
For a Tricon DCS/SIS legacy replacement, the key check is architecture, not appearance: 4200-3 is primary multimode RXM, while 4201-3 is the remote counterpart. Single-mode 4210/4211 equipment belongs to a different fiber configuration.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 4200 / 4200-3 |
| Product Family | Tricon RXM |
| Product Type | Primary Remote Extender Module Set |
| Chassis Location | Primary / Main Chassis Side |
| Fiber Type | Multimode |
| Communication Rate | 375 kbps |
| Maximum Cable Length | 1.2 miles / 2 km |
| Fiber Connector | ST |
| Remote Locations Supported | Up to 3 |
| Communication Architecture | Three-channel RXM fiber link |
| Diagnostic Indicators | PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3 |
| Typical Fiber | 62.5/125 µm multimode |
| Typical Optical Wavelength | 850 nm |
| Application | Tricon remote I/O / expansion chassis |
The Tricon planning documentation specifies 62.5/125 µm multimode fiber for 4200-3/4201-3, with operation around 850 nm. It also gives a worst-case fiber attenuation specification of 4 dB/km and describes an optical power budget for the RXM transmitter/receiver pair. Actual installed distance must account for connector, splice, and junction losses rather than relying on the nominal 2 km figure alone.

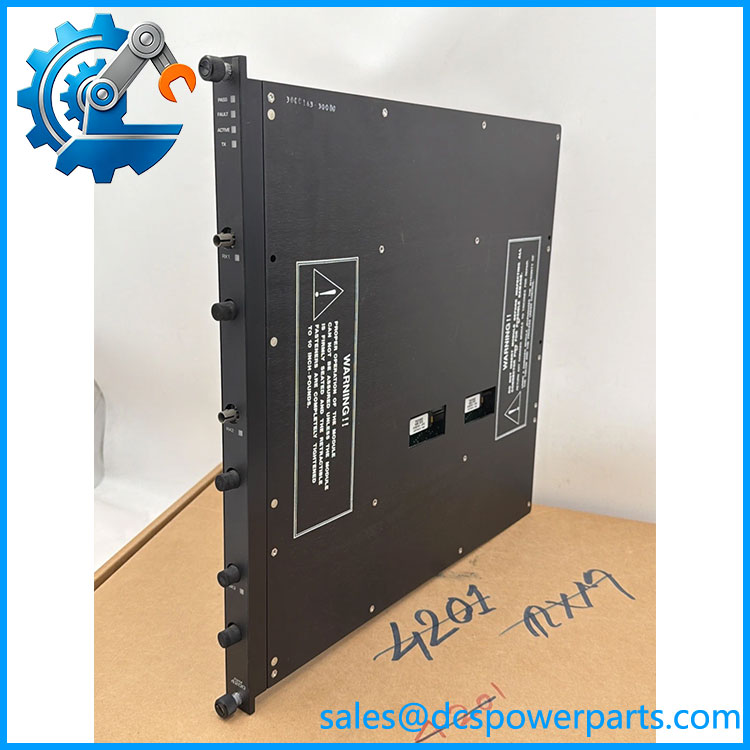

Triconex 4200
Related Products
- Triconex 4201 / 4201-3 — Remote-side multimode RXM set used with the primary 4200-3 architecture. It belongs at the remote chassis rather than beside the main chassis.
- Triconex 4210 / 4210-3 — Primary single-mode SRXM set. It uses a different fiber architecture and supports much longer distances than the 4200-3.
- Triconex 4211 / 4211-3 — Remote-side single-mode SRXM counterpart to the 4210-3.
- Triconex 3008 — Main Processor family. It performs the control logic and safety processing; it is not an RXM replacement.
- Triconex 8110C — Tricon main chassis family used to house system modules.
- Triconex 8112C — Remote/expansion chassis hardware associated with distributed I/O configurations.
- Triconex 4119 / 4119A — Enhanced Intelligent Communication Module family with a different communications role from the RXM.
- Triconex 4329 / 4329G — Network Communication Module family; intended for network-level communication rather than optical I/O-bus extension.
FAQ
Can I replace a Triconex 4200 with a 4201?
No, not as a direct positional replacement. The documented 4200-3 is the primary RXM, while 4201-3 is the remote RXM. They form the two sides of the multimode fiber architecture and have different chassis positions.
Is the Triconex 4200 a single module or a three-module set?
The formal Tricon documentation identifies 4200-3 as a Primary RXM Module Set using three modules. If purchasing a loose module marked 4200, confirm exactly what the supplier’s part-number and packaging designation represents before treating it as a complete 4200-3 assembly.
What fiber does the 4200 use?
The 4200-3 uses multimode fiber, optimized in the documented architecture for 62.5/125 µm fiber at 850 nm. ST fiber-optic connectors are specified.
How far can a 4200-3 communicate?
The documented maximum is approximately 1.2 miles (2 km) for the multimode RXM configuration. Fiber attenuation, connectors, splices, and junctions must be included in an actual link budget.
Can I use a 4200 with single-mode fiber for a longer run?
That is not the documented configuration. The 4210/4211 SRXM family is specifically designed for single-mode fiber and supports distances up to approximately 12 km. Substituting fiber type alone does not convert a 4200 architecture into a 4210 architecture.
Can I hot-swap this module?
Do not assume hot replacement solely from the 4200 designation. This is part of a safety-system communication architecture, so removal and replacement should follow the applicable Tricon system maintenance procedure, including any requirements for the RXM chassis and affected remote I/O.
Does the 4200 retain Tricon application logic?
No. The 4200 is an I/O-bus extender/communications component. Application logic is executed by the Tricon processor system. Replacing an RXM does not constitute replacing the controller’s application program, but the complete communication path must be restored and verified before returning the safety system to service.
