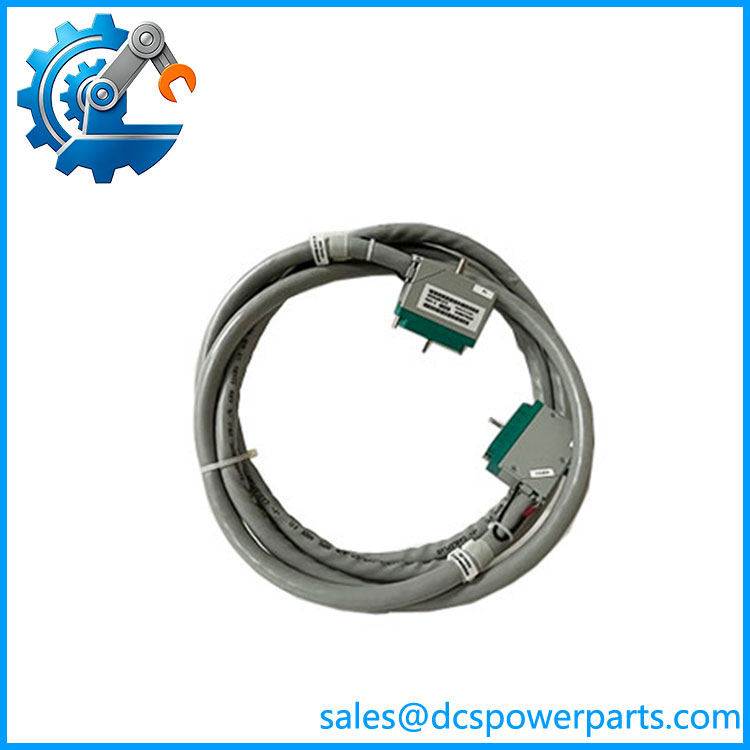

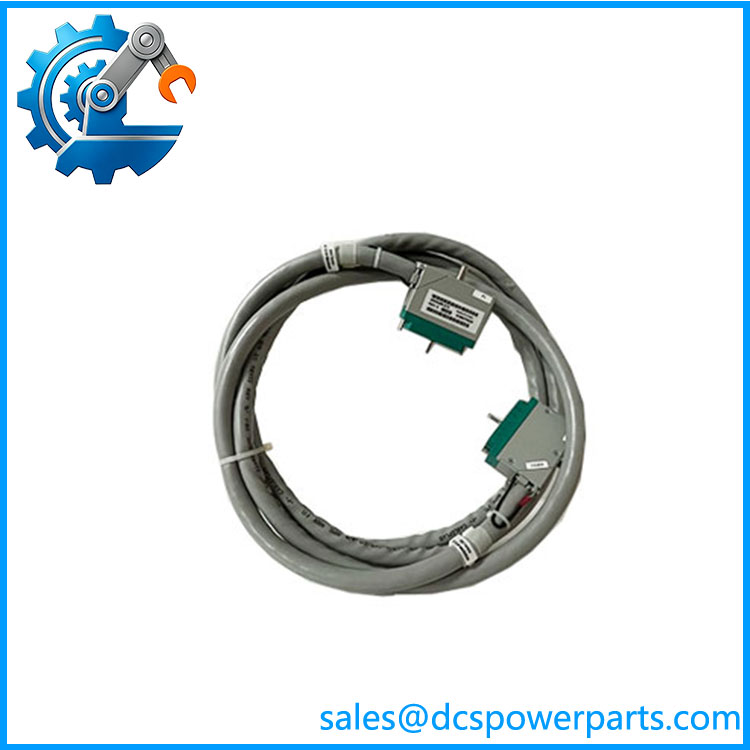

TRICONEX 4000093-310 | External Terminal Input Cable Assembly | Tricon I/O
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex / Invensys |
| Part Number | 4000093-310 |
| Product Type | External terminal input cable assembly |
| System | Tricon / Triconex |
| Function | Termination-panel to I/O interface connection |
| Typical Length | 10 ft / 3 m |
| Associated Termination Panels | 9553-610, 9563-810, 9566-710, 9566-810 |
| Cable Family | 4000093 series |
| Installation | Factory-terminated cable assembly |
| Application | Tricon digital I/O termination architecture |
The Tricon technical product guide specifically identifies 4000093-310 as the cable associated with several termination-panel models. This is more useful for engineering replacement than generic descriptions that list unsupported conductor, impedance, connector, or voltage specifications.
Product Introduction
The TRICONEX 4000093-310 is an external terminal cable assembly used within the Tricon I/O termination architecture. It provides the preconfigured connection between compatible external termination hardware and the Tricon system, reducing the need for field-made point-to-point wiring.
For maintenance teams, the important characteristic is system compatibility rather than electrical cable specifications alone. The Tricon documentation maps 4000093-310 to specific termination-panel families, so the existing panel model should be confirmed before ordering a replacement.
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A damaged or incorrectly matched Tricon cable can create multiple apparent I/O faults at once. Because the cable sits between the termination assembly and Tricon electronics, an open conductor, damaged connector, or incorrect cable variant can be mistaken for a failed I/O module.
Typical Applications
- Triconex Tricon safety instrumented systems
- Digital input termination assemblies
- Legacy Tricon field termination cabinets
- Plant maintenance and I/O cable replacement
Technical Pitfalls to Avoid
- Match the termination-panel model, not just the cable number.
The Tricon technical guide maps 4000093-310 to specific panels, including 9553-610 and 9563-810. Confirm the installed panel before substitution. - Do not confuse 4000093-310 with 4000094-series cables.
The Tricon documentation separates these cable families by termination-panel application. The 4000093-310 mapping is associated with specific input-side termination configurations, while 4000094-series cables appear in separate termination-panel mappings. - Do not rely on marketplace-generated electrical specifications.
Several online listings give conflicting connector, voltage, conductor, and cable-length information for this part. The safest engineering reference is the Tricon termination-panel/cable cross-reference and the actual cabinet wiring documentation.
Related Products
- TRICONEX 9553-610 — Tricon termination panel specifically cross-referenced with 4000093-310.
- TRICONEX 9563-810 — Another compatible termination-panel model listed with 4000093-310.
- TRICONEX 9566-710 — Termination panel using the same 4000093-310 cable family.
- TRICONEX 9566-810 — Additional termination-panel configuration mapped to 4000093-310.
- TRICONEX 4000093-110 — Related cable variant for different termination-panel configurations.
- TRICONEX 4000093-210 — Related 4000093-series cable for another termination-panel configuration.
- TRICONEX 4000094-310 — Separate Tricon cable family; do not substitute without checking the termination-panel architecture.
- TRICONEX 3503E / 3504E — Tricon I/O hardware appearing in some third-party descriptions of the 4000093 cable family; verify the exact cabinet drawing before associating a specific module with this cable.
Procurement Check
Before purchasing a TRICONEX 4000093-310, verify:
- Exact part number: 4000093-310
- Existing Tricon chassis/system revision
- Termination-panel model
- Cable length
- Connector/keying arrangement
- Cabinet wiring documentation
- Cable condition and connector locking mechanism
- Existing cable routing and bend radius
- Whether the replacement is new, surplus, or previously installed
- Continuity and point-to-point verification before energizing the system
Recommended procurement description:
TRICONEX 4000093-310 External Terminal Input Cable Assembly, Tricon Safety System I/O Interconnection Cable, 10 ft / 3 m Class, for Compatible Tricon Termination Panels.
The key procurement point is simple: 4000093-310 is a cable assembly, not a Tricon I/O module or processor. Its correct replacement depends on the termination-panel model and cabinet wiring, and the Tricon technical guide should take priority over generic online specifications.
