TRICONEX 3902AX | Universal I/O Module | Tricon CX Safety System

Key Technical Specifications

The TRICONEX 3902AX is documented as a 16-point TMR Universal Input/Output module for the Tricon CX platform. Each point can be independently configured as AI, DI, AO, or DO, while analog points can support HART monitoring.

Important correction for procurement: some commercial listings incorrectly describe the 3902AX as having 24 channels or as an 8-channel analog-output module. The Tricon CX technical documentation identifies 3902X/3902AX as 16-point UIO modules. Use the OEM configuration documentation rather than marketplace specifications when approving a replacement.

3902AX

Product Introduction

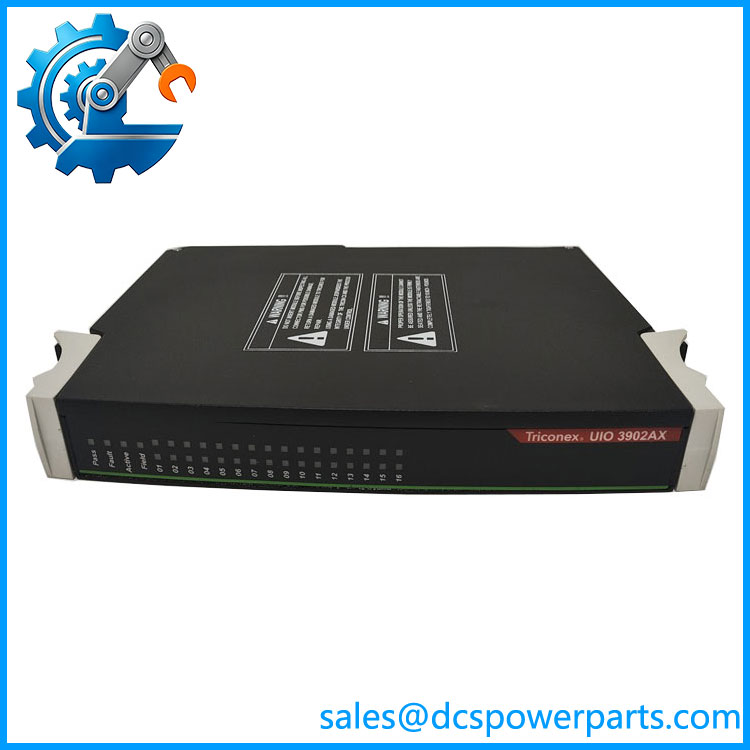

TRICONEX 3902AX Universal I/O Module

The TRICONEX 3902AX is a 16-point Universal Input/Output module designed for the Tricon CX safety system. Each point can be configured independently for analog input, analog output, digital input, or digital output, giving engineers considerably more flexibility than dedicated single-function I/O cards. HART functionality is available for configurable analog points.

The practical advantage is I/O consolidation without abandoning the TMR safety architecture. For an existing Tricon CX installation, the 3902AX can handle mixed field signals where a project would otherwise require several dedicated module types. That said, termination hardware and point configuration must be checked before replacement.

Application Scenarios & Field Pitfalls

Engineering Pain Point

Mixed-signal safety panels create a common maintenance problem: one cabinet may contain analog transmitters, discrete shutdown contacts, valve commands, and intelligent HART instruments, yet the available spare inventory is fragmented across several module types. The 3902AX addresses this particular design issue by providing 16 independently configurable points. It is not simply a generic mixed-I/O card; it belongs specifically to the Tricon CX architecture and must be evaluated together with the associated termination arrangement and system configuration.

Typical Applications

• Oil & Gas — Emergency Shutdown (ESD): pressure transmitter inputs, shutdown contacts, and discrete actuator commands.
• Petrochemical — Process Safety: mixed analog and digital signals around process units and safety interlocks.
• Power Generation — Turbine Protection: equipment status, process measurements, and discrete protective commands.
• Process Industry — Burner Management: flame-related status, permissive signals, analog measurements, and shutdown logic.

Technical Pitfalls to Avoid

1. Do not treat the 3902AX as a 24-channel module.
   OEM Tricon CX documentation specifies 16 user-configurable points. Several commercial product pages publish conflicting channel counts. For a safety-system replacement, the OEM specification should win.
2. Check the point configuration before swapping hardware.
   Each point can be assigned to AI, AO, DI, or DO. The replacement therefore has to match the configured signal type, supervision requirements, and field termination arrangement—not merely the module part number.
3. Verify HART requirements separately.
   HART applies to configurable analog points. If the installed application uses intelligent transmitters or valve positioners, confirm that the intended point configuration preserves the required HART monitoring function.
4. Do not overlook termination compatibility.
   Tricon CX documentation lists 3902X/3902AX compatibility with specific termination panels and cables. A physically similar termination assembly is not automatically electrically equivalent.

Related Products

• TRICONEX 3902X — The closely related 16-point Universal I/O module. It shares the same basic UIO concept, with each point configurable as AI, AO, DI, or DO. The 3902AX is the appropriate selection when the AX variant is specified by the installed Tricon CX configuration.
• TRICONEX 3506X — 32-point, 24 VDC supervised digital input module. Use this when the application is primarily discrete input acquisition and higher DI density is more important than universal point configuration.
• TRICONEX 3626X — 32-point, 24 VDC supervised digital output module. It is suited to high-density discrete output applications rather than mixed AI/AO/DI/DO requirements.
• TRICONEX 3722X — 32-point analog input module for 0–5 VDC applications. It is a better fit when a large number of dedicated analog inputs are required.
• TRICONEX 3723X — 32-point HART-configurable analog input module. It provides higher analog-input density than the 3902AX and is intended for installations centered on analog measurement and HART-enabled instrumentation.
• TRICONEX 3809X — 16-point analog output module with HART capability. Use it when the application requires dedicated analog output rather than mixed universal I/O.
• TRICONEX 3809AX — 16-point HART-capable analog output module in the Tricon CX I/O family. It complements 3902AX installations where additional dedicated AO capacity is required.
• TRICONEX 3009X — Tricon CX main processor. Unlike the 3902AX, it performs the central safety-control processing and interfaces with the I/O architecture rather than directly serving as a field I/O module.
• TRICONEX 4355X — Tricon Communication Module used for system-level communications. It serves a different function from the 3902AX, which is responsible for field signal interfacing.

Procurement note: For a TRICONEX 3902AX replacement, verify four items before approving the part: 16-point configuration, AI/AO/DI/DO assignment, HART requirements, and termination hardware. Those checks matter more than physical appearance or a seller’s generic description.
