TRICONEX 3700 Product Description

Product Overview

TRICONEX 3700 is a 32-channel analog input module designed for the Tricon safety instrumented system (SIS). It belongs to the Tricon 3700 Series analog input family and uses a Triple Modular Redundant (TMR) architecture to acquire process signals with high availability and fault tolerance. The standard 3700 provides 32 differential, DC-coupled inputs with a 0–5 VDC input range, while the closely related 3700A adds approximately 6% input overrange capability.

The TRICONEX 3700 converts analog field signals into digital values and provides the resulting data to the Tricon main processors. Its three independent input channels support redundant signal processing and diagnostic comparison, helping the safety system identify abnormal channel behavior without relying on a single measurement path. The module also supports current inputs when used with the specified shunt resistor, making it suitable for common industrial transmitter signals.

For legacy TRICONEX installations, 3700 is particularly valuable in process measurement and safety applications where continuous analog monitoring is required. Its combination of 32-channel density, TMR architecture, diagnostics and hot-spare capability makes it appropriate for ESD, process protection and other high-integrity automation systems.

Technical Specifications

The published Tricon v9–v10 documentation specifies the 3700/3700A family as 32-channel differential analog input modules, with 12-bit resolution, 55 ms update rate and <0.15% FSR accuracy over 0–60°C.

Main Features and Advantages

Triple Modular Redundancy

The core advantage of TRICONEX 3700 is its TMR architecture. Each analog input is processed through three independent channels, allowing the safety system to compare redundant measurements and tolerate certain individual-channel faults without immediately losing the measurement function. This architecture is fundamental to Tricon’s high-availability safety design.

32-Channel Analog Acquisition

With 32 differential inputs in one module, 3700 provides high channel density for process instrumentation. It can acquire multiple transmitter and sensor signals without requiring a large number of separate I/O modules.

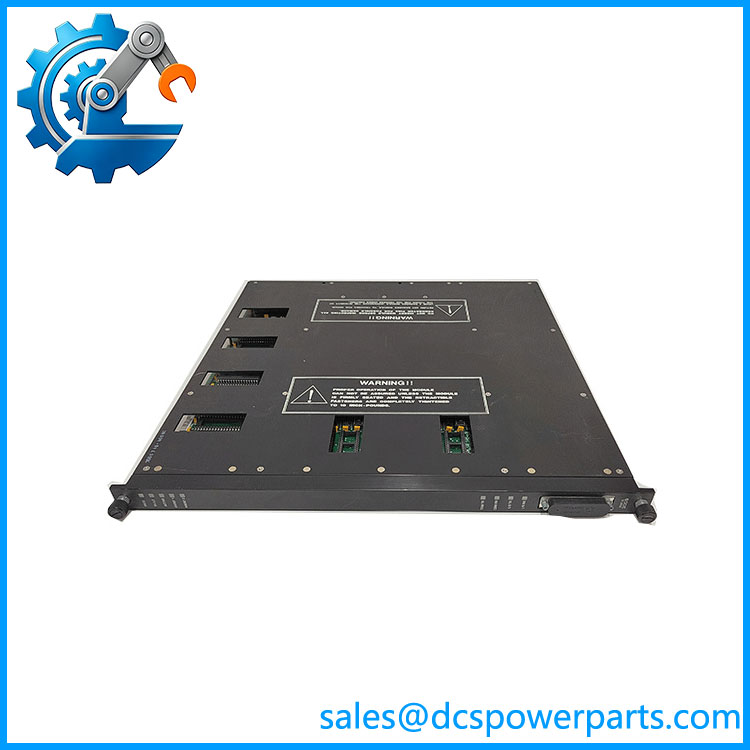

3700

12-Bit Resolution

The module provides 12-bit analog-to-digital resolution, giving the Tricon processor sufficiently granular measurement data for many process monitoring and protection functions. Its specified accuracy is below 0.15% of full scale from 0°C to 60°C.

Voltage and Current Signal Support

The 3700 accepts 0–5 VDC voltage signals and can accommodate 0–20 mA current signals through a 250 Ω shunt arrangement. This allows it to interface with a broad range of industrial transmitters and signal-conditioning equipment.

Continuous Diagnostics

The module performs ongoing channel-level diagnostics. A fault indication does not necessarily mean the entire module has failed; the published documentation notes that the module can continue operating with as many as two faulty channels.

Hot-Spare Capability

The 3700 supports hot-spare functionality, allowing an appropriately configured spare module to be used for online replacement of a faulty module. This is particularly important in process plants where shutting down the safety system for routine hardware replacement is undesirable.

Industrial Signal Protection

The specified 150 VDC / 115 VAC continuous input overvoltage protection provides additional protection against abnormal field conditions. Differential input architecture and common-mode rejection further improve signal integrity in electrically noisy industrial environments.

Application Fields

TRICONEX 3700 is primarily used for analog process measurement within Safety Instrumented Systems (SIS). It is suitable where pressure, temperature, level, flow and other continuously variable process parameters must be monitored by a fault-tolerant safety controller.

In oil and gas production, the module can acquire transmitter signals associated with separators, compressors, pipelines, pumps and process vessels. The redundant architecture allows critical measurements to remain available even when an individual sensing or input channel develops a fault.

In refineries and petrochemical plants, 3700 can be incorporated into emergency shutdown and process-protection systems for monitoring pressure, temperature, flow and other safety-related variables. Its 32-channel configuration is useful for large I/O cabinets containing numerous analog measurement points.

In chemical processing, the module can monitor reactor conditions, tank levels, feed rates and other continuously changing variables. Reliable analog acquisition is essential when the safety controller must initiate protective action based on predefined process limits.

The module is also applicable to power generation, LNG, offshore platforms, pipelines, pulp and paper, and other high-hazard industrial facilities. Its TMR architecture, diagnostics and hot-spare capability make it particularly suitable for installations where I/O availability and fault detection are more important than simple conventional analog acquisition.

For replacement work, engineers should distinguish 3700 from 3700A: both are 32-channel, 0–5 V TMR analog input modules, but the 3700A specifically provides input overrange measurement up to approximately 5.3 V.
